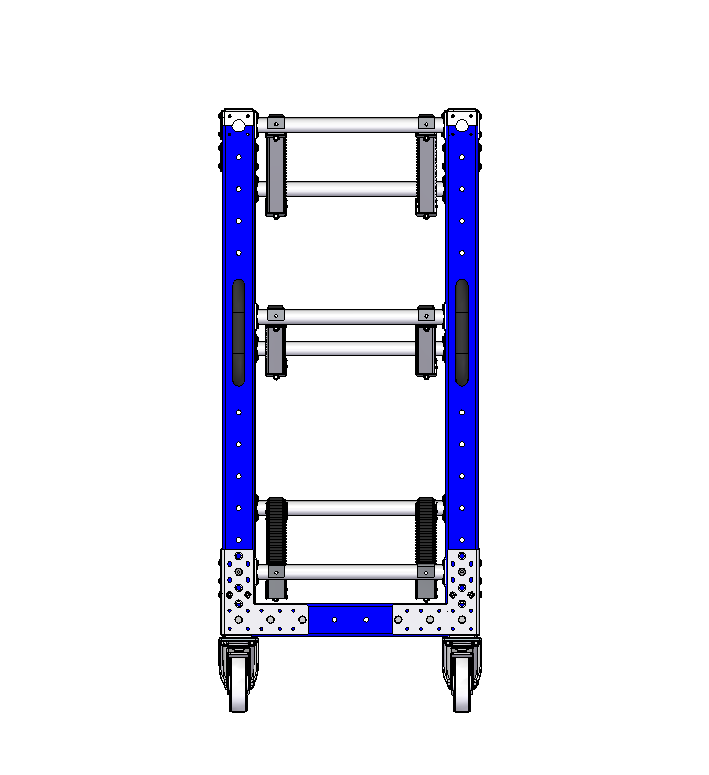

Flow Rack Trolley 1680 x 560 mm
Flow Rack Trolley 1680 x 560 mm
Flow Rack Trolley 1680 x 560 mm
Flow Rack Trolley 1680 x 560 mm
Q-100-0209

Flow Rack Trolley 1680 x 560 mm

Specially designed flow rack for presenting materials to operators.

Technical specifications

Category: Flow Rack

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 50 inch

Levels: 4

Load capacity: 331 lbs

Load Capacity per Level: 110 lbs

Width: 22 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyamide

More info

This flow rack is equipped three roller shelves. The top two are used for presenting totes, bins and boxes. The lower shelf is used as a return shelf. This cart comes with four high quality polyamide casters, two of which are fixed for improved tracking.

Parts included
FlexTube™ 420 mm 6 Q-000-1270
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexPlate™ 6 Q-002-1001
RollerTrax Attachment 6 Q-003-0001
RollerTrax Attachment Drop Stop - 20 mm 6 Q-003-0002
Roller rail - 1558 mm 4 Q-003-0003
Roller rails - 1584 mm 2 Q-003-0004
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm Fixed 2 Q-004-1354
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex head fully threaded - M8 x 25 mm 4 Q-006-0014
Locking Nut M10 40 Q-006-1042
Locking Nut M6 12 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Hex Head - M10 x 90 mm 16 Q-006-1132
M8 Washer 4 Q-006-1183
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 120 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
