Flow Shelf Cart - 1050 x 1190 mm
Flow Shelf Cart - 1050 x 1190 mm
Flow Shelf Cart - 1050 x 1190 mm
Q-100-1886

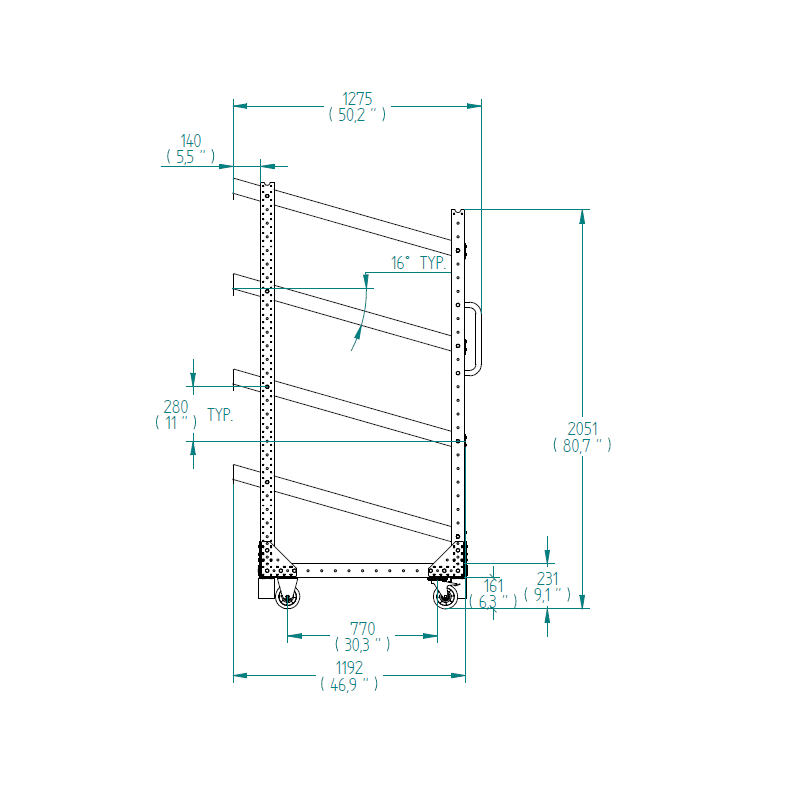

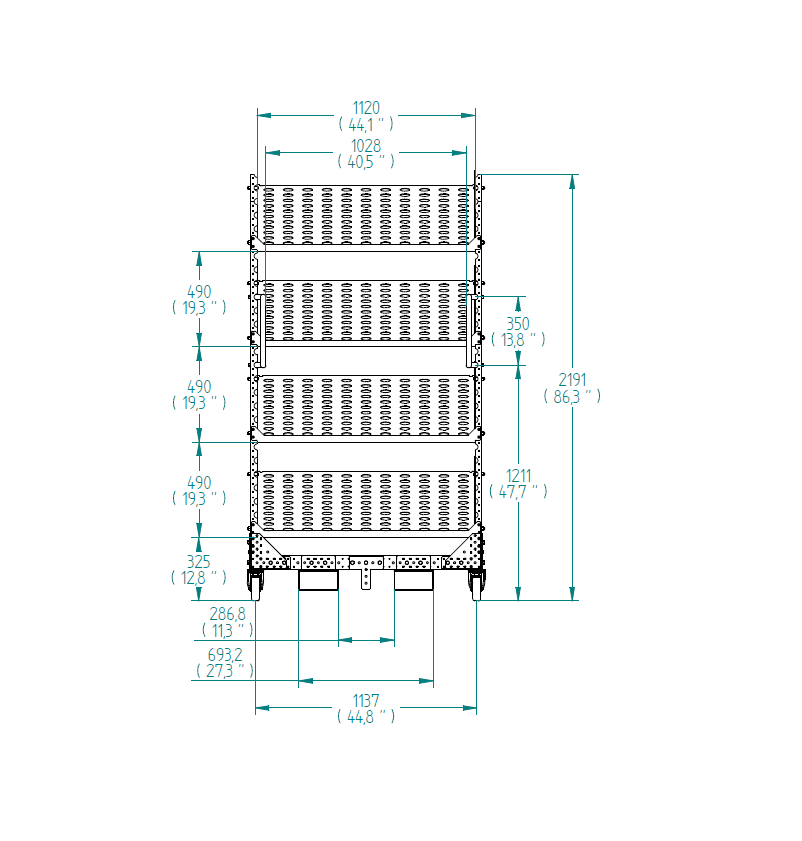

Flow Shelf Cart - 1050 x 1190 mm

Four level flow shelf cart equipped with handlebars, fork pockets, four polyurethane casters and an order picker attachment.

Technical specifications

Transportation method: Manual, Order Picker

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 41 inch

Length: 47 inch

Levels: 4

Load capacity: 992 lbs

Load Capacity per Level: 198 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

Four-level flow shelf cart equipped with handlebars, fork pockets, and an order picker attachment. To reduce the weight of the cart holes are punched into the shelves. The cart is also equipped with four polyurethane casters, two swivel with brakes, and two fixed making it easy to maneuver.

Parts included
FlexBeam STS - 1820 mm 2 Q-001-1291
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 4 Q-002-1162
FlexPlate™ half 2 Q-002-1369
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Collet - 35 mm 16 Q-005-0028
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
Triangle Joint 8 Q-005-0483
Ergonomic Handle Black 2 Q-005-1248
64 mm FlexBeam™ Collet 26 Q-005-1426
Dome Nut - M10 16 Q-006-0045
M10 x 50 mm - Round Head 16 Q-006-0050
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 38 Q-006-1042
M6 Washer 4 Q-006-1076
Hex Head - M10 x 95 mm 14 Q-006-1088
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Self Tapping Screw M6 Torx H60 x 16 58 Q-006-1384
Flow Shelf - 1120 x 1190 mm 4 Q-016-1280
FlexBeam™ - 1120 mm 4 Q-020-1120
