Q-007-3035

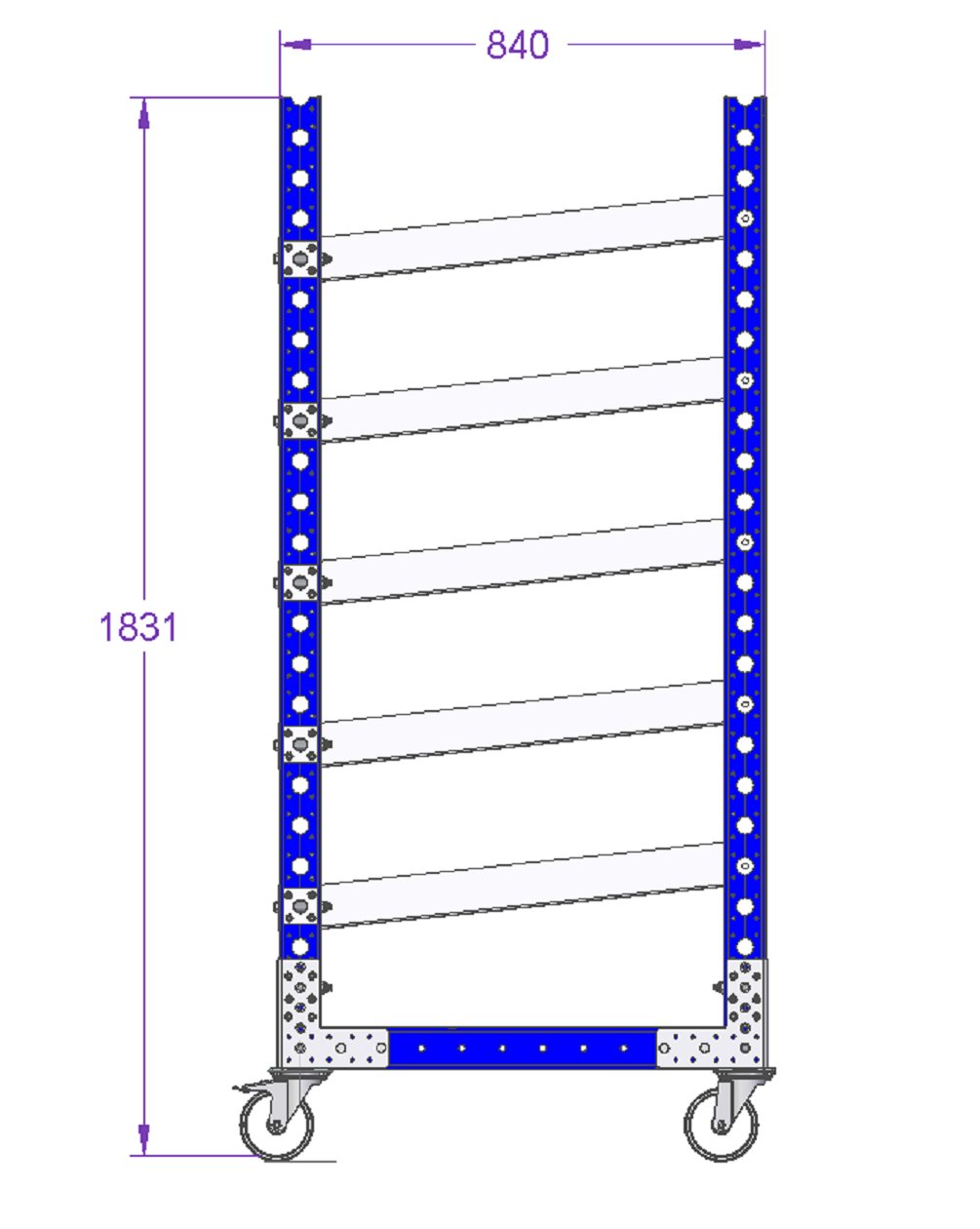

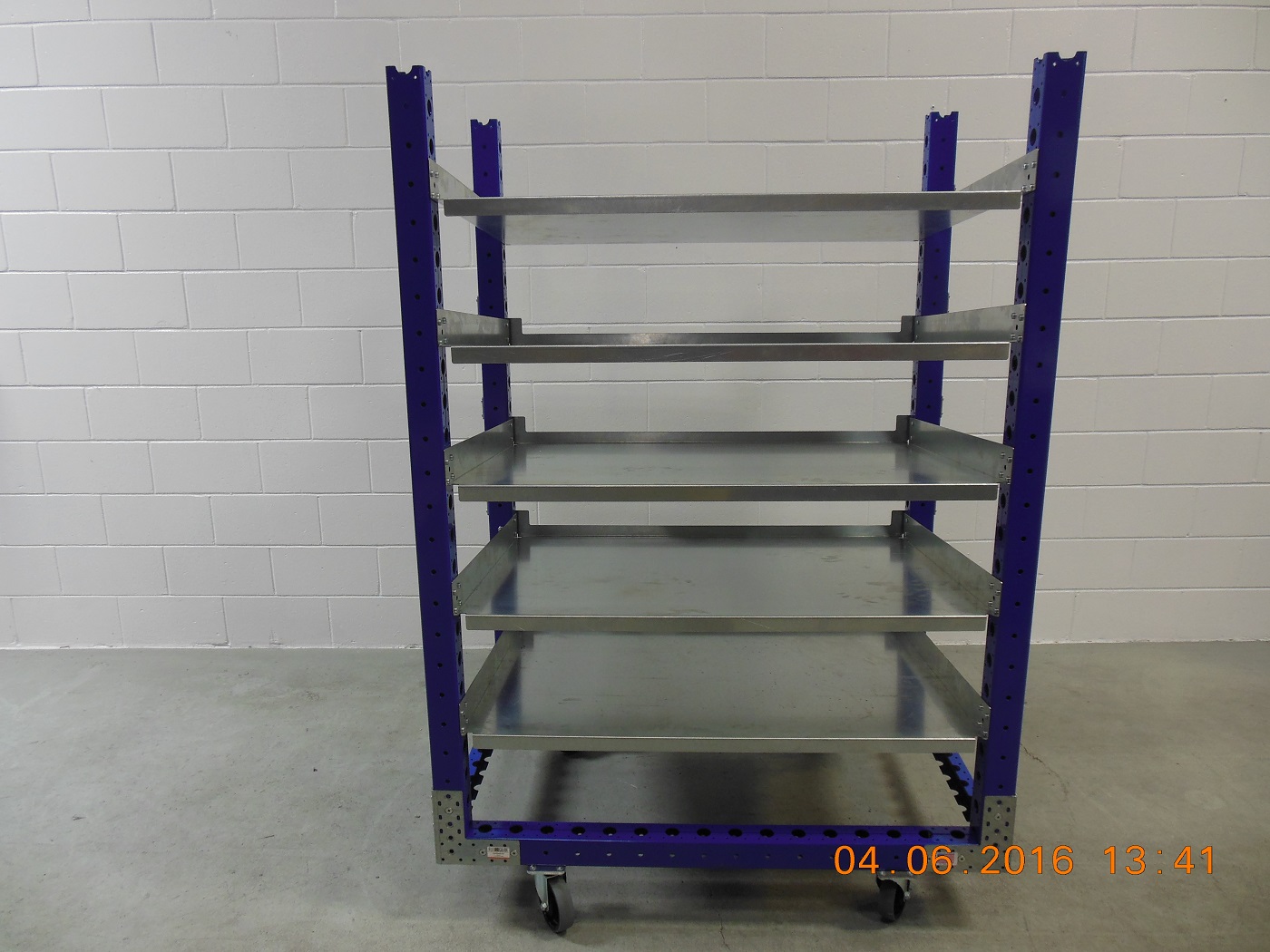

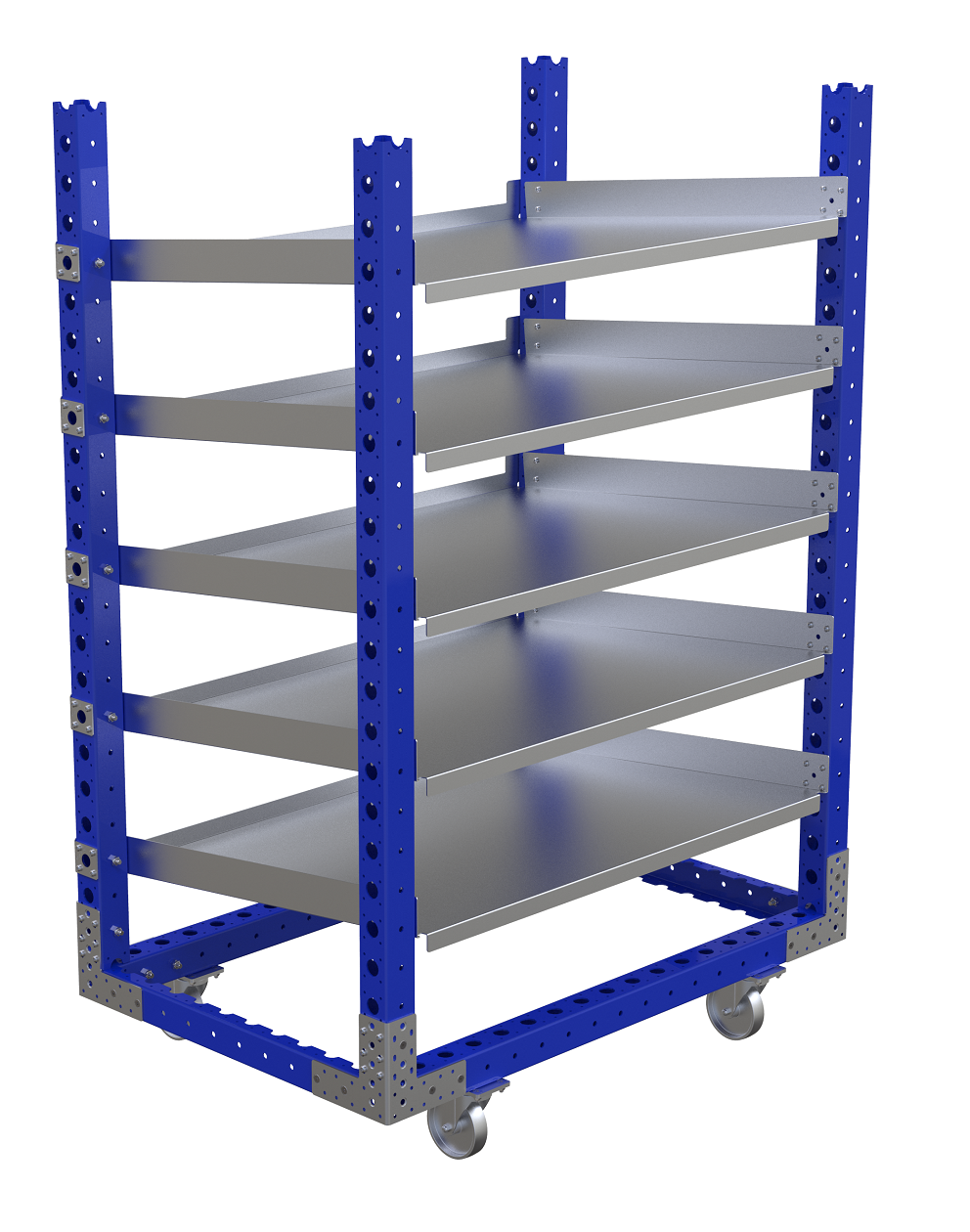

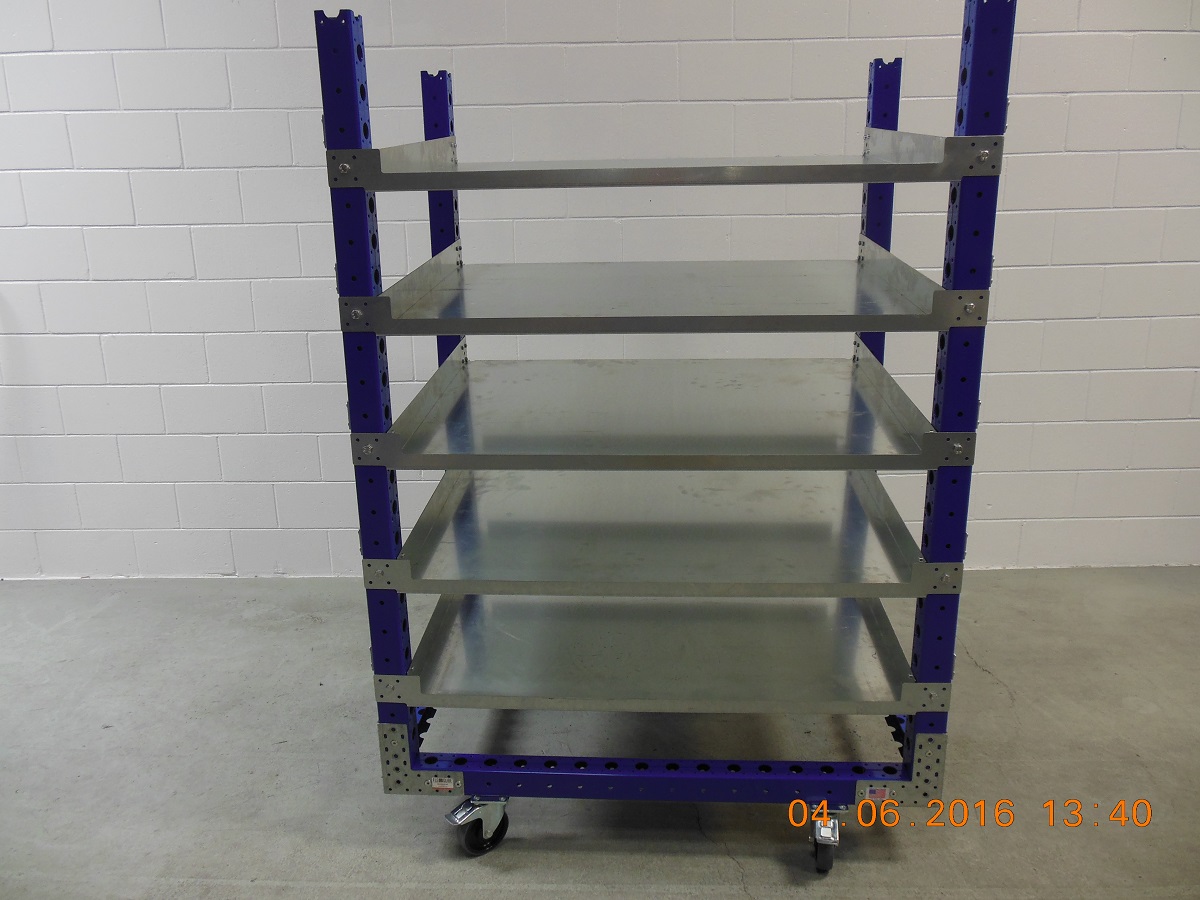

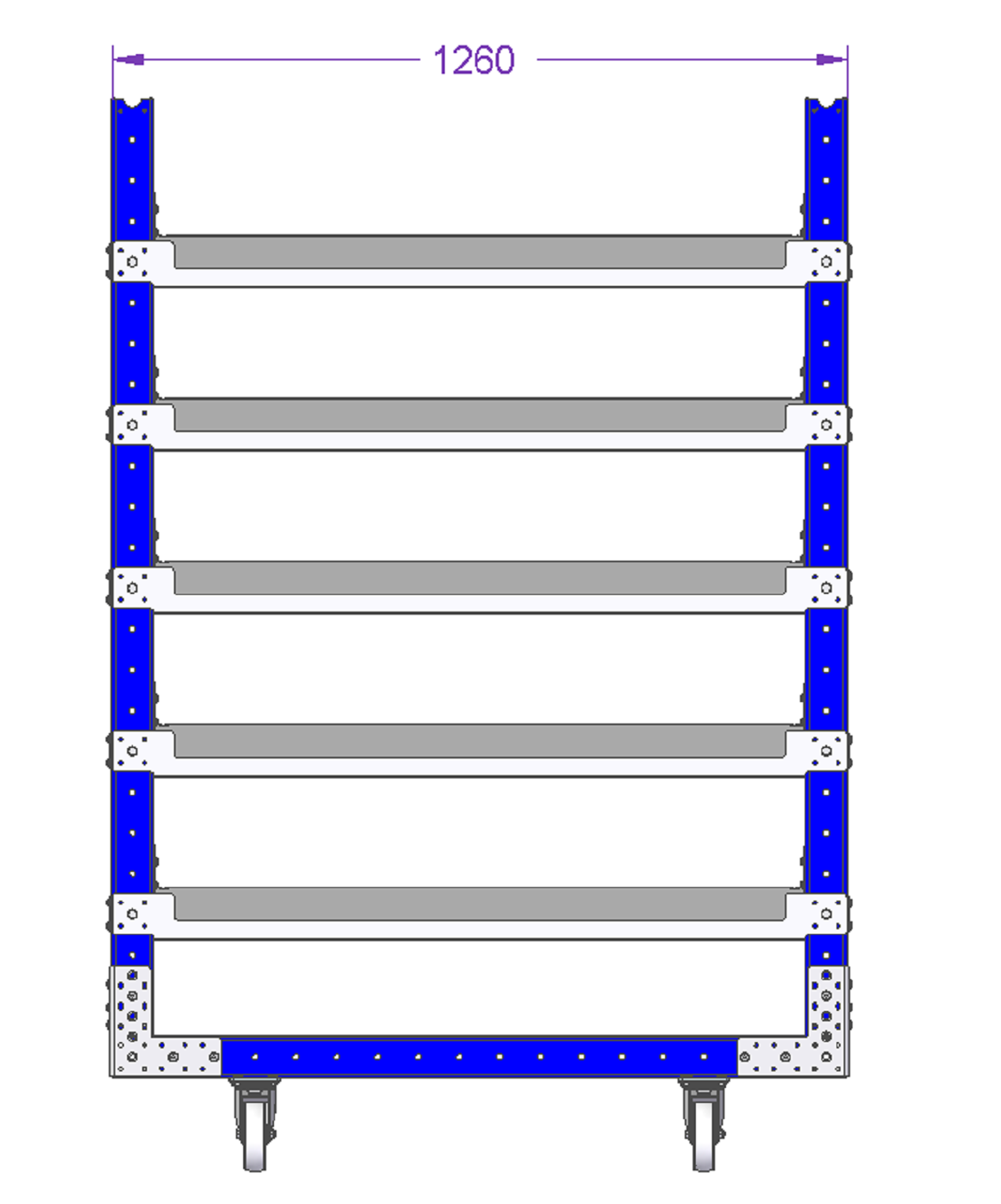

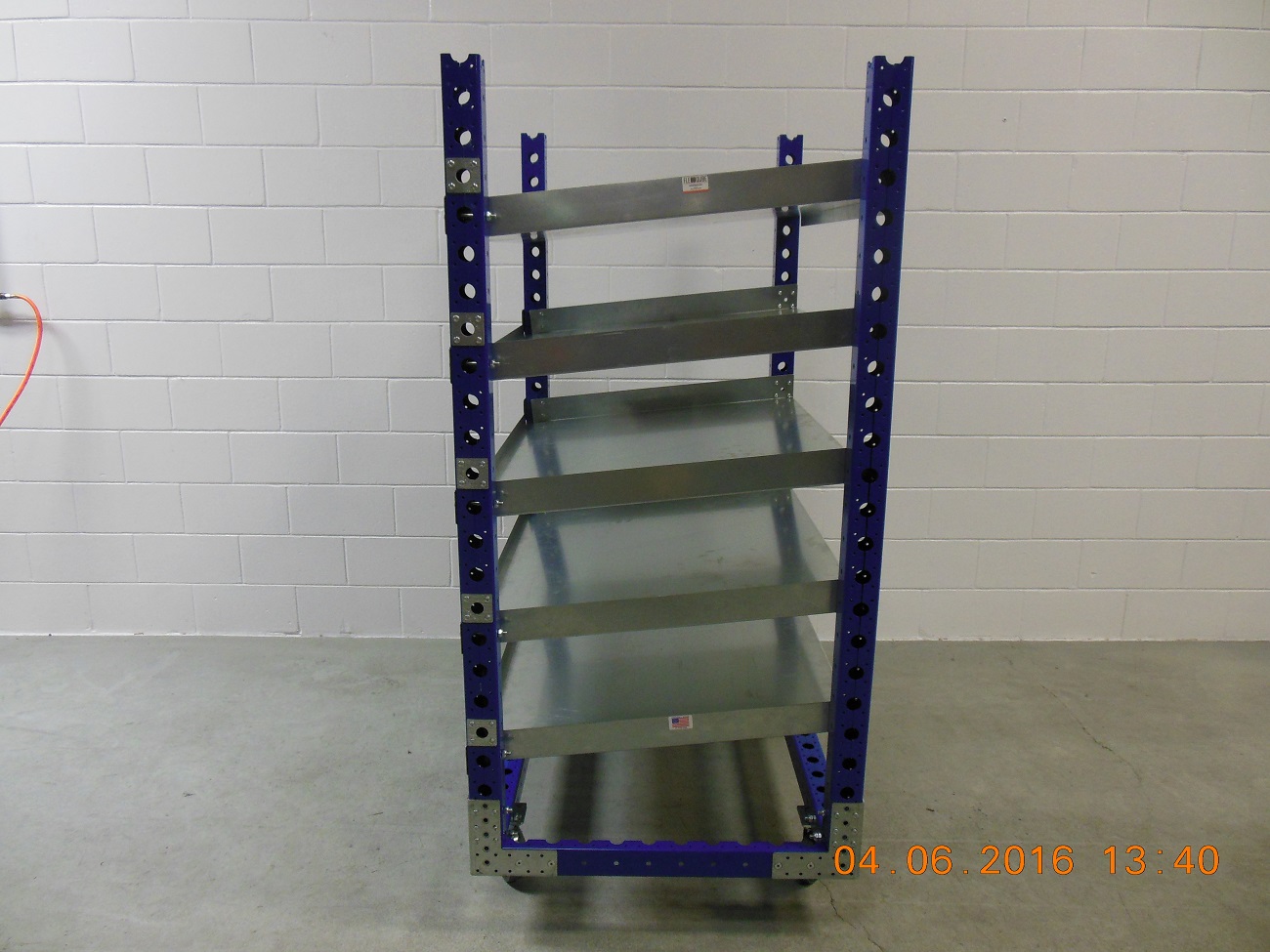

Flow Shelf Cart 1260 x 840 mm

Flow shelf cart with five flow shelves equipped.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Width: 33 inch

Load capacity: 551 lbs

Caster size: 5 inch

Caster Type: Polyamide

More info

This flow shelf cart was designed to improve the presentating of materials to the operators. The shelves are equipped to transport and store totes, bins and boxes. The height of the shelves can be easily adjusted higher or lower depending on your materials.

Parts included

FlexBeam™ - 1610 mm 8 Q-001-1294

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 840 mm FE 2 Q-001-1405

FlexPlate™ 10 Q-002-1001

Swivel Caster - 125 mm 2 Q-004-1363

125 mm Swivel Caster with Brake 2 Q-004-1364

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 10 Q-005-1426

Wheel Attachment - 80 x 60 mm 4 Q-005-1722

Locking Nut M10 30 Q-006-1042

Hex Head - M10 x 90 mm 10 Q-006-1132

Locking Nut M8 16 Q-006-1181

Extra Low Head - M10 x 90 mm 12 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 124 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410

Flow Shelf - 1048 x 843 mm 5 Q-016-1029

M8 x 16 mm Countersunk 16 Q-006-1214
