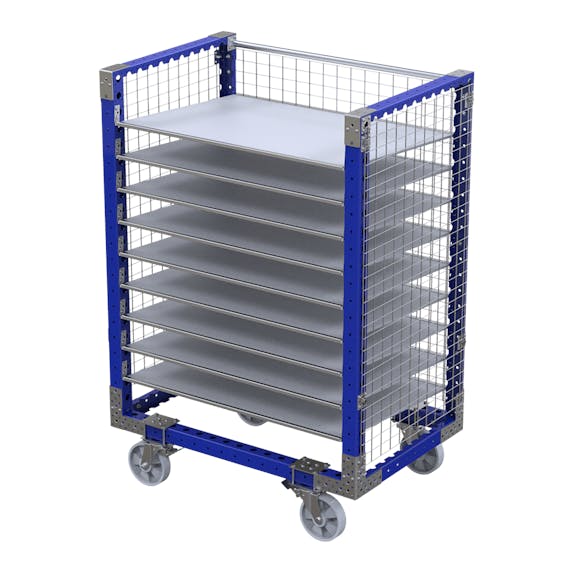

Flow Shelf Cart -1260 x 840 mm
Q-100-0469

Flow Shelf Cart -1260 x 840 mm

Custom designed shelf cart with attached wire mesh.

Technical specifications

Category: Flow Shelf

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Width: 33 inch

Length: 50 inch

Levels: 9

Load capacity: 661 lbs

Load Capacity per Level: 75 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flow shelf cart was designed to transport totes, bins, and boxes. The shelves on this cart can be easily adjusted higher or lower depending on your materials. The wire mesh around the outside is to ensure the materials don’t fall off the cart. This cart comes equipped with four polyamide casters for easier handling.

Parts included
FlexTube™ 1120 mm 1 Q-000-1258
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexPlate™ 6 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 8 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Wire Mesh - 1210 x 1400 mm 1 Q-005-0247
Wire Mesh - 790 x 1400 mm 2 Q-005-0248
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 10 Q-005-1426
Washer 10,5 x 30 x 2,5 14 Q-006-1030
Hex Head - M10 x 25 mm 14 Q-006-1041
Locking Nut M10 66 Q-006-1042
Hex Head - M10 x 90 mm 16 Q-006-1132
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 176 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
Flat shelf - 1113 x 835 mm 9 Q-016-0211
Attach Plate Akyboard - 1120 mm 18 Q-016-0219
