Frame - 4200 x 2030 mm
Frame - 4200 x 2030 mm
Frame - 4200 x 2030 mm
Frame - 4200 x 2030 mm
Q-100-0863

Frame - 4200 x 2030 mm

Custom designed frame for storing unused carts.

Technical specifications

Industry: Appliances & Electronics, Distribution, Medical Equipment

Transportation method: Manual

Length: 165 inch

More info

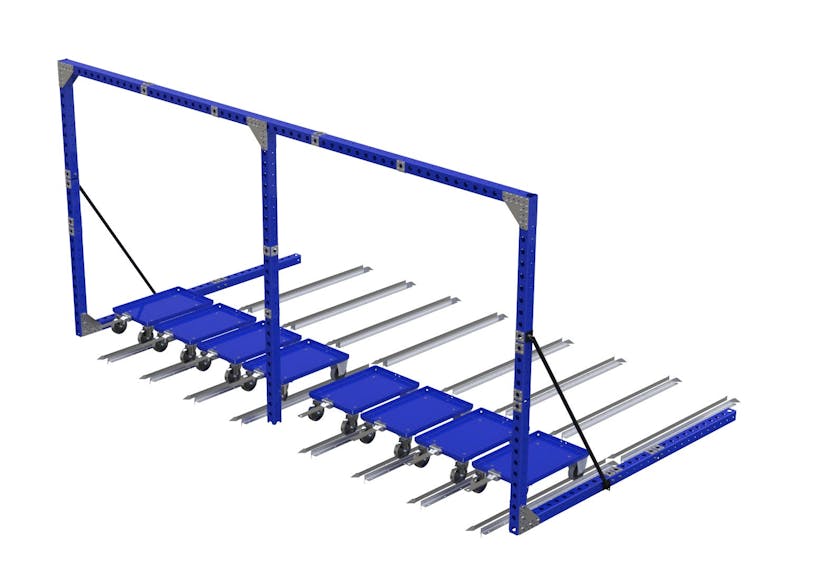

Frame designed to store unused carts and make it easy for drop off & pick up. This can be adjusted for the size of your carts and also your personalized overall size that you need.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm 2 Q-001-1300
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 770 mm 2 Q-001-1306
FlexBeam™ 1190 mm FE 4 Q-001-1400
FlexBeam™ 840 mm FE 6 Q-001-1405
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 42 Q-002-1001
Triangle Joint 9 Q-005-0483
64 mm FlexBeam™ Collet 20 Q-005-1426
Locking Nut M10 22 Q-006-1042
Hex Head - M10 x 95 mm 10 Q-006-1088
Hex Head - M10 x 90 mm 12 Q-006-1132
Self Tapping Screw M6 Torx H60 x 16 254 Q-006-1384
Diagonal Handlebar Right 1 Q-015-0079
Diagonal Handlebar Left 1 Q-015-0080
