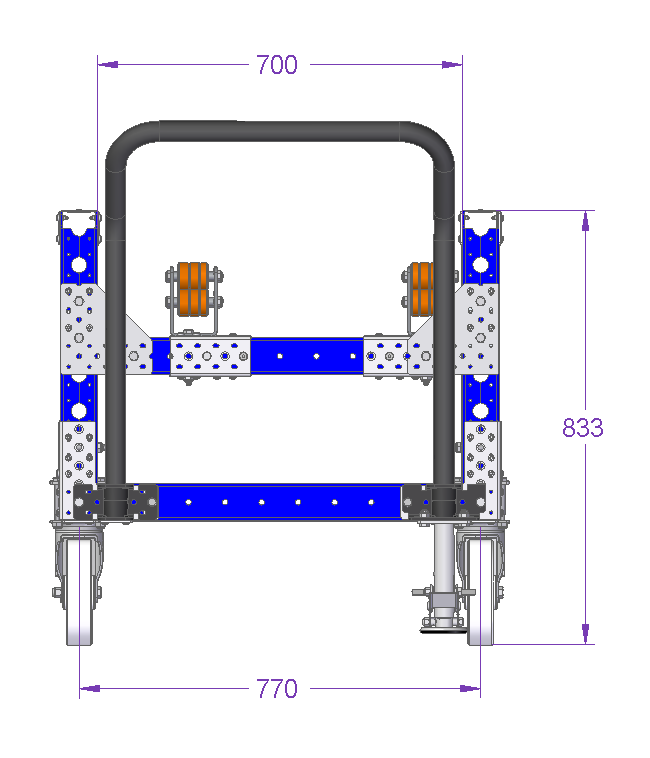

Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Gearbox Prep Cart - 840 x 1260 mm
Q-100-0594

Kit cart – 840 x 1330 mm

Custom-designed cart for transporting gearboxes.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 52 inch

Load capacity: 1499 lbs

Width: 33 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

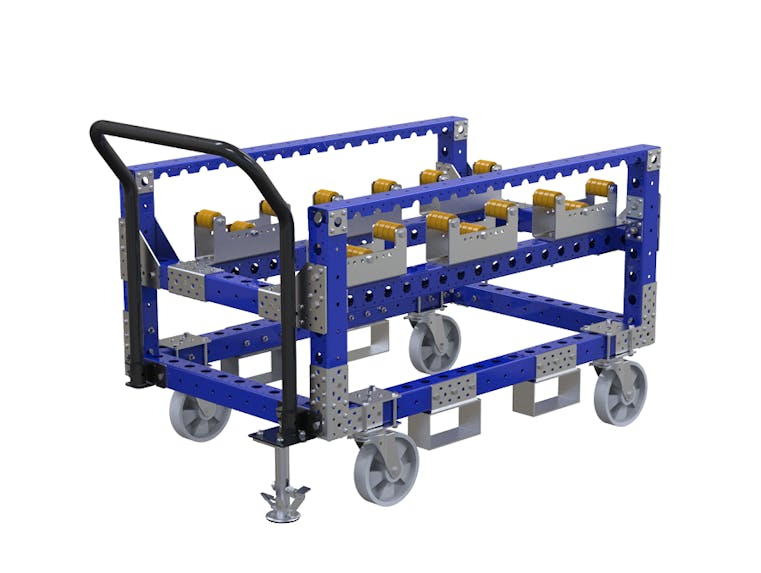

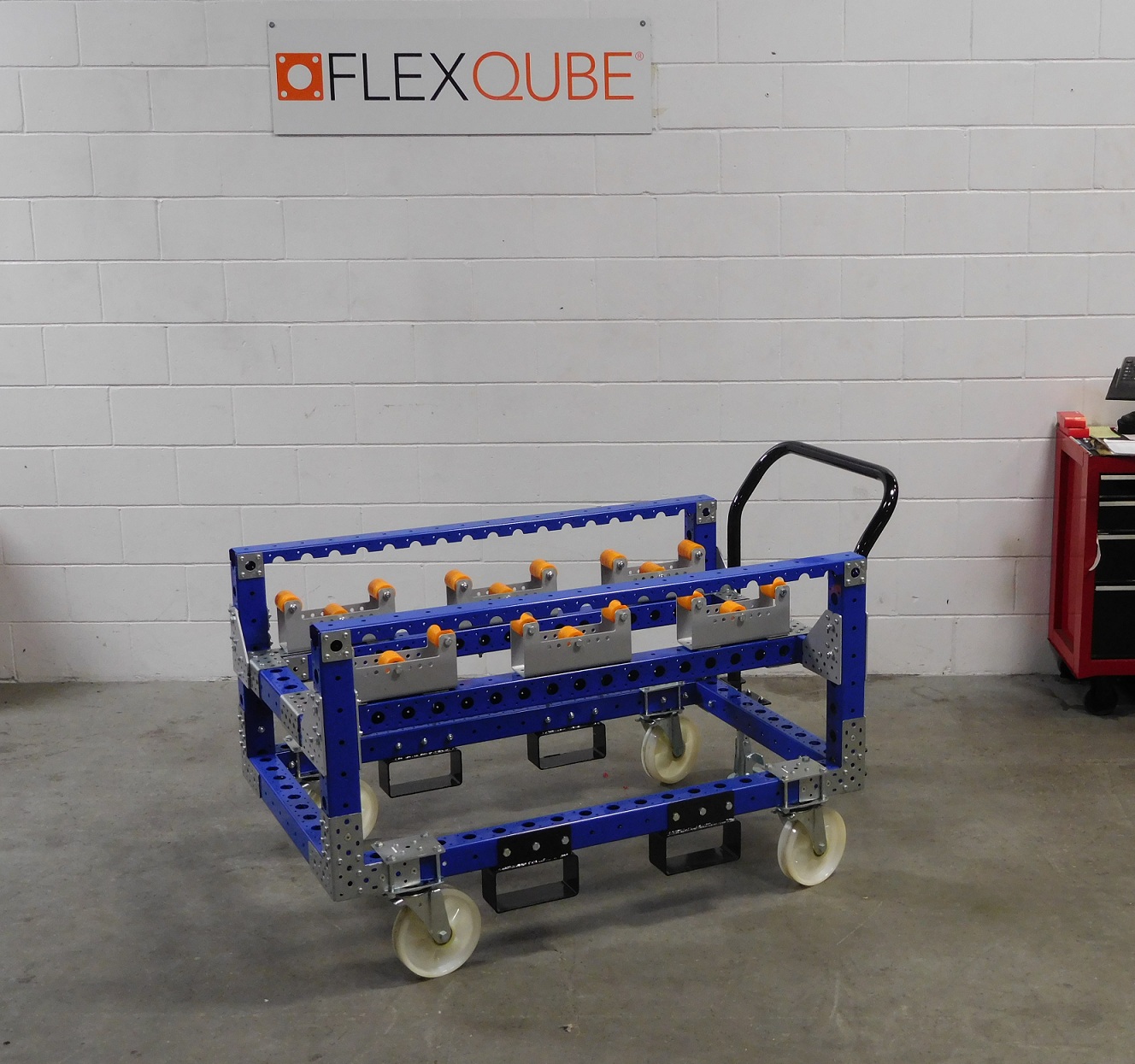

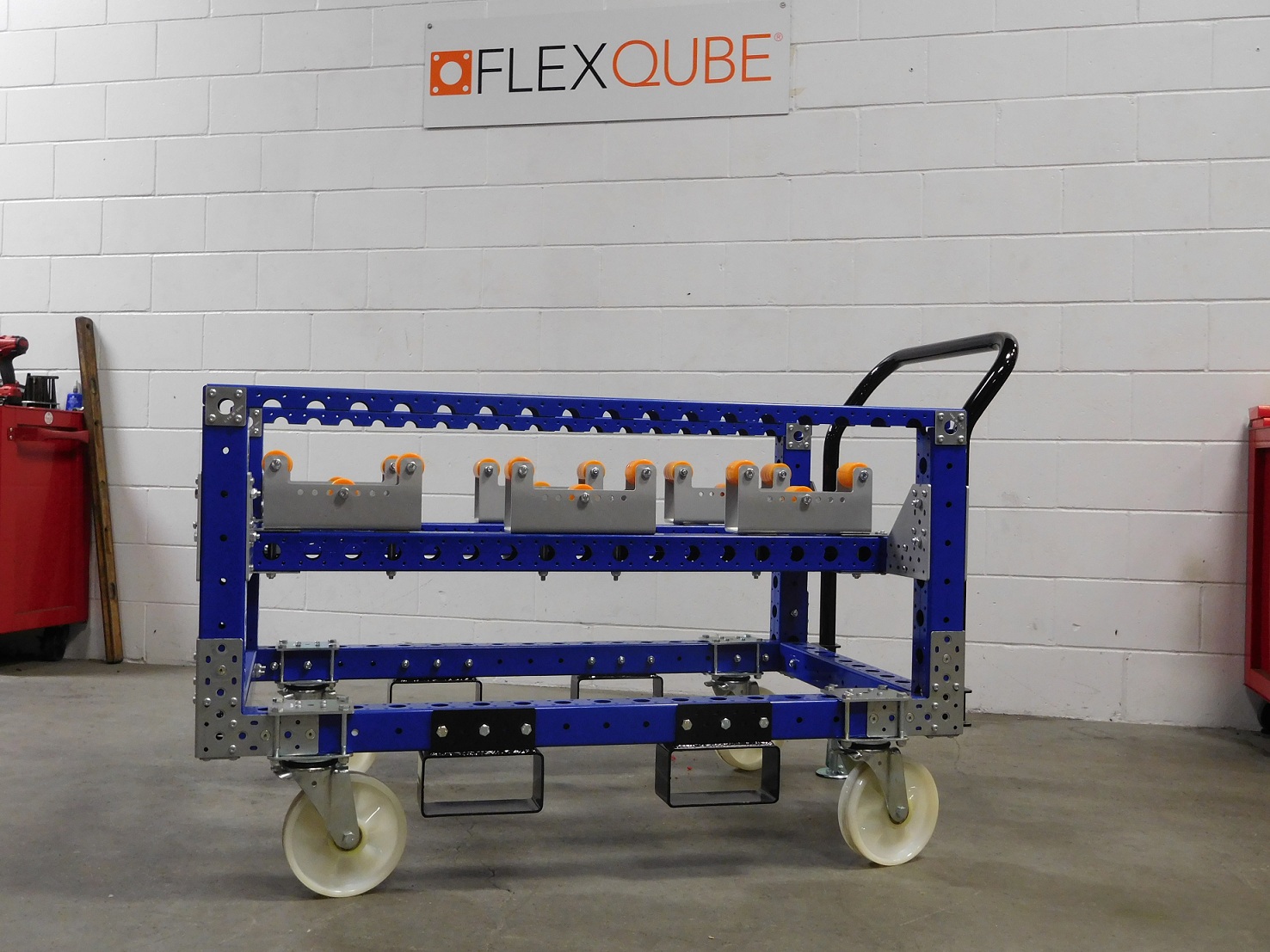

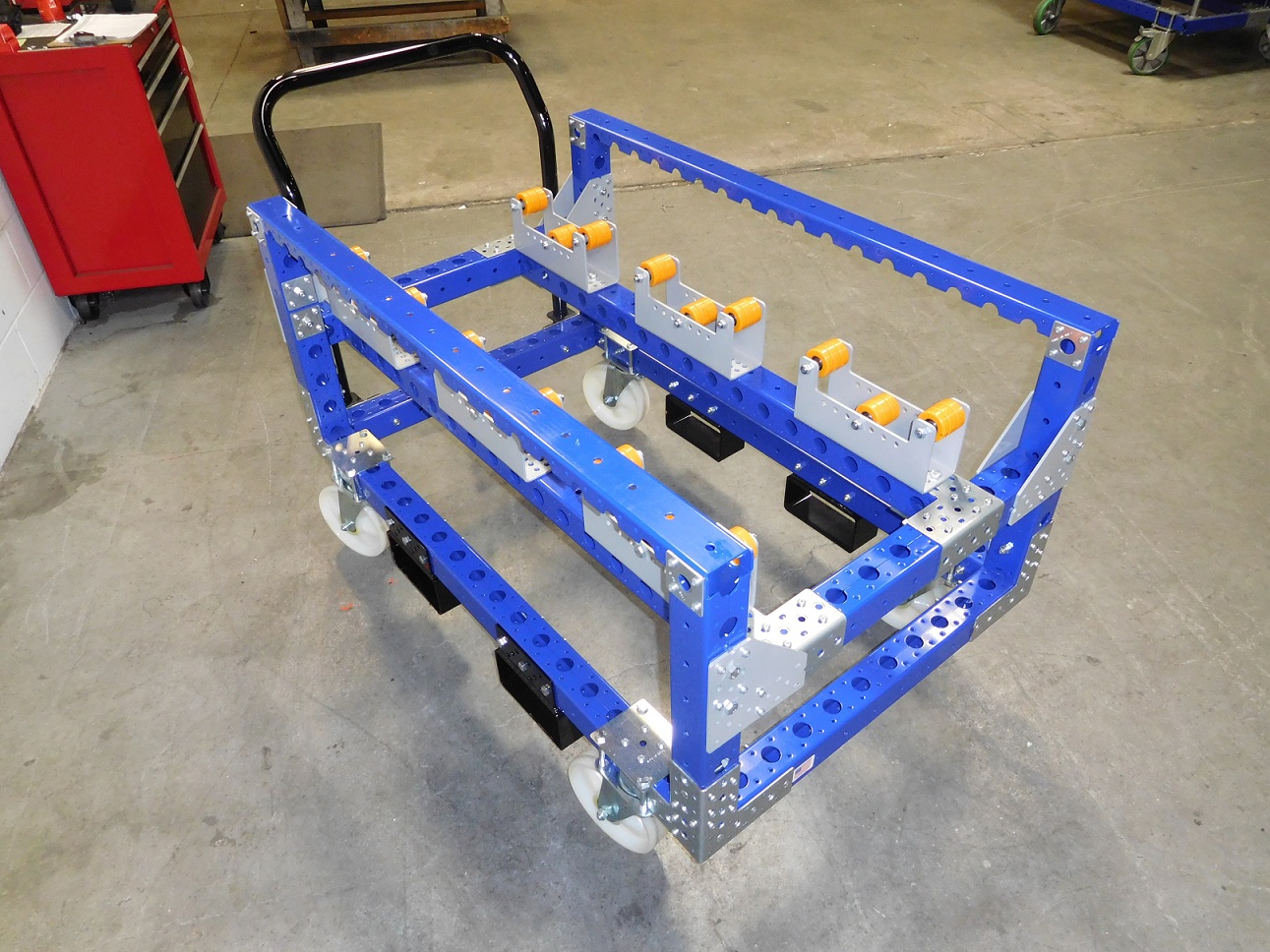

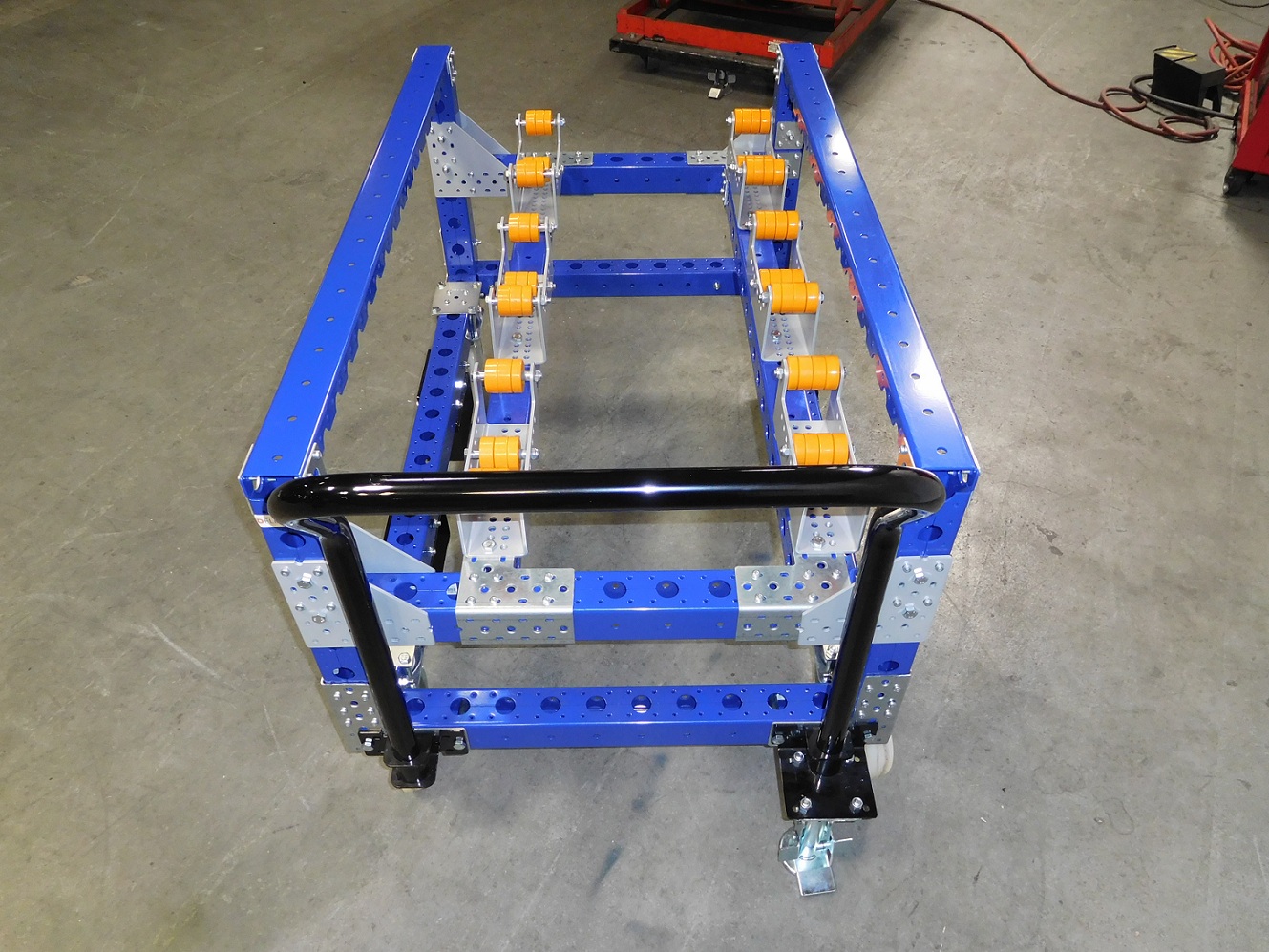

This cart is used to transport and prepare gearboxes or other large cylindrical objects for kitting. The rollers are made of polyurethane to not damage or scratch the parts. The cart is also equipped with four nylon swivel casters, a removable handlebar as well as a floor friction brake for smooth manual transportation.

Parts included
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 700 mm 4 Q-001-1307
FlexBeam™ 490 mm 8 Q-001-1310
FlexBeam™ 1190 mm FE 4 Q-001-1400
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexPlate™ 16 Q-002-1001
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 2 Q-002-1369
Guide Wheel 45 Q-004-0042
Guide Wheel 18 Q-004-0043
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
US Floor Brake - 200 mm 1 Q-004-1613
Fork Tunnel US - 80 mm 4 Q-005-0431
Multi Level Roller Rail - 275 mm 6 Q-005-0445
Triangle Joint 6 Q-005-0483
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 34 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
M10 Collet - 15 mm 18 Q-006-0027
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 102 Q-006-1042
Hex Head - M10 x 95 mm 24 Q-006-1088
Hex Head - M10 x 90 mm 30 Q-006-1132
Hex Head - M10 x 100 mm 18 Q-006-1302
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 228 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
