Hanging cart-1120 X 980 mm
Hanging cart-1120 X 980 mm
Hanging cart-1120 X 980 mm
Hanging cart-1120 X 980 mm
Q-100-0631

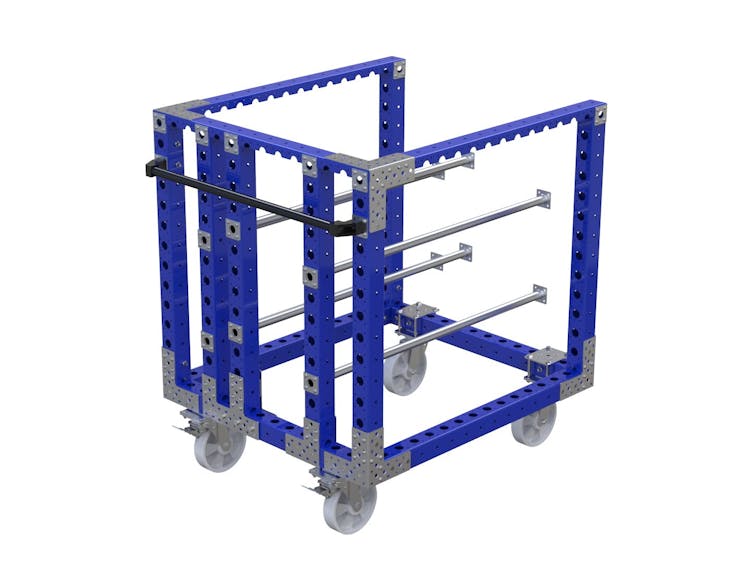

Hanging cart-1120 X 980 mm

Specially designed hanging cart for hanging materials.

Technical specifications

Category: Hanging Carts

Industry: Appliances & Electronics, Automotive, Defense Equipment, Distribution, Industrial Machinery

Width: 39 inch

Length: 44 inch

Load capacity: 176 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This custom kit cart was designed to improve the presentation and transportation of different hanging materials. The setup of the hangers can be adjusted to match your materials. This cart also has a handlebar to make it easier to push the carts.

Parts included
Outer Tube (No Plate) - 870 mm 1 Q-000-0101
FlexTube™ 1120 mm 6 Q-000-1258
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 910 mm 14 Q-001-1304
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 980 mm FE 3 Q-001-1403
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 6 Q-002-1162
Flexplate™ 30,5 mm hole 6 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 6 Q-004-1065
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
T-Joint 2 Q-005-0065
Handle for 30 mm Tube 2 Q-005-1240
Beam to Beam Corner Plate 6 Q-005-1356
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Locking Nut M10 56 Q-006-1042
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 100 mm 8 Q-006-1302
Extra low head [1,5 mm] M10x40 mm 2 Q-006-1361
Extra Low Head - M10 x 90 mm 27 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 210 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 18 Q-006-1410
