Hose Cart - 770 x 1050 mm
Hose Cart - 770 x 1050 mm
Hose Cart - 770 x 1050 mm
Hose Cart - 770 x 1050 mm
Hose Cart - 770 x 1050 mm
Q-100-0626

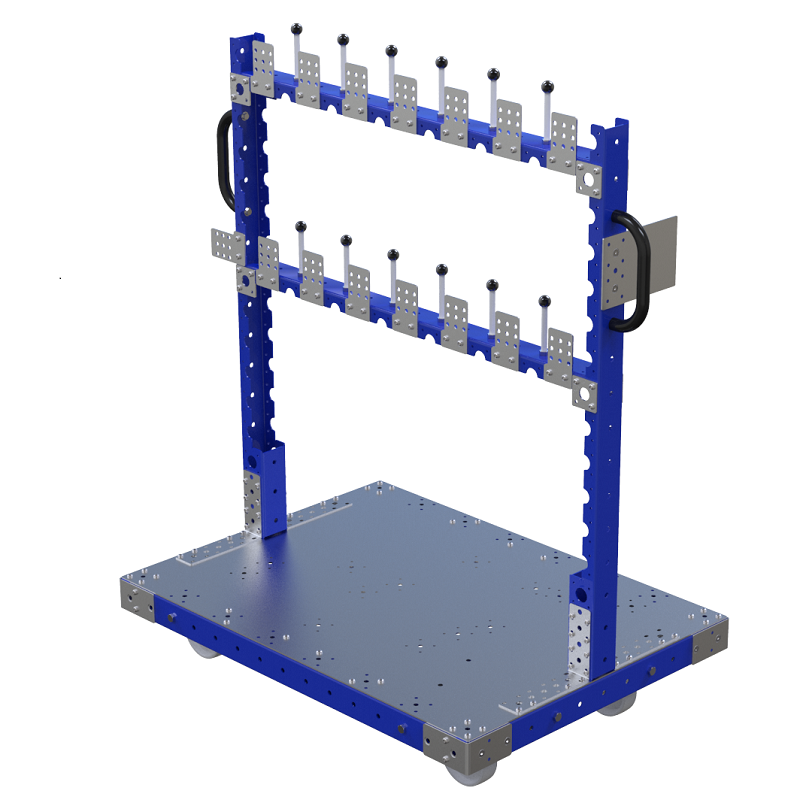

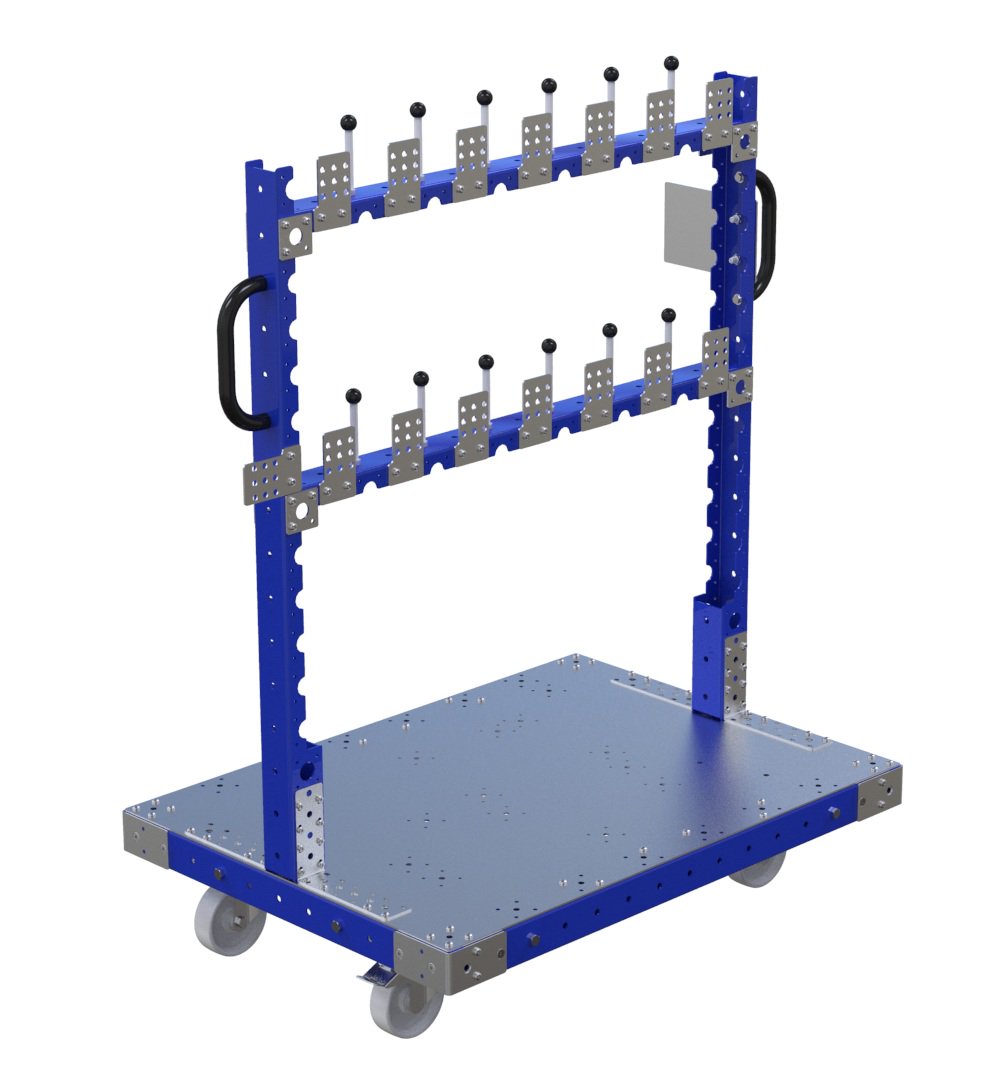

Hose Cart - 770 x 1050 mm

Custom hose cart used for hanging materials.

Technical specifications

Category: Flat Deck, Hanging Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

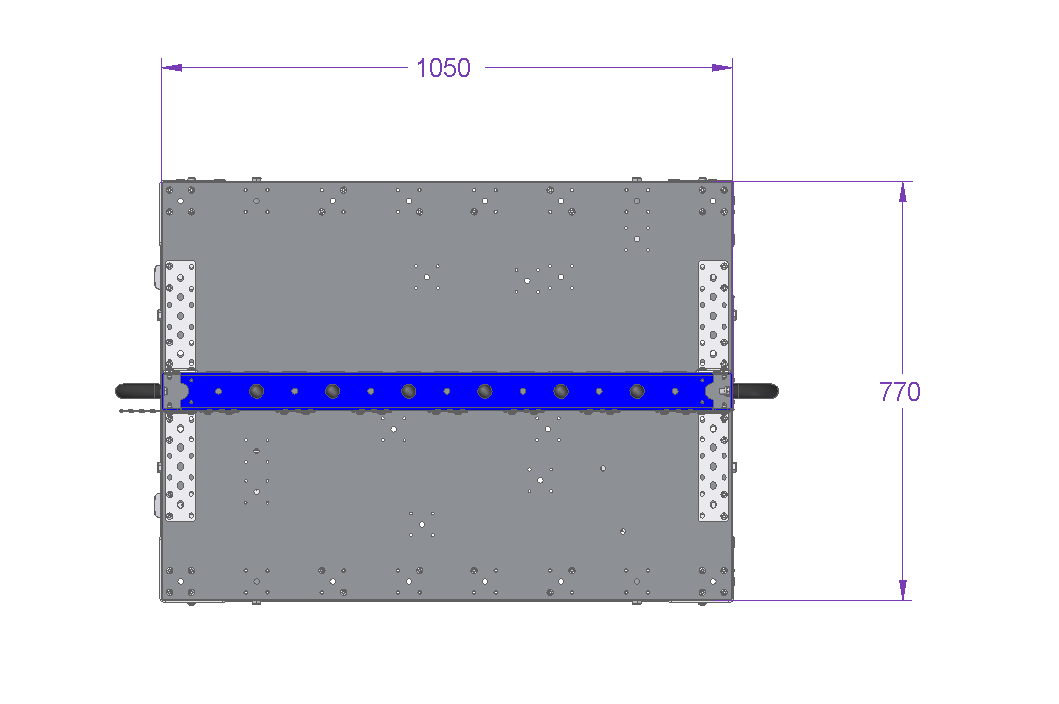

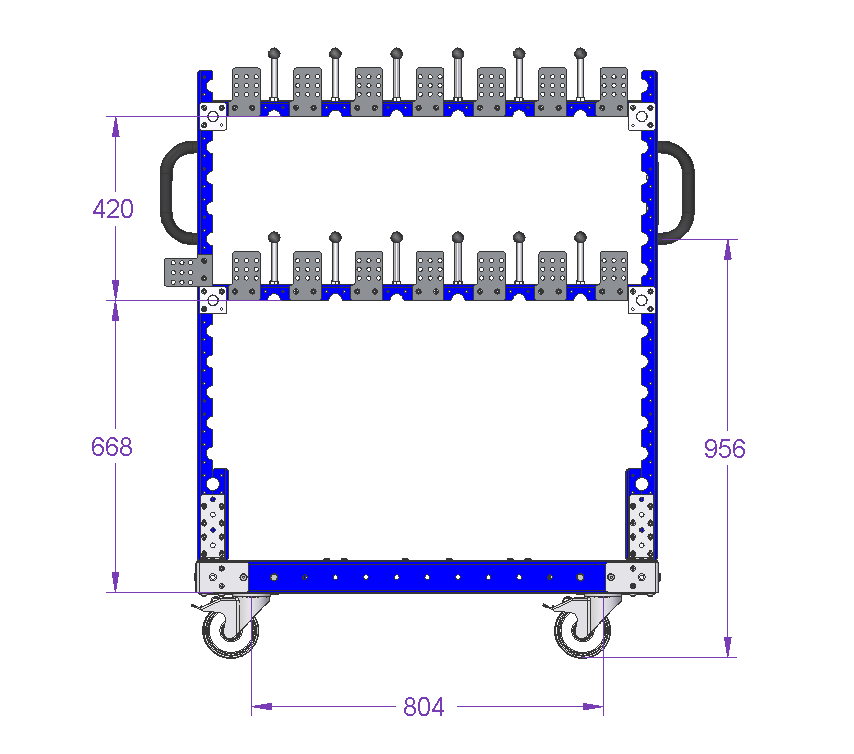

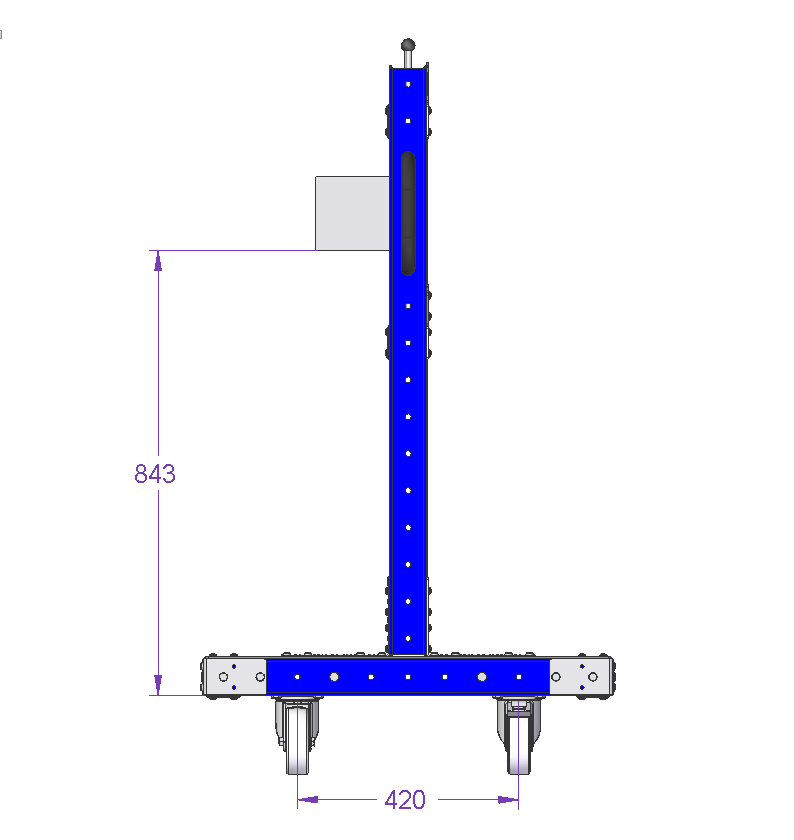

Length: 41 inch

Width: 30 inch

Levels: 2

Load capacity: 661 lbs

Load Capacity per Level: 176 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Nylon, Polyamide

More info

This cart was specially designed to hang lighter hoses, but can also hang other materials such as ropes, wires and chains. It is equipped with four polyamide casters (two have brakes). It also comes with two handles for easier moving around.

Parts included
Plastic tube - 16 mm 12 Q-000-0050
FlexBeam™ 980 mm 6 Q-001-1303
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 210 mm FE 2 Q-001-1414
FlexPlate™ 12 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Polyamide Caster - 125 mm 2 Q-004-1356
Polyamide Caster 125 mm with brake 2 Q-004-1357
L Bracket Joint 4 Q-005-0031
Label Plate - A5 1 Q-005-0387
Hanger Plate 15 Q-005-0427
Wheel Attachment Box 4 Q-005-1079
Spherical Knob 12 Q-005-1146
64 mm FlexBeam™ Collet 8 Q-005-1426
Fully Threaded - M10 x 120 mm 12 Q-006-1037
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 46 Q-006-1042
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 4 Q-006-1132
M8 Washer 4 Q-006-1183
Nut M10 24 Q-006-1195
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 154 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Top plate flat Kitting - 840 x 1050 mm 1 Q-016-0176
