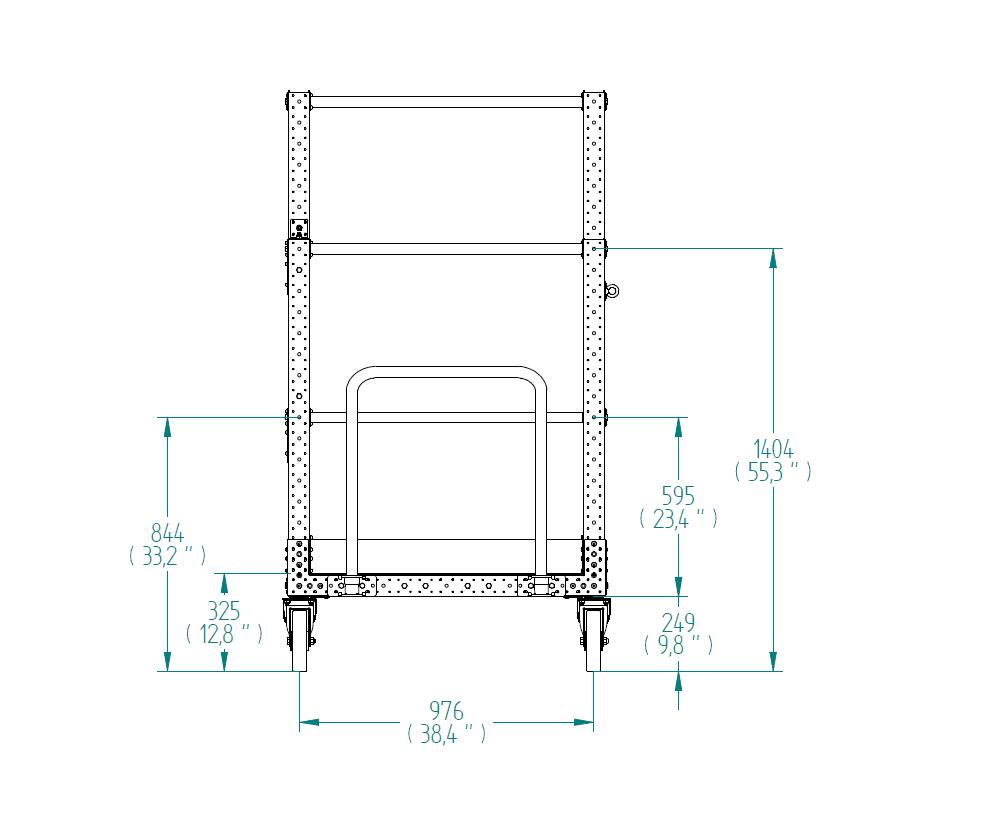

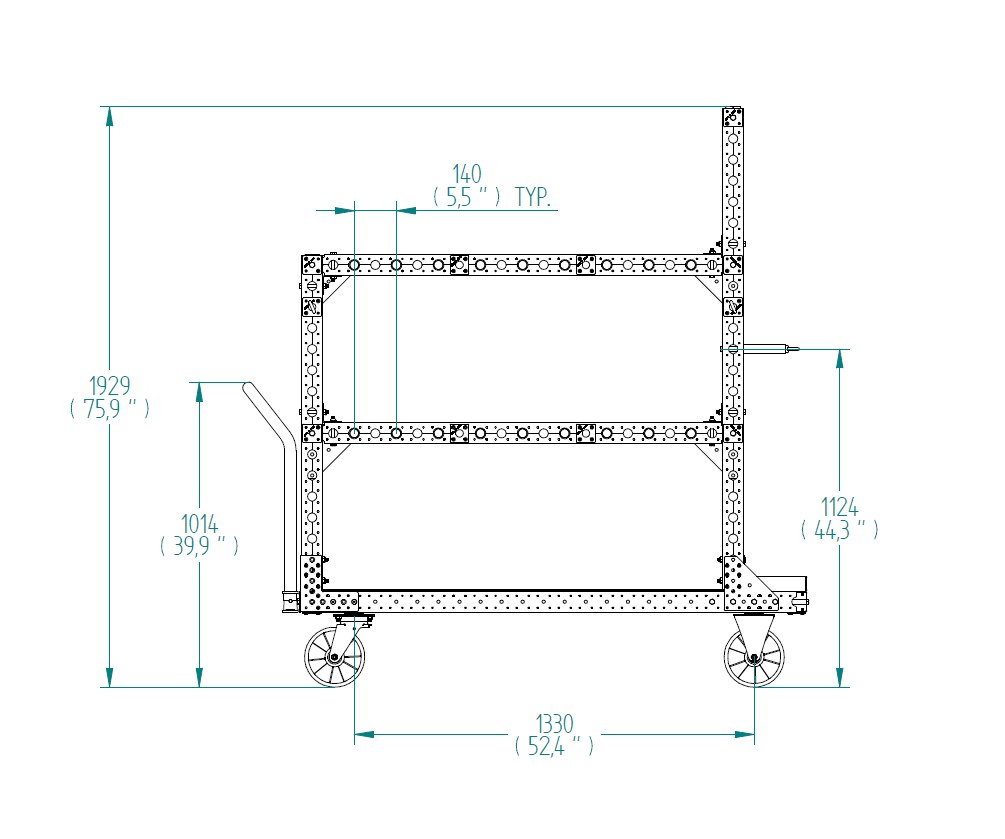

Panel Kit Cart - 1050 x 1680 mm
Kit Cart - 1050 x 1680 mm
Kit Cart - 1050 x 1680 mm
Q-100-1823

Panel Kit Cart - 1050 x 1680 mm

Kit cart designed for large and obscure parts with tubes used for dividers.

Technical specifications

Category: Kitting Carts

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Load capacity: 772 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

This kit cart is used to transport parts of different shapes and sizes in between production lines. The horizontal tubes are used as dividers and keep the panel-shaped parts in a secure position while in the rear. Larger parts are placed and secured in the cart with the help of eyebolts. The cart is equipped with a top bent handlebar and nylon casters.

Parts included
FlexPlate™ 20 Q-002-1001
Flexplate™ M10 23 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
L Bracket Joint 4 Q-005-0031
T-Joint 2 Q-005-0065
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 34 Q-005-0469
Triangle Joint 6 Q-005-0483
Countersunk Wheel Attachment - 105 x 77.5 mm 4 Q-005-0647
Rubber carpet - 1330 x 1050 mm 1 Q-005-0810
Rubber carpet - 1040 x 200 mm 1 Q-005-0811
Plastic Tube - 950 mm 18 Q-005-0827
Plastic Tube - 904 mm 5 Q-005-0828
Beam to Beam Corner Plate 2 Q-005-1356
64 mm FlexBeam™ Collet 26 Q-005-1426
Lifting eyebolts DIN 580-M10-NI 4 Q-006-0041
Fully Threaded - M10 x 120 mm 2 Q-006-1037
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 68 Q-006-1042
Countersunk 16 Q-006-1082
Hex Head - M10 x 90 mm 34 Q-006-1132
Extra Low Head - M10 x 90 mm 13 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 192 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 44 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Plastic Tube Cap US - 30 x 25,4 mm 18 Q-009-0030
Handle With Bent Top 700 mm 1 Q-015-1040
Top Plate - 1400 x 1050 mm 1 Q-016-0604
Flat shelf - 1050 x 210 mm 1 Q-016-0605
FlexBeam™ FE - 1610 mm 4 Q-020-1610
FlexBeam FE - 1050 mm 2 Q-021-1050
FlexBeam FE - 1330 mm 4 Q-021-1330
FlexBeam™ FE - 1610 mm 8 Q-021-1610
Outer tube (No plate) - 140 mm 2 Q-025-0140
Outer Tube (No Plate) - 1050 mm 23 Q-025-1050
