Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Kit-cart for Plastic panels - 83 x 41 inch
Q-100-0361

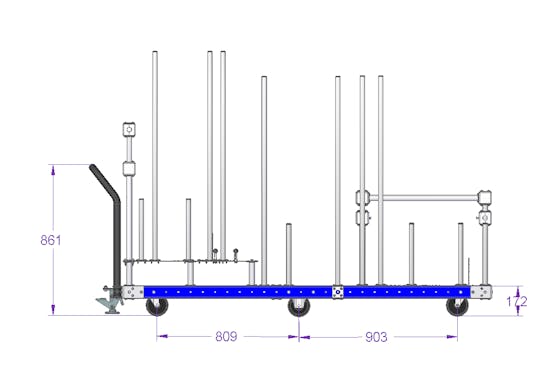

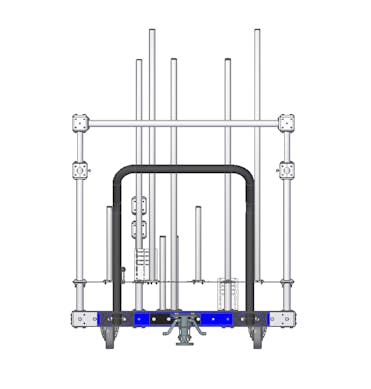

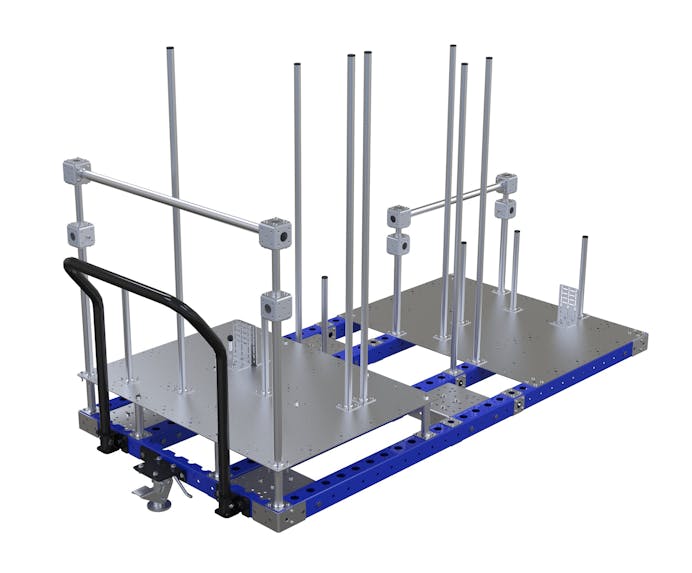

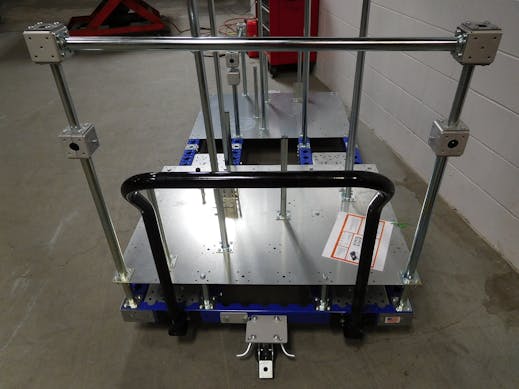

Kit-cart for Plastic panels - 83 x 41 inch

Kit cart designed to transport plastic panels, the cart is equipped with a handlebar, floor brake and six nylon casters.

Technical specifications

Transportation method: Manual

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 83 inch

Load capacity: 220 lbs

Width: 41 inch

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart was custom designed to store and transport plastic panels. The tubes acts as dividers and the cart is split into two sections, one for the smaller panels that has been raised slightly and one for the larger. The cart is equipped with a handlebar, floor brake and six nylon casters, two fixed and four swivel making easy to maneuver.

Parts included
FlexTube Inner - 350 mm 10 Q-000-0048
FlexTube™ 350 mm 2 Q-000-1055
FlexTube™ 140 mm - Locking Nut 10 Q-000-1102
FlexTube™ 490 mm 2 Q-000-1247
FlexTube™ Inner 1190 mm 7 Q-000-1257
FlexTube™ 910 mm 1 Q-000-1269
FlexTube™ 630 mm 1 Q-000-1312
FlexQube 16 Q-001-1078
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 840 mm 8 Q-001-1305
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 39 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Swivel Caster - 125 mm 4 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
Floor Lock COLSON 4 x 4-1/2 2 Q-004-1369
Modular Attachment Plate for Telescopic Lists 3 Q-005-0041
Plastic tube - 37.5 mm 2 Q-005-0252
Tube End Plug GN 991-D25 13 Q-005-0254
Wheel Attachment Box 6 Q-005-1079
Spherical Knob 2 Q-005-1146
64 mm FlexBeam™ Collet 24 Q-005-1426
Hex head fully threaded - M8 x 25 mm 24 Q-006-0014
Allen Head - M6 x 30 mm 12 Q-006-1012
Hex Head - M10 x 25 mm 20 Q-006-1041
Locking Nut M10 54 Q-006-1042
Washer M10 104 Q-006-1043
Locking Nut M6 8 Q-006-1050
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 30 mm 1 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 2 Q-006-1195
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 344 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 12 Q-006-1502
Low Rider Floor Brake Plate 2 Q-015-0019
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate flat Kitting - 840 x 1050 mm 2 Q-016-0176
