Q-007-1013

Kit Cart with Rollers and Dividers

Two level roller shelf cart used for transporting large metal parts. Equipped with four nylon swivel casters.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

More info

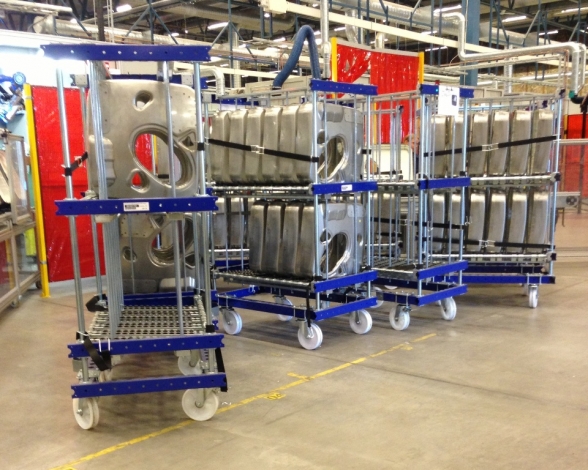

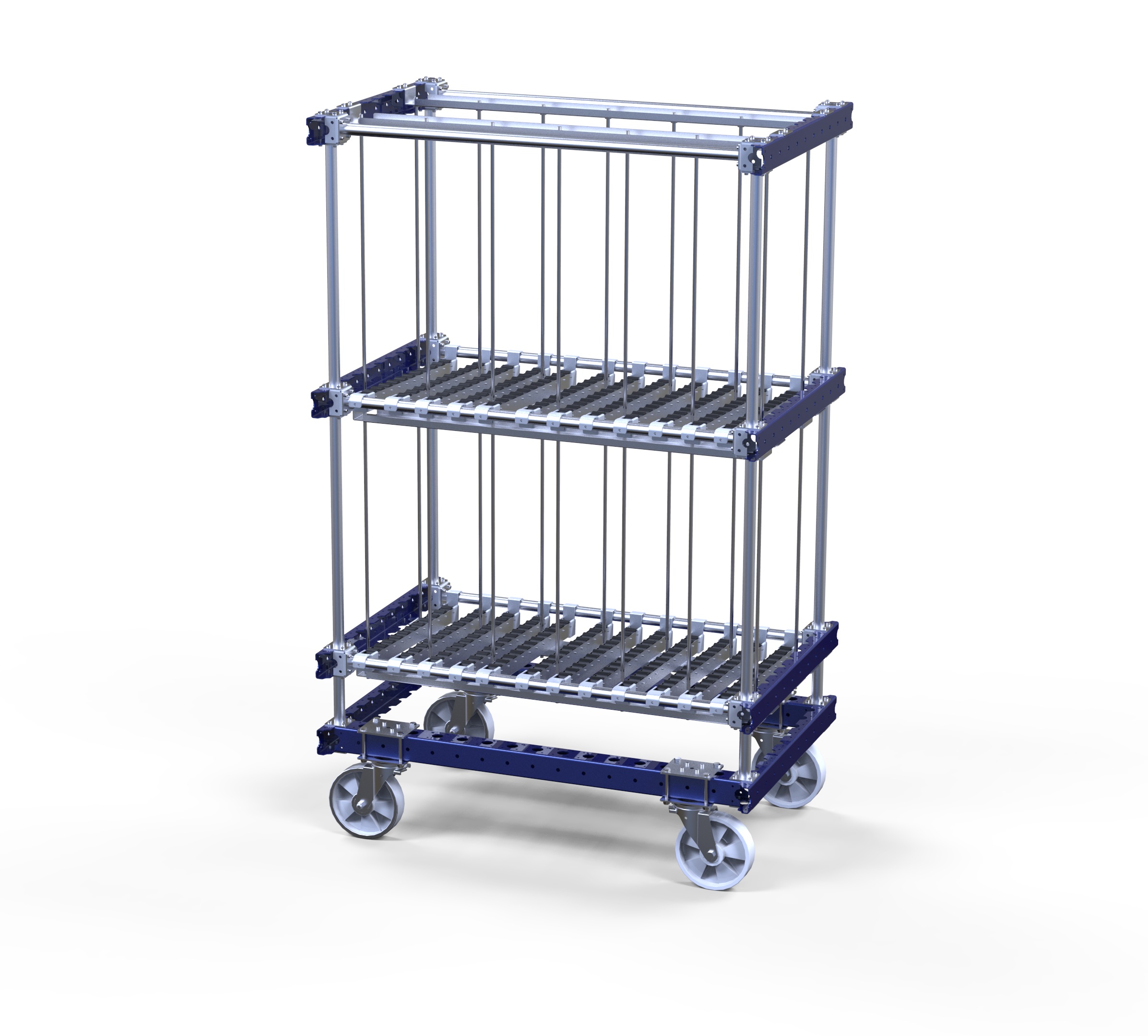

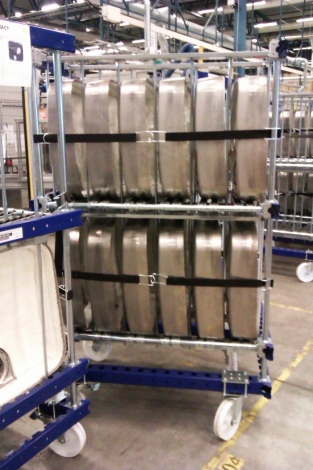

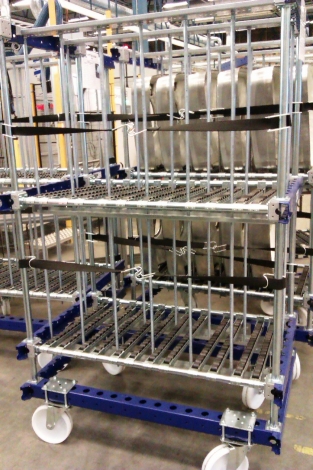

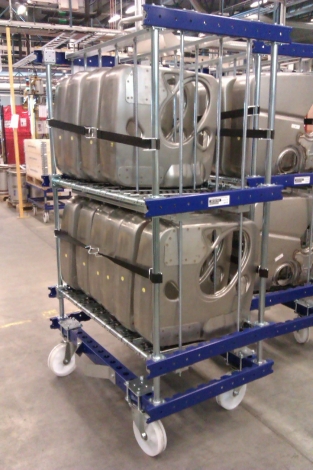

This cart was custom designed to transport large metal pieces between warehouse and assembly line. The cart has two levels of rollers split into six sections to keep parts separated. Equipped with four nylon swivel casters making it easy to maneuver in tight areas.

Parts included

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Tugger Train Opener 3 mm 1 Q-005-1300

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm without Brake 2 Q-004-1352

FlexTube™ 630 mm 8 Q-000-1312

FlexTube™ 1050 mm 6 Q-000-1053

FlexTube™ 140 mm 4 Q-000-1368

Threaded pin holder 6 Q-005-1503

FlexPlate™ 8 Q-002-1001

Nut M10 28 Q-006-1195

Hex Head - M10 x 90 mm 18 Q-006-1132

Locking Nut M10 46 Q-006-1042

Round Head - M6 x 12 mm 16 Q-006-1051

FlexQube 12 Q-001-1078

FlexBeam™ 1120 mm 4 Q-001-1301

FlexBeam™ 770 mm 8 Q-001-1306

Self Tapping Screw M6 Torx H60 x 16 200 Q-006-1384
