Large Shelf Cart 99.4 x 49.8 inch
Large Shelf Cart 99.4 x 49.8 inch
Large Shelf Cart 99.4 x 49.8 inch
Large Shelf Cart 99.4 x 49.8 inch
Q-100-0302

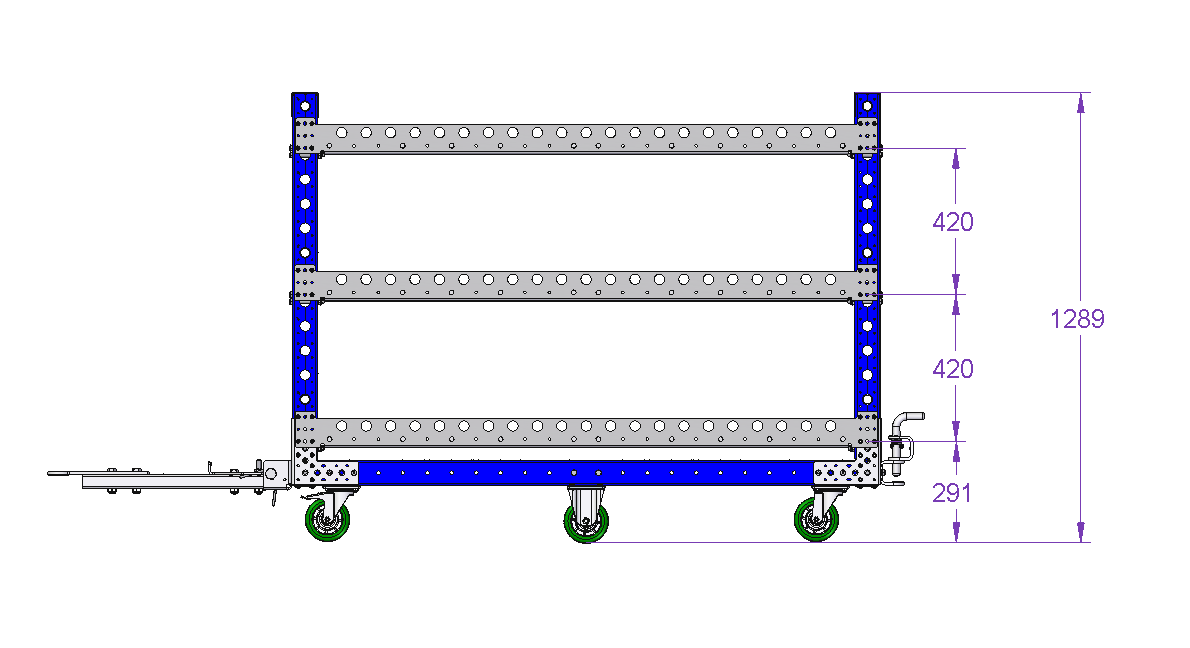

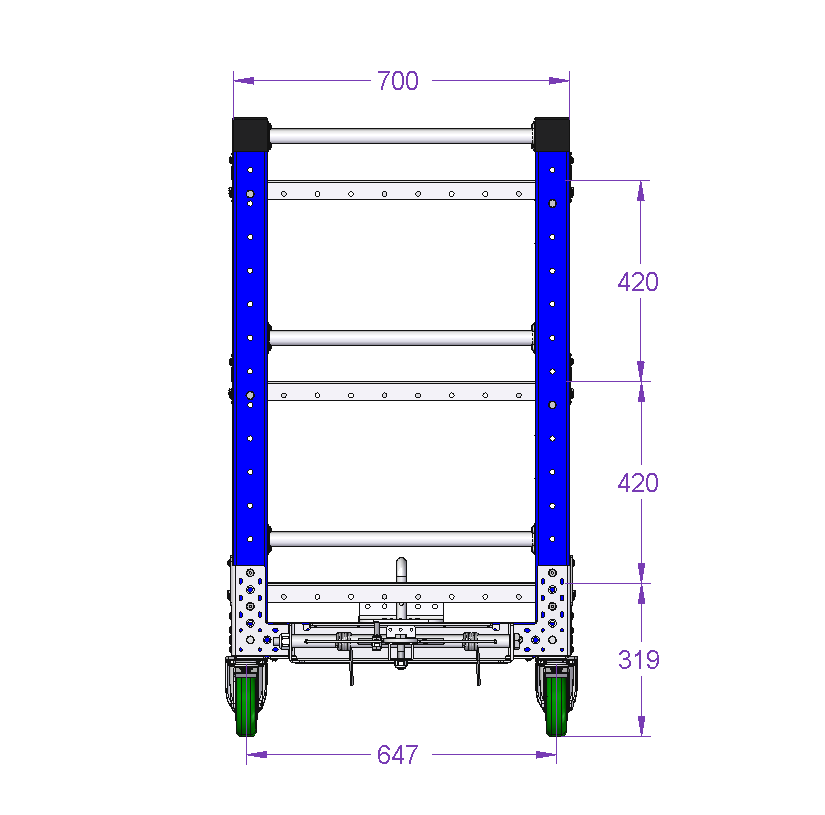

Large Shelf Cart 99.4 x 49.8 inch

The FlexQube Large Shelf Cart, 99.4 x 49.8 inch, has two, flat levels and is equipped with to lip on both ends. Supports lean, fork-lift free production.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 99 inch

Levels: 2

Load capacity: 2866 lbs

Load Capacity per Level: 1499 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This large and robust flat shelf tugger cart was designed to transport bins, totes, and boxes. But due to its size and the robustness, it can also transport larger materials. It is equipped with tow lips at either end, so it can be towed.

Parts included
FlexTube™ 770 mm 2 Q-000-1265
FlexBeam™ - 1540 mm 8 Q-001-1295
FlexBeam™ 910 mm 8 Q-001-1304
FlexBeam™ 770 mm 8 Q-001-1306
FlexBeam™ 1120 mm FE 8 Q-001-1401
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 24 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 5 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
L Bracket Joint 12 Q-005-0031
Wheel Attachment Box 8 Q-005-1079
Beam to Beam Corner Plate 8 Q-005-1356
64 mm FlexBeam™ Collet 85 Q-005-1426
Hex Head - M10 x 25 mm 52 Q-006-1041
Locking Nut M10 168 Q-006-1042
Hex Head - M10 x 90 mm 52 Q-006-1132
Hex Head - M10 x 20 mm 16 Q-006-1232
Extra Low Head - M10 x 90 mm 32 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 408 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Half Top Plate - 49 x 24,5 inch 8 Q-016-0131
Towing Lip - 2,5 Inch 2 Q-017-1012
