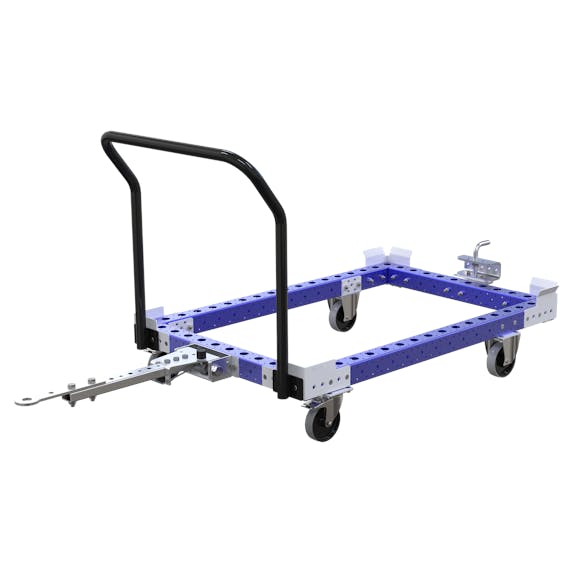

Light Tugger Cart - 840 x 1260 mm
Light Tugger Cart - 840 x 1260 mm
Light Tugger Cart - 840 x 1260 mm
Light Tugger Cart - 840 x 1260 mm
Q-100-1585

Light Tugger Cart - 840 x 1260 mm

Standard tugger cart designed for lightweight pallets or containers.

Technical specifications

Category: Standard

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 33 inch

Length: 50 inch

Load capacity: 551 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Gray

More info

This standard tugger cart is built for lightweight pallets or containers. The frame is made with a simple beam structure, using corner guides. It comes equipped with a handlebar, polyurethane/nylon casters and a lightweight towbar to connect the carts in a tugger train.

Parts included
FlexPlate™ 8 Q-002-1001
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Towing VKR - 460 mm 1 Q-005-0102
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Spring Cover Plate New 1 Q-005-0451
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Pallet Guide Corner Plate 2 Q-005-1096
Angled Corner Plate 2 Q-005-1098
64 mm FlexBeam™ Collet 16 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Locking Nut M10 35 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 90 mm 2 Q-006-1132
Locking Nut M8 17 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head - M10 x 100 mm 4 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handle With Bent Top 700 mm 1 Q-015-1040
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 1190 mm 4 Q-020-1190
