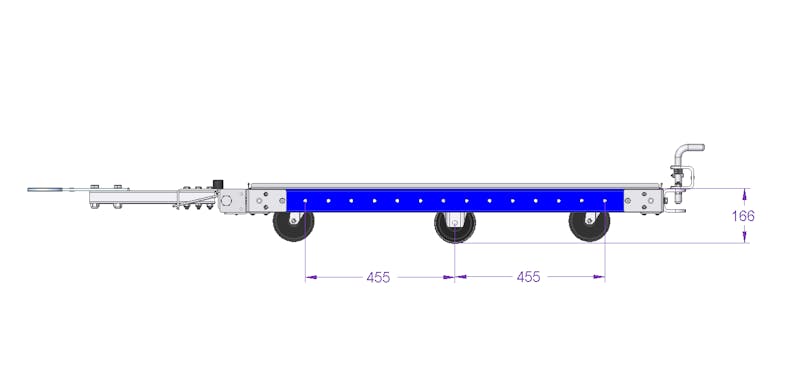

Low Rider Cart 50 x 50 inch

Tuggable low rider flatbed cart. Equipped with a towbar and six polyurethane casters giving the cart excellent tracking properties.

Technical specifications

Category: Flat Deck

Transportation method: Manual, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Hitch and Pin

Width: 50 inch

Length: 50 inch

Load capacity: 1001 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

Tuggable low rider flatbed pallet cart, great for the transportation of larger pallets and containers or several smaller. The cart is equipped with a tow bar and six high-quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ 1190 mm 5 Q-001-1300
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Swivel Caster - 125 mm 4 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
L Bracket Joint 2 Q-005-0031
Spring tow bar 1 Q-005-0450
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
64 mm FlexBeam™ Collet 4 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 9 Q-006-1041
Locking Nut M10 27 Q-006-1042
Washer M10 66 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 30 mm 3 Q-006-1161
Locking Nut M8 25 Q-006-1181
Countersunk - M8 x 25 mm 8 Q-006-1250
Countersunk - M8 x 20 16 Q-006-1282
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 24 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 82 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Top plate - 50 x 50 inch 1 Q-016-0171
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 2,5 Inch 1 Q-017-1012
