Low rider cart 69 x 34 inch
Low rider cart 69 x 34 inch
Low rider cart 69 x 34 inch
Low rider cart 69 x 34 inch
Low rider cart 69 x 34 inch
Low rider cart 69 x 34 inch
Q-100-0344

Low rider cart 69 x 34 inch

Low rider platform cart most commonly used for transporting pallets and containers. Equipped with a floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 69 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

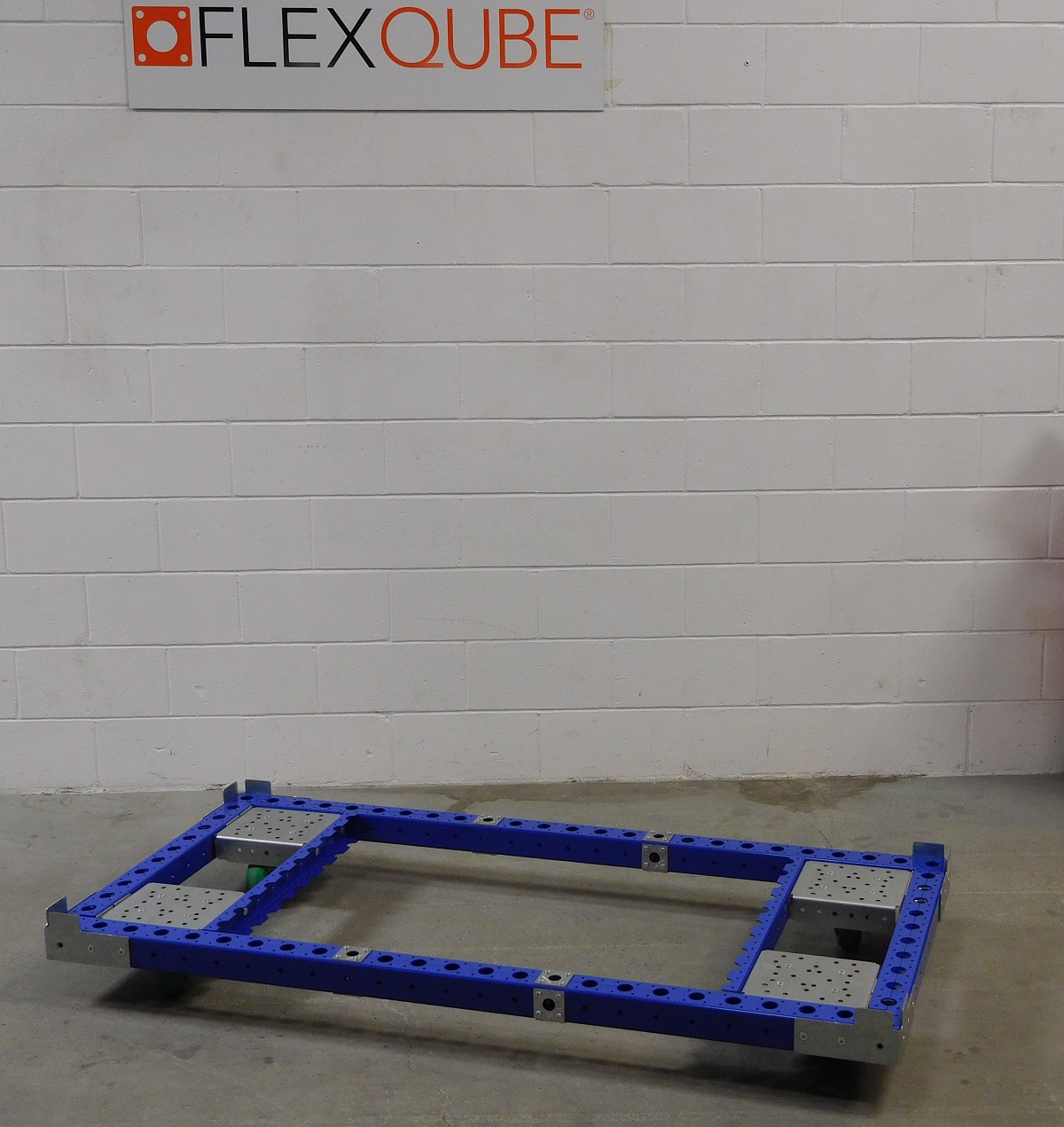

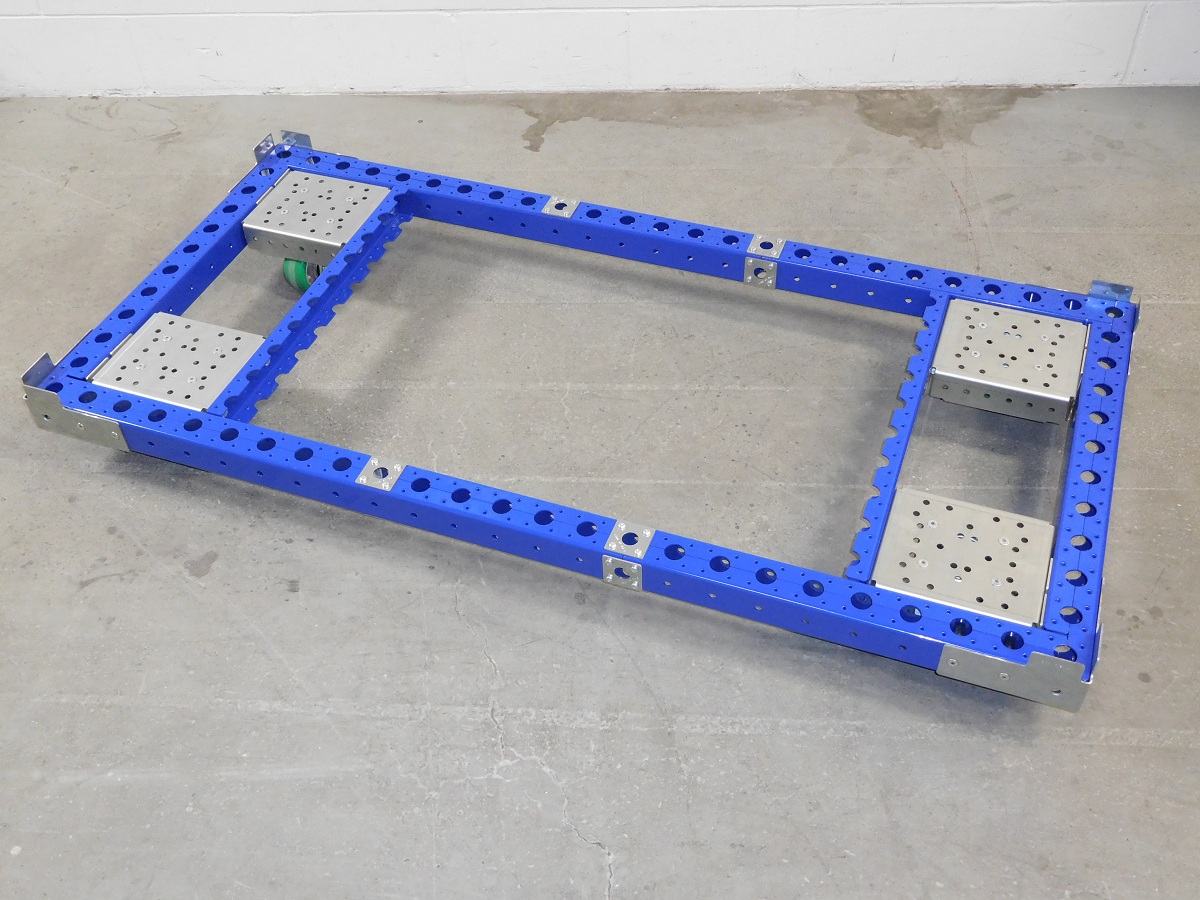

Low rider platform cart most commonly used for the transportation of pallets and containers. The low loading height allows you to fit more material in an ergonomic height for the operator. It can be moved by pushing the container placed on the cart but a handlebar can also be added if needed. The cart is equipped with a floor brake and six polyurethane casters, two fixed and four swivel making it easy to maneuver.

Parts included
FlexBeam™ 1050 mm 4 Q-001-1302
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 4 Q-001-1407
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 8 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
Caster Polyurethane - 125 mm 4 Q-004-1106
Angle corner plate - 5 mm 4 Q-005-0227
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 16 Q-005-1426
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 52 Q-006-1042
Washer M10 52 Q-006-1043
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 90 mm 2 Q-006-1132
Hex Head - M10 x 20 mm 4 Q-006-1232
Extra low head [1,5 mm] M10x40 mm 4 Q-006-1361
Extra Low Head - M10 x 90 mm 1 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 48 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 17 Q-006-1410
Low Rider Floor Brake Plate 1 Q-015-0019
