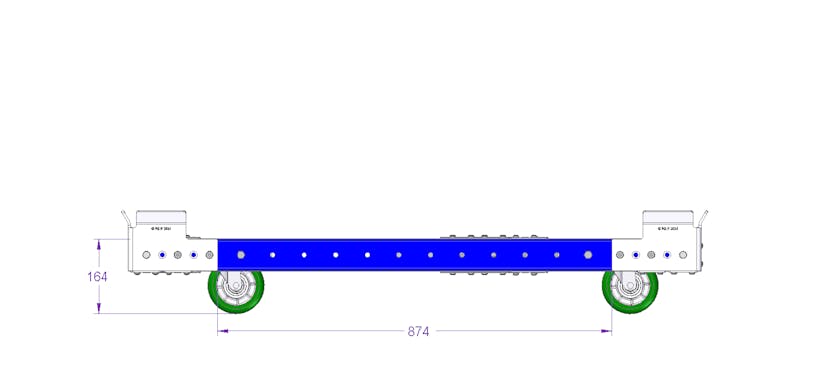

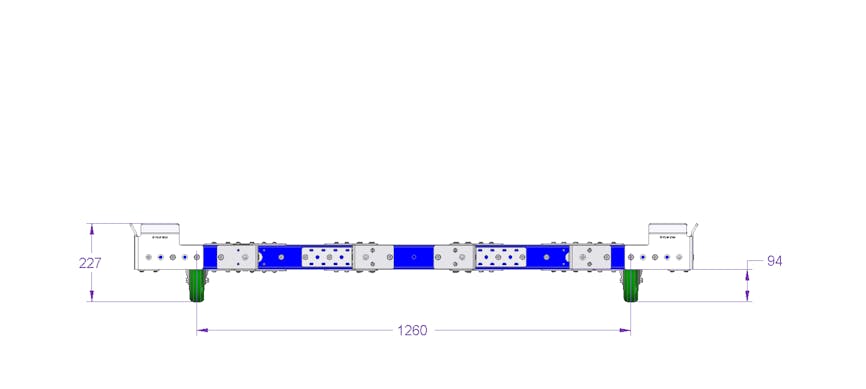

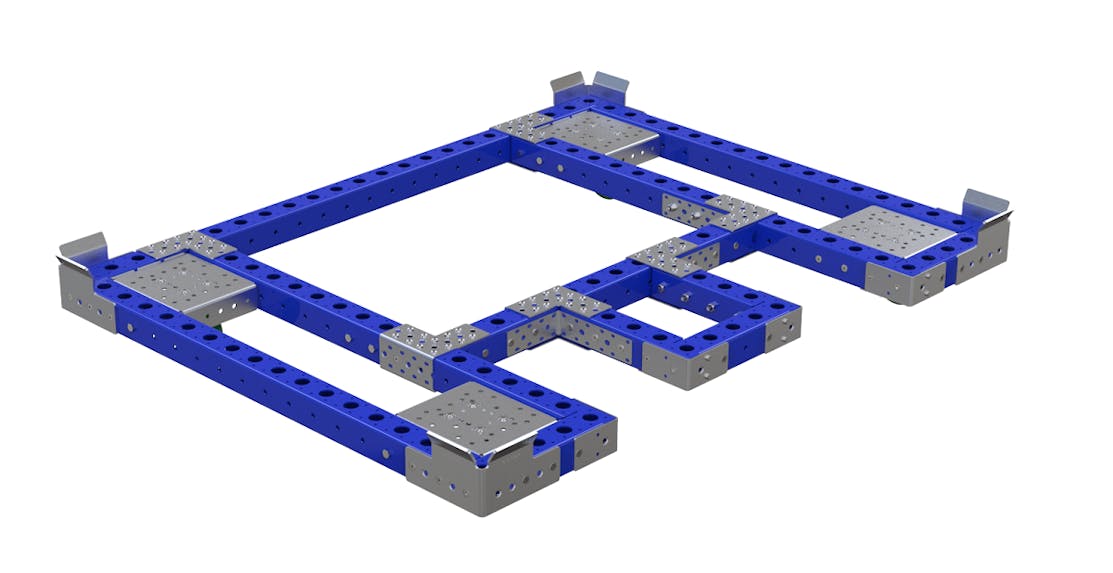

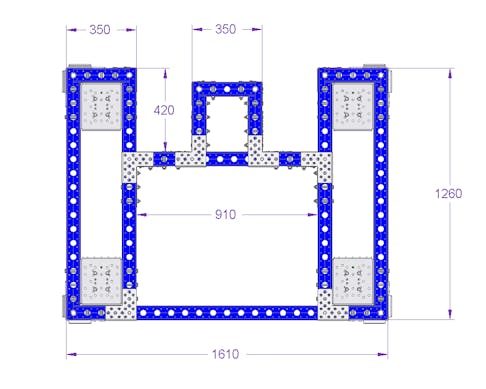

Low Rider Pallet Cart With Picking Area - 1610 x 1260 mm
Low Rider Pallet Cart With Picking Area - 1610 x 1260 mm
Low Rider Pallet Cart With Picking Area - 1610 x 1260 mm
Low Rider Pallet Cart With Picking Area - 1610 x 1260 mm
Q-100-0941

Low Rider Pallet Cart With Picking Area - 1610 x 1260 mm

Simply designed pallet cart with picking area.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 63 inch

Load capacity: 699 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is designed to transport pallets and containers. The two sections are the front are to improve access for picking by operators to the pallets. This cart is also designed as a low rider improved ergonomics.

Parts included
FlexBeam™ - 1540 mm 2 Q-001-1295
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 280 mm 6 Q-001-1313
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 350 mm FE 2 Q-001-1412
FlexBeam™ 280 mm FE 2 Q-001-1413
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 12 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
L Bracket Joint 4 Q-005-0031
Angle corner plate - 5 mm 4 Q-005-0227
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 34 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Locking Nut M10 64 Q-006-1042
M8 x 20 mm MELC6S 10.9 Allen Head 16 Q-006-1044
Hex Head - M10 x 90 mm 14 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 Washer 16 Q-006-1183
Extra Low Head - M10 x 90 mm 44 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 218 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
