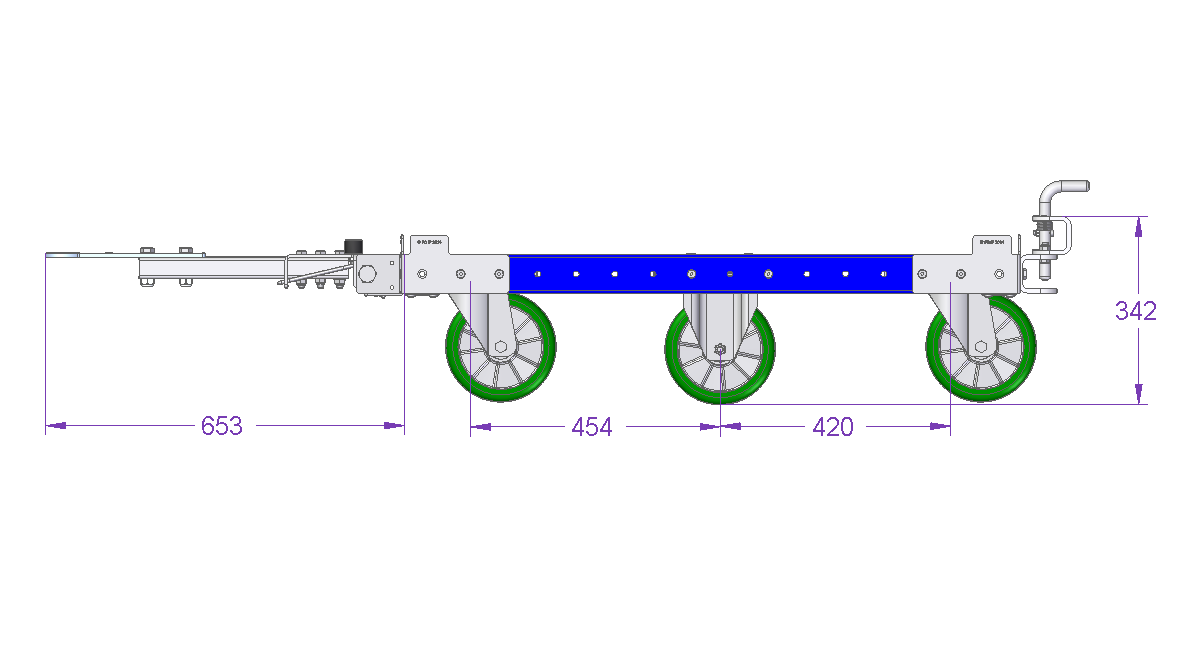

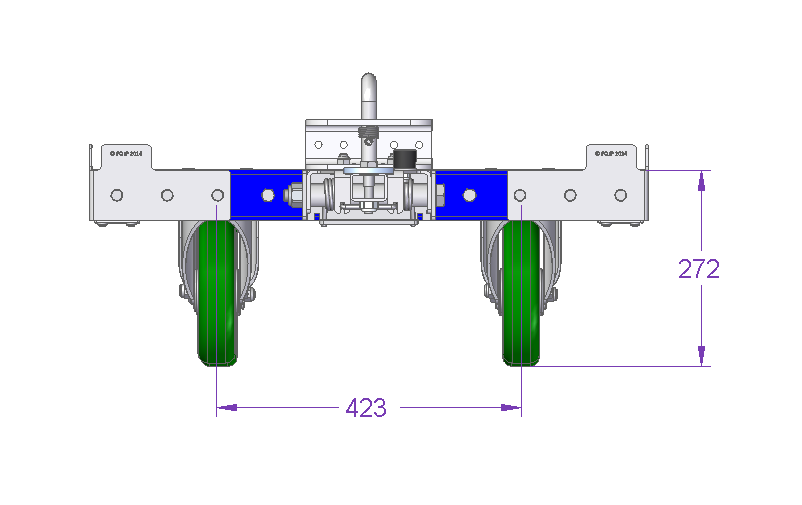

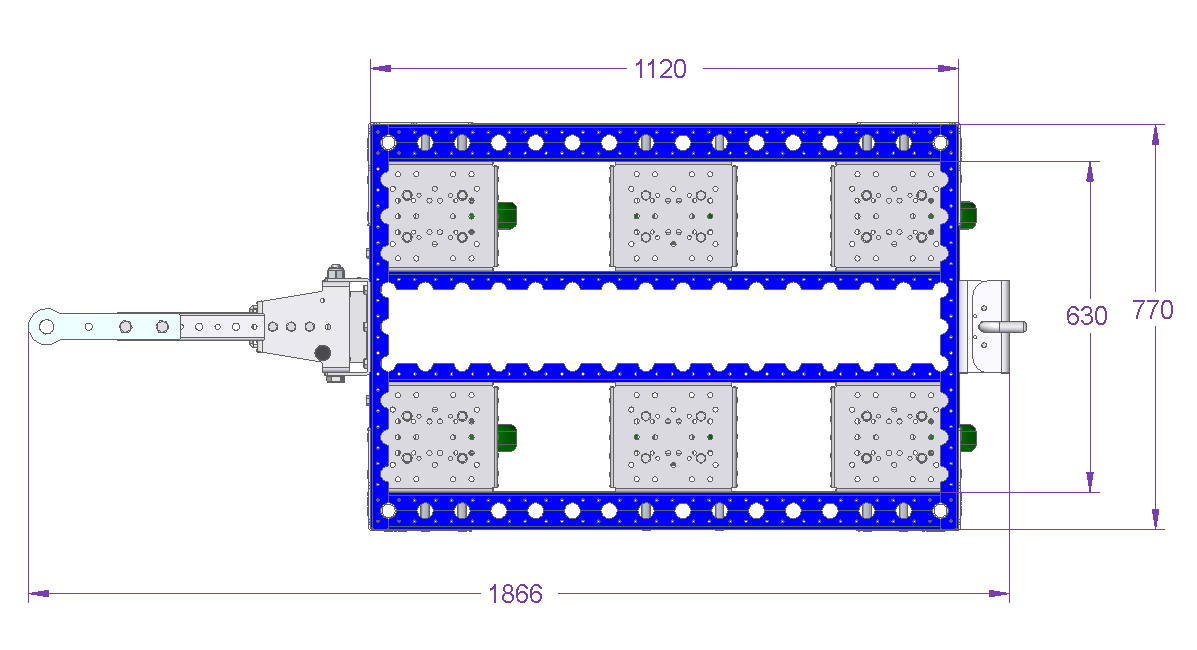

Low Rider Tugger Cart - 1120 x 770 mm
Low Rider Tugger Cart - 1120 x 770 mm
Low Rider Tugger Cart - 1120 x 770 mm
Low Rider Tugger Cart - 1120 x 770 mm
Q-100-0464

Low Rider Tugger Cart - 1120 x 770 mm

Tuggable pallet/container cart equipped with six polyurethane caster, two fixed and four swivel.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 30 inch

Length: 44 inch

Load capacity: 1102 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable pallet/container specifically used for one pallet size. The cart comes equipped with six polyurethane casters, two fixed and four swivel giving the cart excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 1050 mm 6 Q-001-1302
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 4 Q-002-1001
Caster distance plate - 5 mm 52 Q-004-0038
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 12 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 20 Q-006-1041
Locking Nut M10 73 Q-006-1042
Washer M10 18 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343
Extra low head [1,5 mm] M10x40 mm 16 Q-006-1361
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
