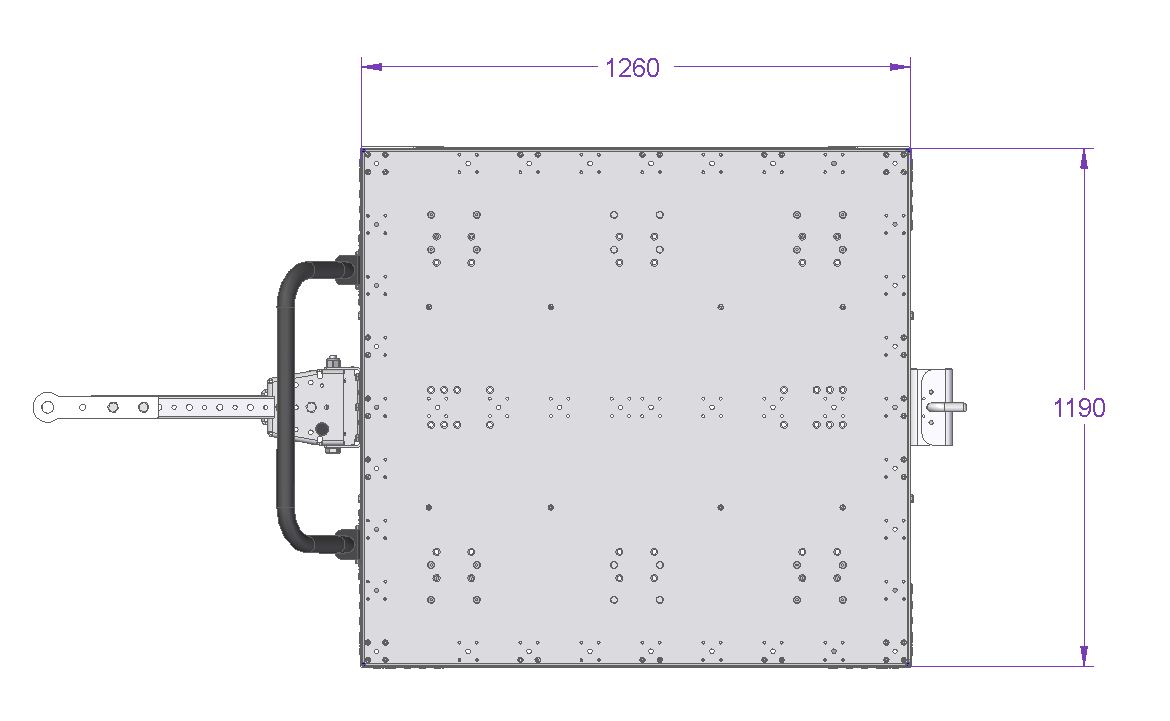

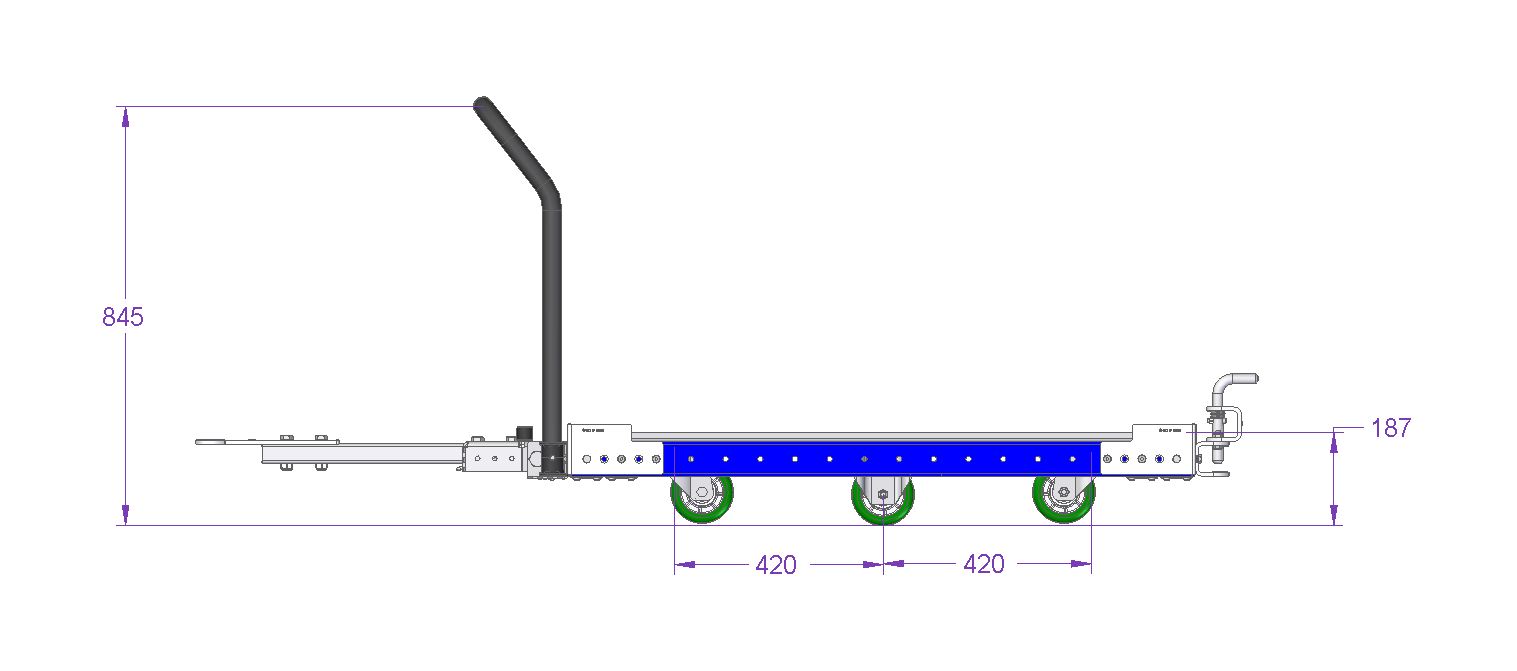

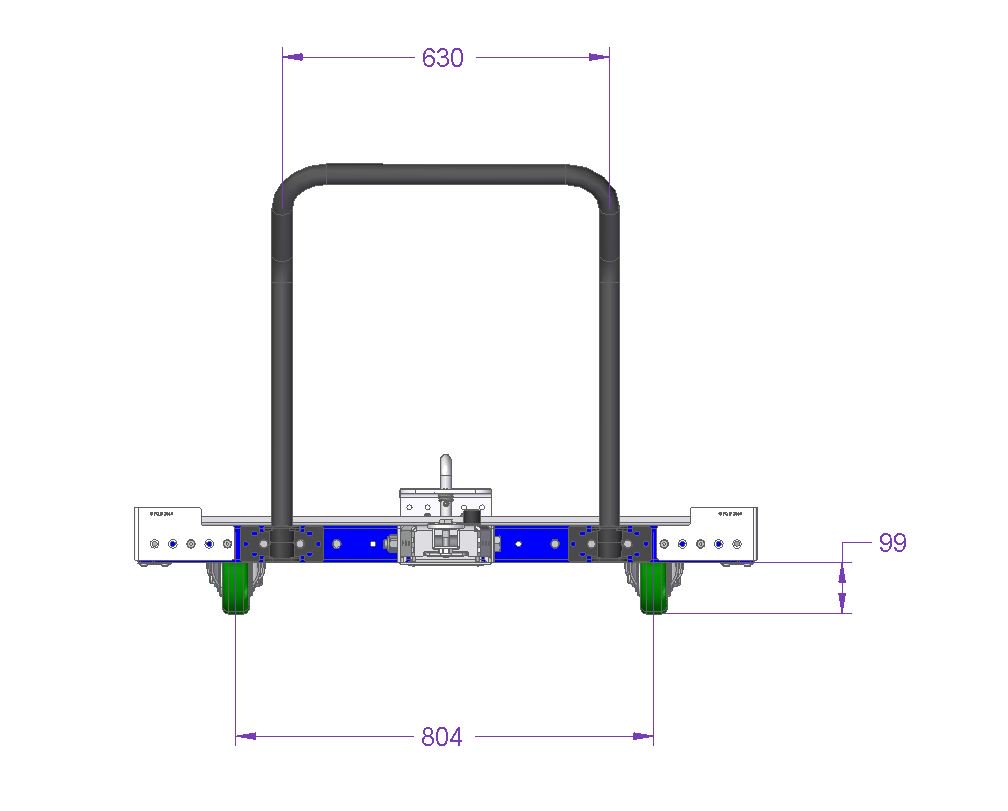

Low Rider Tugger Cart - 1260 x 1190 mm
Low Rider Tugger Cart - 1260 x 1190 mm
Low Rider Tugger Cart - 1260 x 1190 mm
Low Rider Tugger Cart - 1260 x 1190 mm
Q-100-0705

Low Rider Tugger Cart - 1260 x 1190 mm

Simply designed low rider tugger cart for pallet carts.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 1499 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

Low rider tugger cart for transportation of pallets/totes/bins and boxes. The cart is equipped with a removable handlebar, tongue and hitch tow bar aswell as six high quality polyurethane casters, two fixed and four swivel for excellent tracking properties aswell as silent transportation.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
L Bracket Joint 4 Q-005-0031
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 23 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 46 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 90 mm 10 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 25 Q-006-1181
M8 Washer 24 Q-006-1183
Countersunk - M8 x 25 mm 8 Q-006-1250
Countersunk - M8 x 20 16 Q-006-1282
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 44 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top plate with edge - 1190 x 1260 mm 1 Q-016-0216
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
