Low Tugger Cart - 1050 x 1400 mm
Low Tugger Cart - 1050 x 1400 mm
Low Tugger Cart - 1050 x 1400 mm
Low Tugger Cart - 1050 x 1400 mm
Q-100-1324

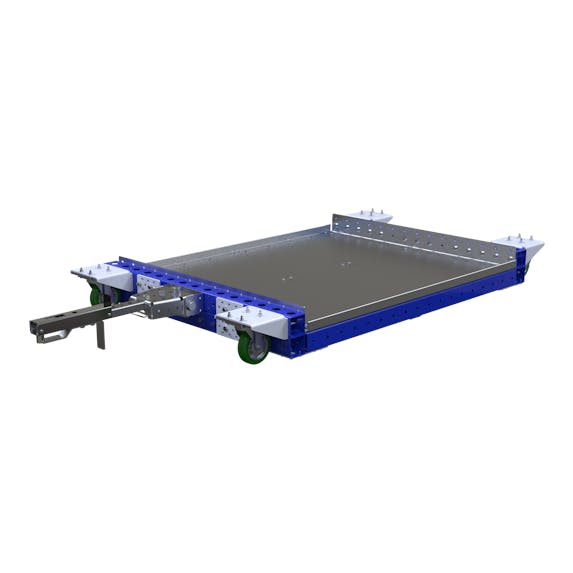

Low Tugger Cart - 1050 x 1400 mm

This low rider pallet cart is designed to transport pallets, boxes or containers.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 55 inch

Load capacity: 265 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This low rider cart can be used to transport pallets, containers, boxes or loose components. It is designed to have the platform at a low height from the floor to be able to use a specific type of lifting device. This cart is equipped with polyurethane casters and a foot release tow bar.

Parts included
FlexBeam™ 1050 mm FE 8 Q-001-1402
FlexBeam™ 1260 mm FE 2 Q-001-1500
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Triangle Joint 4 Q-005-0483
Extended caster attachment - 180 x 160 (Welded) 4 Q-005-0881
Collet 32 x 15 x M10 Threads 12 Q-005-0924
Collet - 31 mm 2 Q-005-1008
Spring Cover Plate 1 Q-005-1025
64 mm FlexBeam™ Collet 12 Q-005-1426
Hat Profile - 1260 x 38 mm 3 Q-005-2331
Hex Head Fully Threaded - M8 x 20 mm 16 Q-006-1019
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 77 Q-006-1042
Hex Head - M10 x 95 mm 3 Q-006-1088
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M10 x 90 mm 23 Q-006-1132
Locking Nut M8 16 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 60 Q-006-1384
Low Allen Head - M10 x 16 mm 20 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 44 Q-006-1410
Spring 1,5 x 15yd x 70 1 Q-012-1141
Top Plate w. edge - 1050 x 1260 mm 1 Q-016-0690
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Foot Release Locking Lip 1 Q-017-0024
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Tow Hole 28 mm - Symmetric 1 Q-017-1066
