Mobile Workstation Cart- 820 x 1240 mm
Mobile Workstation Cart- 820 x 1240 mm
Mobile Workstation Cart- 820 x 1240 mm
Mobile Workstation Cart- 820 x 1240 mm
Q-100-1648

Mobile Workstation Cart- 820 x 1240 mm

Movable workstation for assembly of parts in big panels. Has beams to hang tools and four nylon casters.

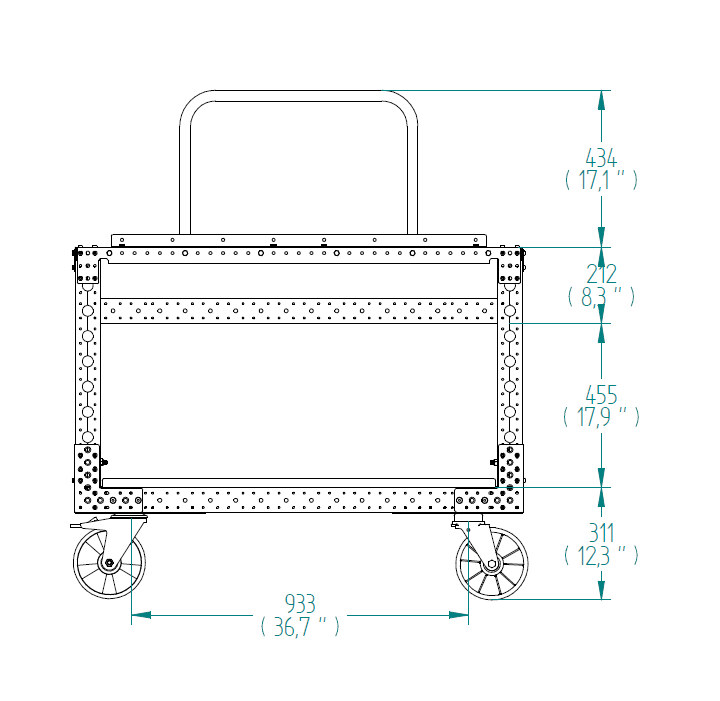

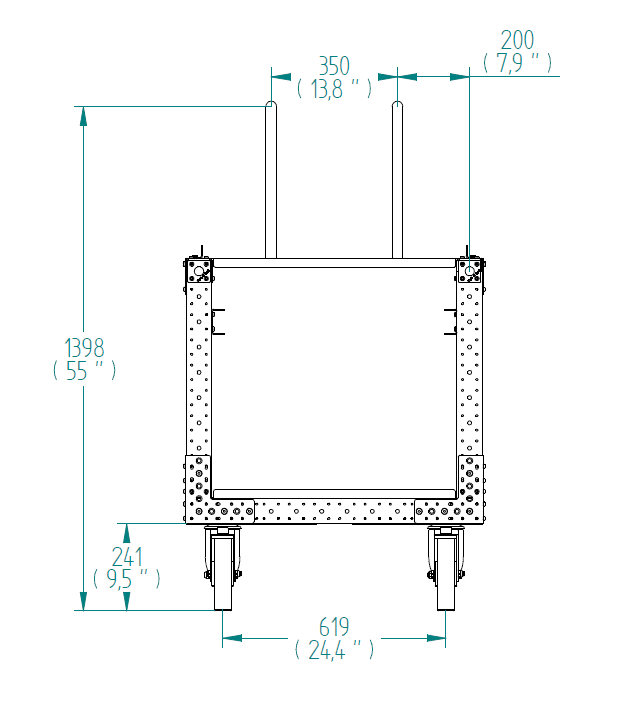

Technical specifications

Category: Specialized Carts

Industry: Commercial Vehicles, Tier One Suppliers

Width: 32 inch

Length: 49 inch

Load capacity: 595 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

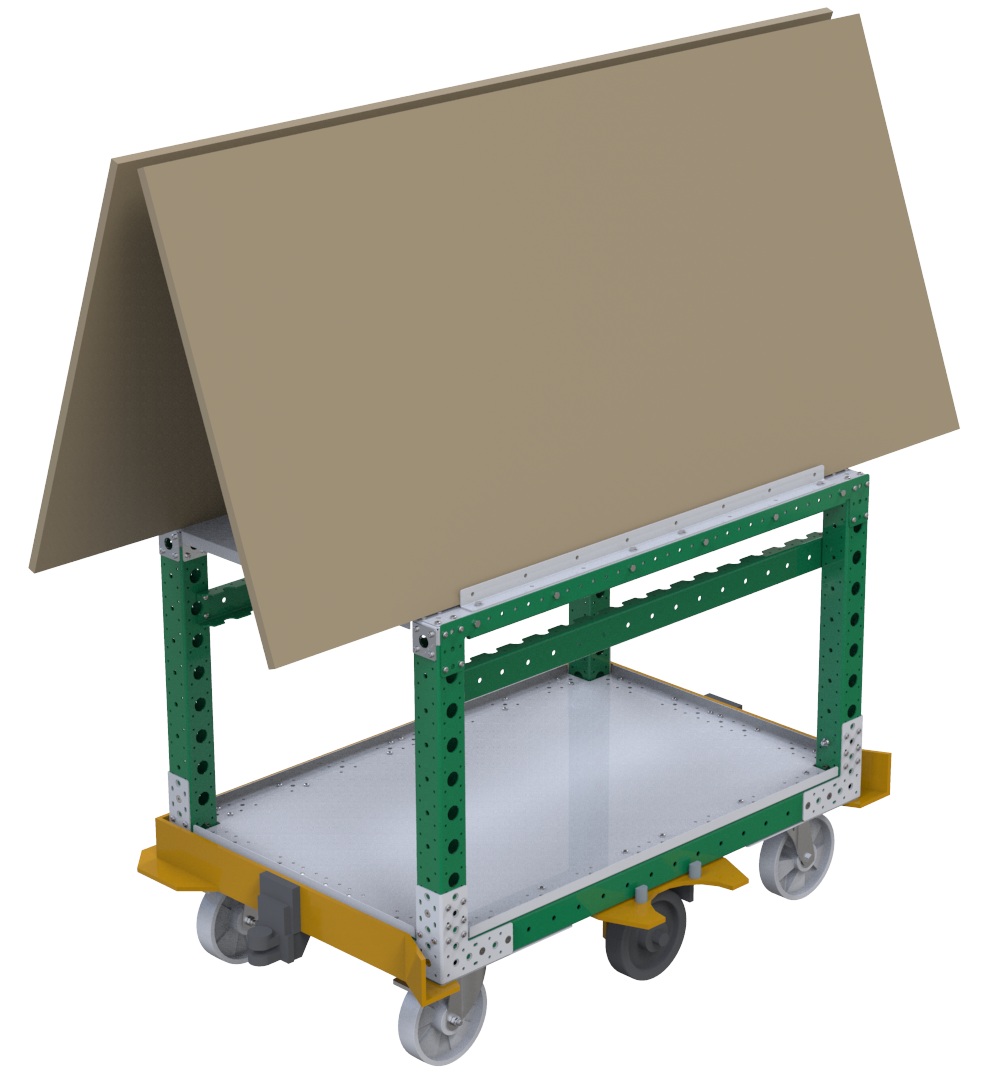

This mobile workstation is perfect for reducing time in travel distance between stations. The cart can be used to place big panels with an inclination to then do assembly work on them. In the bottom part, the cart can hold boxes, loose parts or components and the beams below the table are used to hang tools. The cart/workstation is equipped with four nylon casters which is the best option for easy manual operation, and two of the swivel casters have brakes.

Parts included
FlexBeam STS FE - 820 mm 2 Q-001-0010
FlexQube 4 Q-001-1078
FlexPlate™ 8 Q-002-1001
Swivel 200 mm Nylon Brake Center 2 Q-004-0044
Spring Threaded Tube Connectors 8 Q-005-0469
Triangular Caster Attachment w Edge 4 Q-005-0489
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 12 Q-005-1426
L-Profile - 1040 mm 2 Q-005-2334
Locking Nut M10 28 Q-006-1042
Hex Head - M8 x 16 mm 20 Q-006-1120
Locking Nut M8 20 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 148 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 58 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handlebar - 630 x 420 mm 2 Q-015-0120
Flat Shelf - 820 x 1240 mm 1 Q-016-0917
Top plate w. edge - 840 x 1240 mm 1 Q-016-0918
Shelf Attachment Plate - 1240 mm 2 Q-016-0919
FlexBeam™ - 630 mm 8 Q-020-0630
