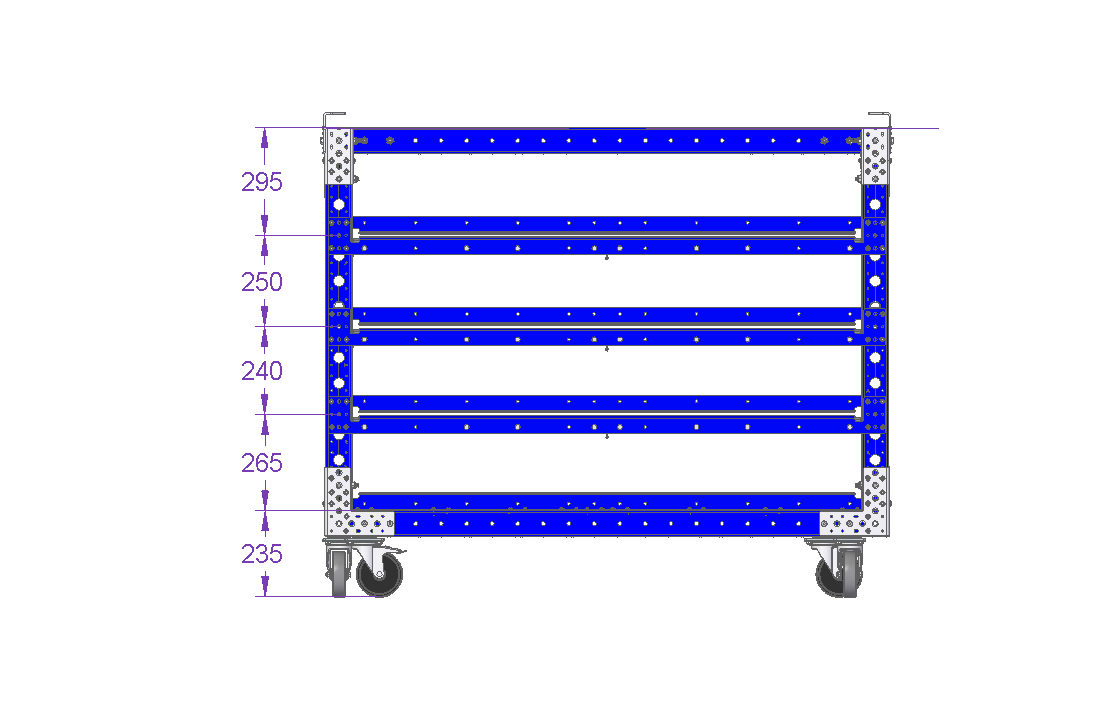

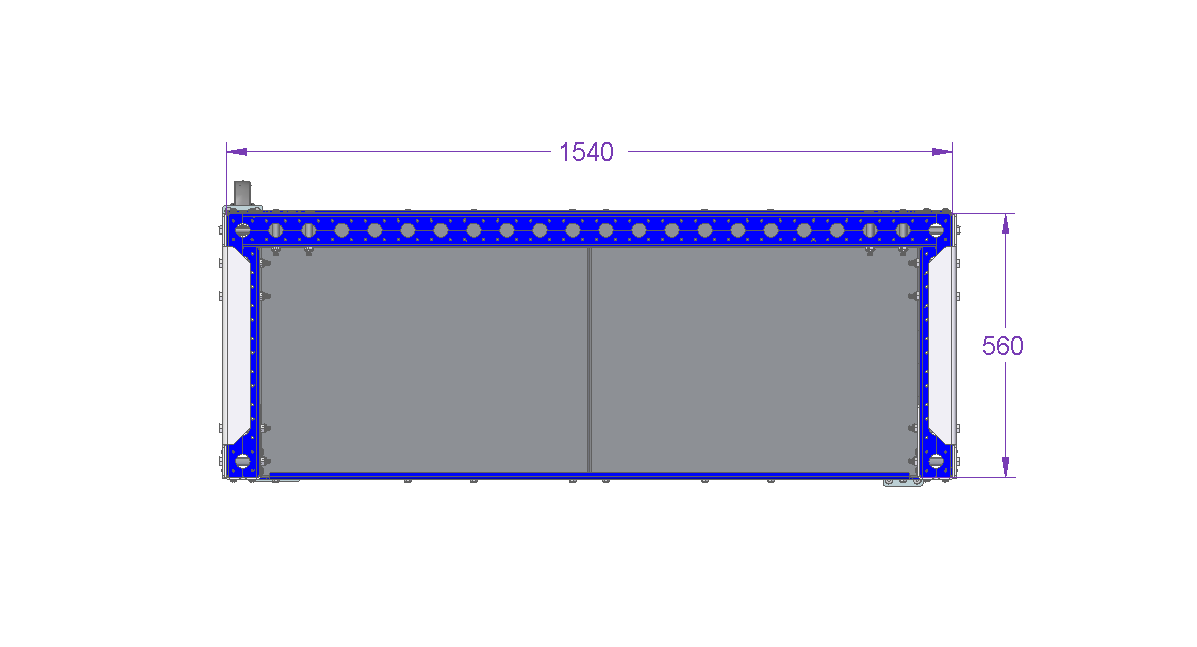

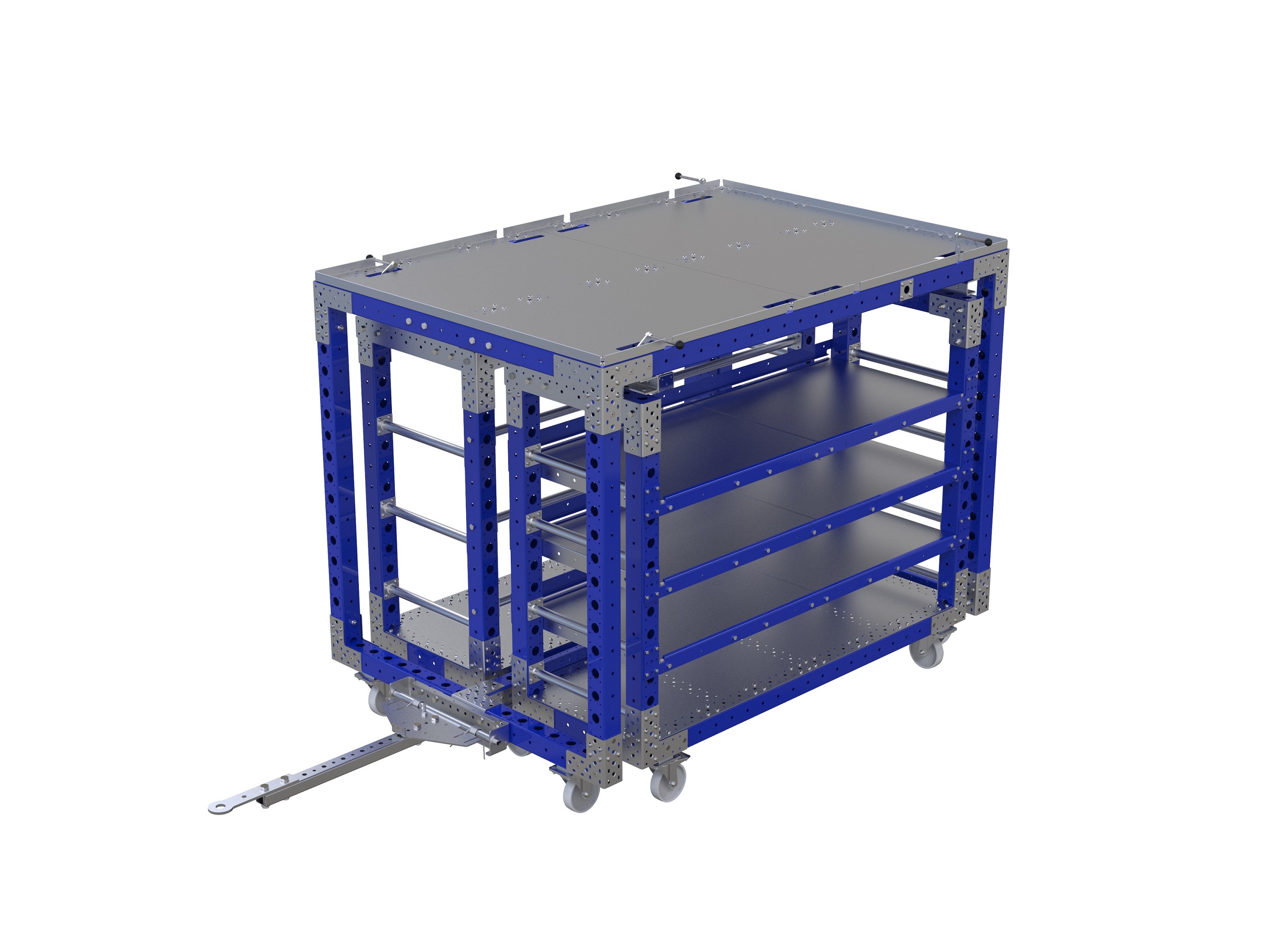

Mother cart - 2 in 1 - 1260 x 1820 mm

Tuggable mother cart designed to transport two daughter carts.

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Industry: Defense Equipment, Industrial Machinery, Wind & Energy

Category: Mother Carts

Length: 72 inch

Width: 50 inch

Load capacity: 201 lbs

Type of tow bar: Tongue and Hitch

Caster size: 5 inch

Caster Type: Gray

More info

Tuggable mother cart designed to transport two daughter carts (Q-100-0238). The mother-daughter concept is most commonly used in a milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.”

Parts included
FlexBeam™ - 1260 mm 4 Q-001-1299
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm 8 Q-001-1301
FlexBeam™ 560 mm 2 Q-001-1309
FlexBeam™ 490 mm 6 Q-001-1310
FlexBeam™ 1260 mm FE 6 Q-001-1500
FlexPlate™ 22 Q-002-1001
Flexplate™ M10 3 Q-002-1162
Swivel Caster - 125 mm 2 Q-004-1363
Fixed Caster - 125 mm 2 Q-004-1365
L Bracket Joint 8 Q-005-0031
M10 - Collet - 6 mm 4 Q-005-0105
Daughter cart catcher - 1260 mm 2 Q-005-0165
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Spherical Knob 4 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 31 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Daughter Cart Locking Plate 4 Q-005-1730
Washer M20 2 Q-006-0016
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M14 x 60 mm 4 Q-006-1036
Fully Threaded - M10 x 120 mm 4 Q-006-1037
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 10 Q-006-1041
Locking Nut M10 61 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 16 Q-006-1181
Nut M10 5 Q-006-1195
Countersunk - M8 x 20 16 Q-006-1282
Hex Head - M10 x 100 mm 4 Q-006-1302
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 324 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 16 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Top Shelf for Mother Cart 2 Q-016-0097
US Modular Tow Bar VKR - 950 mm 1 Q-017-0002
US Modular Tow Bar VKR - Lip - 660 mm 1 Q-017-0009
Handle for Tow Hole 1 Q-017-0022
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Towing Lip - 28 mm 1 Q-017-1010
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
