Mother Cart 2 in 1 - 1610 x 1680 mm
Mother Cart 2 in 1 - 1610 x 1680 mm
Mother Cart 2 in 1 - 1610 x 1680 mm
Mother Cart 2 in 1 - 1610 x 1680 mm
Mother Cart 2 in 1 - 1610 x 1680 mm
Mother Cart 2 in 1 - 1610 x 1680 mm
Q-100-1333

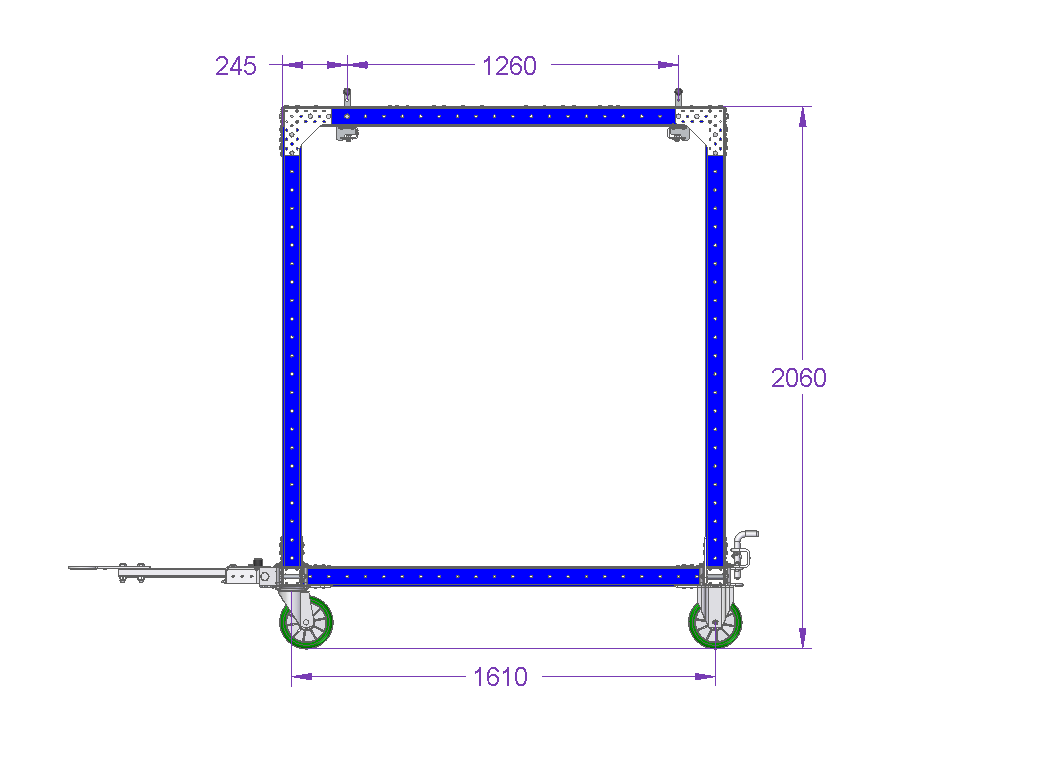

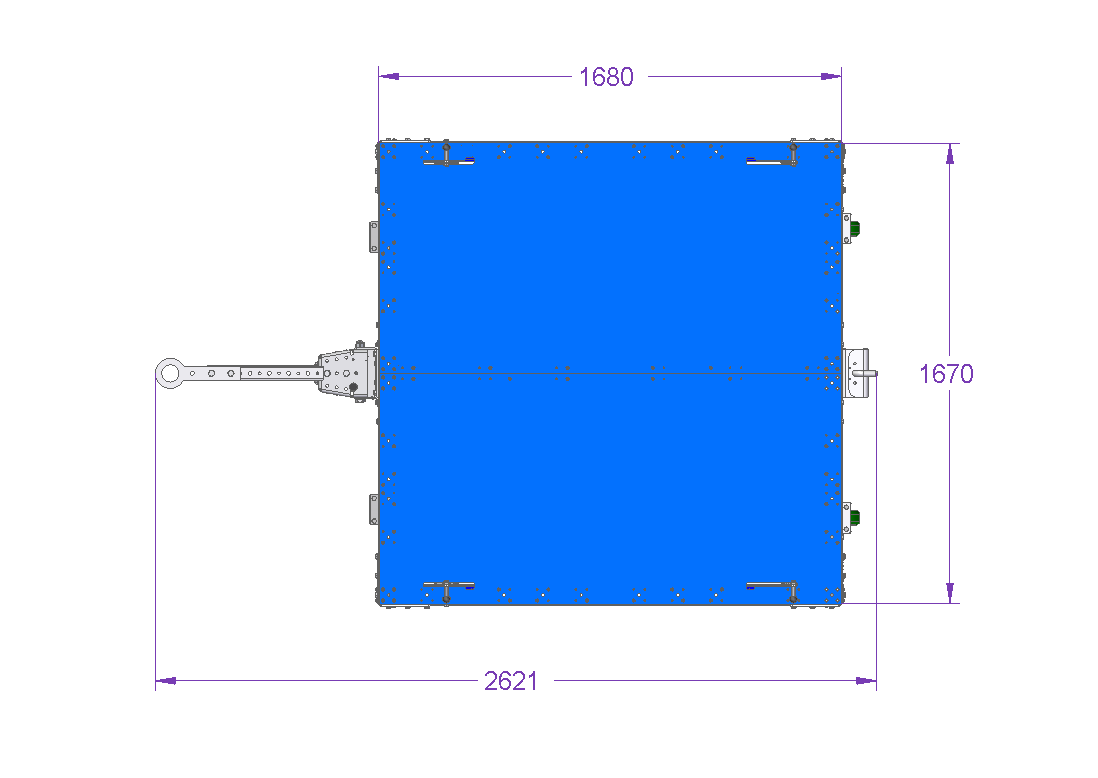

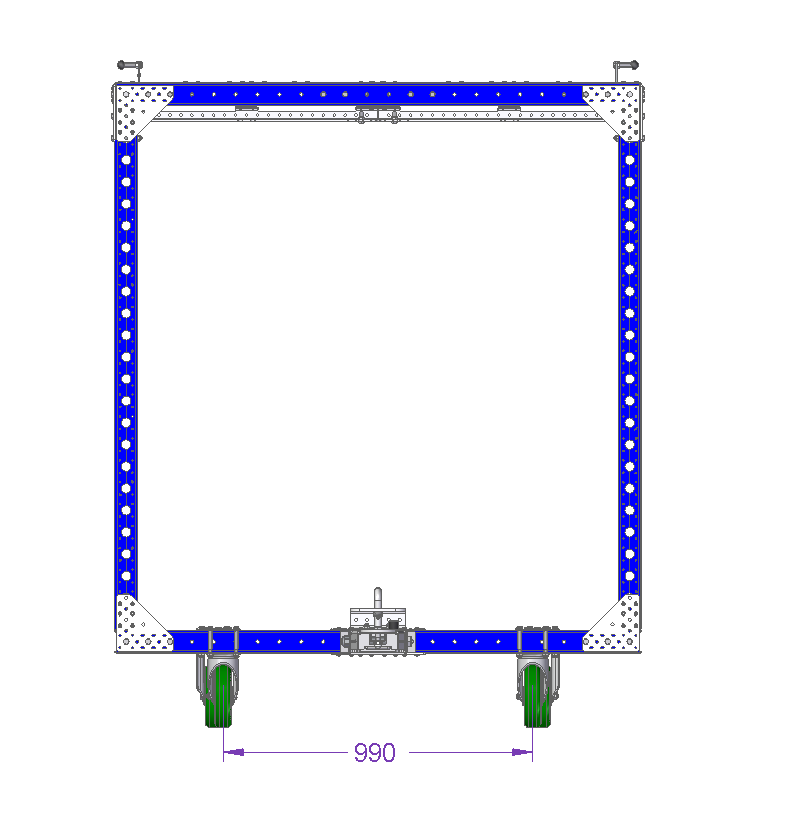

Mother Cart 2 in 1 - 1610 x 1680 mm

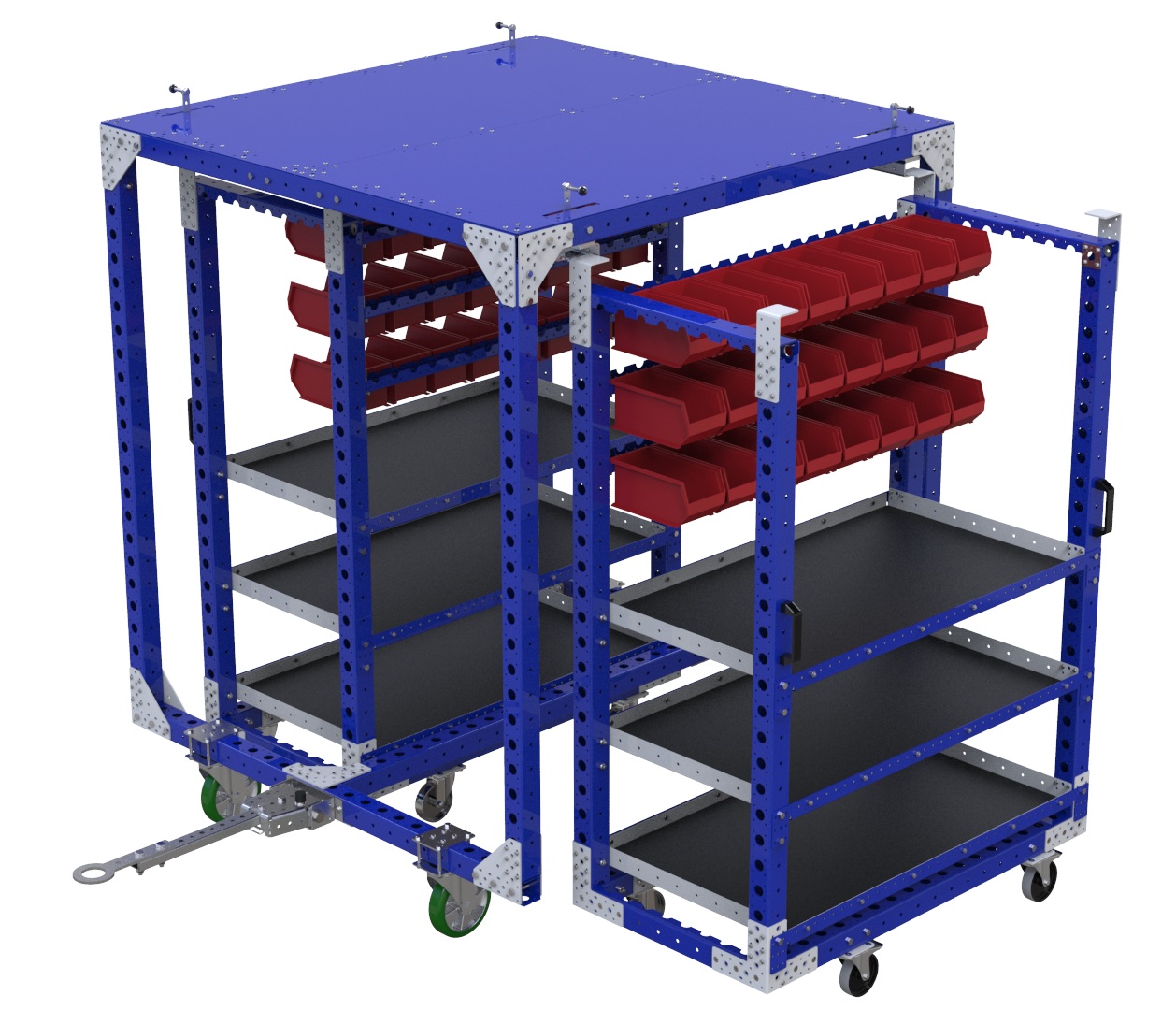

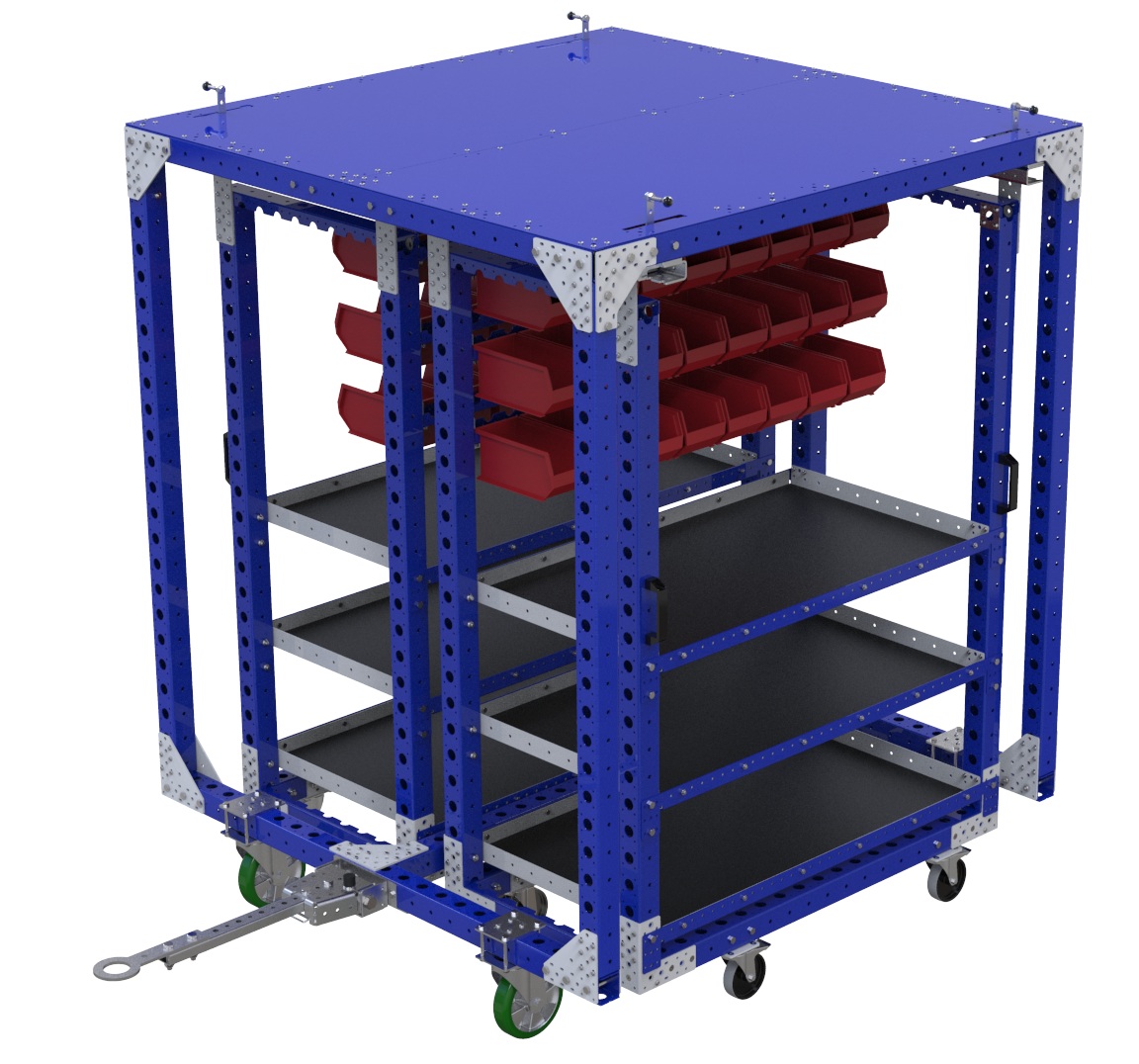

Tuggable mother cart designed to transport two daughter carts (Q-100-1369)

Technical specifications

Category: Mother Carts

Transportation method: Mother-Daughter Cart, Tugger

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Load capacity: 1323 lbs

Width: 66 inch

Caster size: 8 inch

Caster Type: Polyurethane

Type of tow bar: Tongue and Hitch

More info

Tuggable mother cart designed to transport two daughter carts (Q-100-1369). The mother daughter concept is most commonly used in a milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1540 mm FE 6 Q-001-1504
FlexBeam STS FE - 1680 mm 14 Q-001-1506
FlexPlate™ 12 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm Swivel 2 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
L Bracket Joint 8 Q-005-0031
Daughter Cart Catcher - 840 mm 4 Q-005-0077
M10 - Collet - 6 mm 4 Q-005-0105
Triangle Joint 12 Q-005-0483
Triangle Joint With Notch 8 Q-005-0832
Spherical Knob 4 Q-005-1146
64 mm FlexBeam™ Collet 40 Q-005-1426
Daughter Cart Locking Plate 4 Q-005-1730
M6 x 20 K6S 10.9 Round Head (black) 24 Q-006-1018
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 86 Q-006-1042
Hex Head - M10 x 95 mm 18 Q-006-1088
Hex Head - M10 x 90 mm 50 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Nut M10 4 Q-006-1195
Self Tapping Screw M6 Torx H60 x 16 240 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Hex Head Fully Threaded - M10 x 60 mm 4 Q-006-1502
Top Plate for Mother - 1610 x 840 mm 2 Q-016-0532
EUR modular Tow bar VKR - Lip - 520 mm 1 Q-017-0031
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 2,5 Inch 1 Q-017-1012
