Q-100-1336

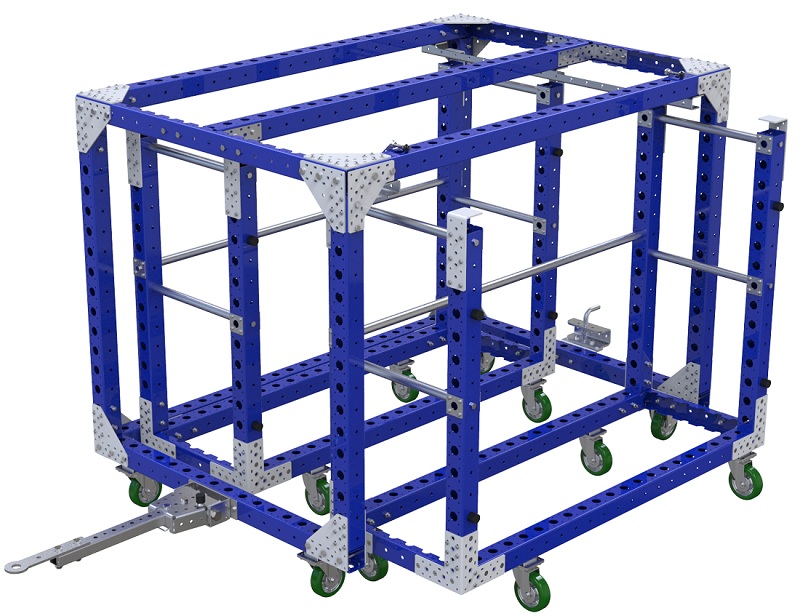

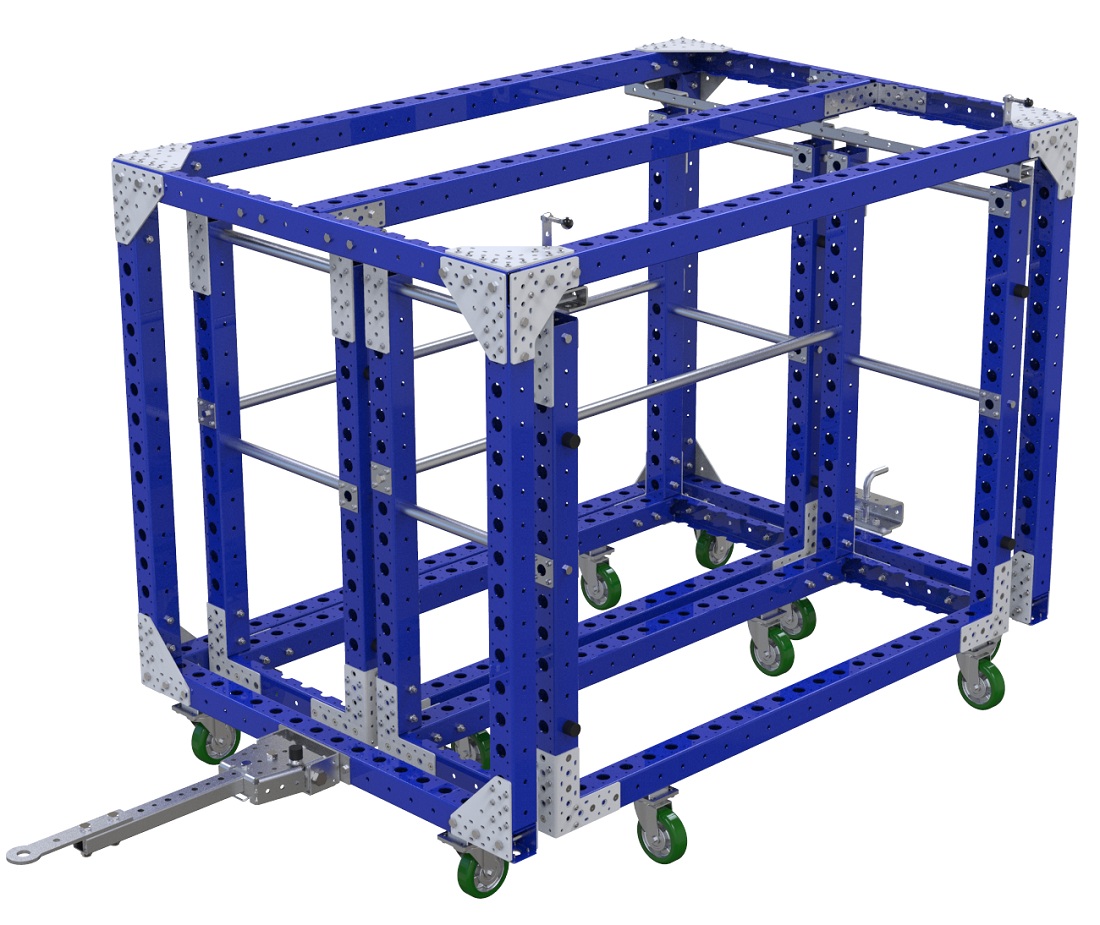

Mother Cart - 2 in 1 - 1820 x 1260 mm

Tuggable mother cart designed to transport two daughter carts (Q-100-1335)

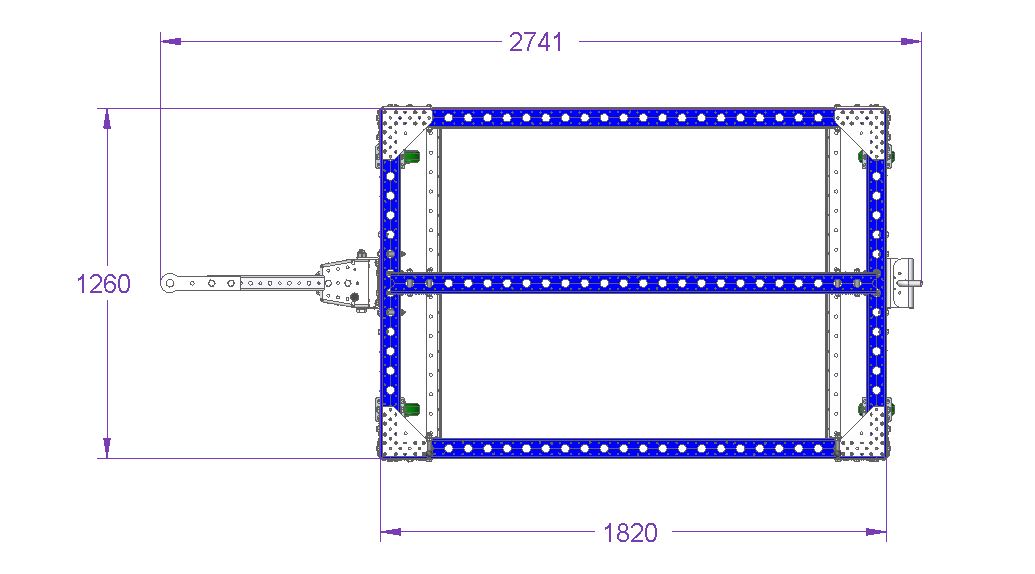

Technical specifications

Transportation method: Mother-Daughter Cart, Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 72 inch

Load capacity: 1323 lbs

Width: 52 inch

Caster size: 5 inch

Caster Type: Polyurethane

More info

Tuggable mother cart designed to transport two daughter carts (Q-100-1335). The mother daughter concept is most commonly used in a milk run system” meaning you use the mother cart to transport daughter carts filled with material from warehouse to assembly line and picking up empty daughter carts on the way back.”

Parts included
FlexBeam STS - 1750 mm 8 Q-001-1292
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ 1120 mm FE 8 Q-001-1401
FlexBeam™ 1260 mm FE 4 Q-001-1500
FlexPlate™ 12 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
L Bracket Joint 4 Q-005-0031
M10 - Collet - 6 mm 2 Q-005-0105
Daughter cart catcher - 1260 mm 2 Q-005-0165
Triangle Joint 18 Q-005-0483
Triangle Joint With Notch 2 Q-005-0832
Spherical Knob 2 Q-005-1146
64 mm FlexBeam™ Collet 34 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Daughter Cart Locking Plate 2 Q-005-1730
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 68 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 34 Q-006-1132
Locking Nut M8 16 Q-006-1181
Nut M10 2 Q-006-1195
Countersunk Allen Head - M6 x 30 mm 16 Q-006-1196
M8 x 16 mm Countersunk 16 Q-006-1214
Self Tapping Screw M6 Torx H60 x 16 156 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
