Mother cart - 4 in 1 high dollies - 1890 x 910 mm
Mother cart - 4 in 1 high dollies - 1890 x 910 mm
Mother cart - 4 in 1 high dollies - 1890 x 910 mm
Mother cart - 4 in 1 high dollies - 1890 x 910 mm
Mother cart - 4 in 1 high dollies - 1890 x 910 mm
Q-100-0851

Mother cart - 4 in 1 high dollies - 1890 x 910 mm

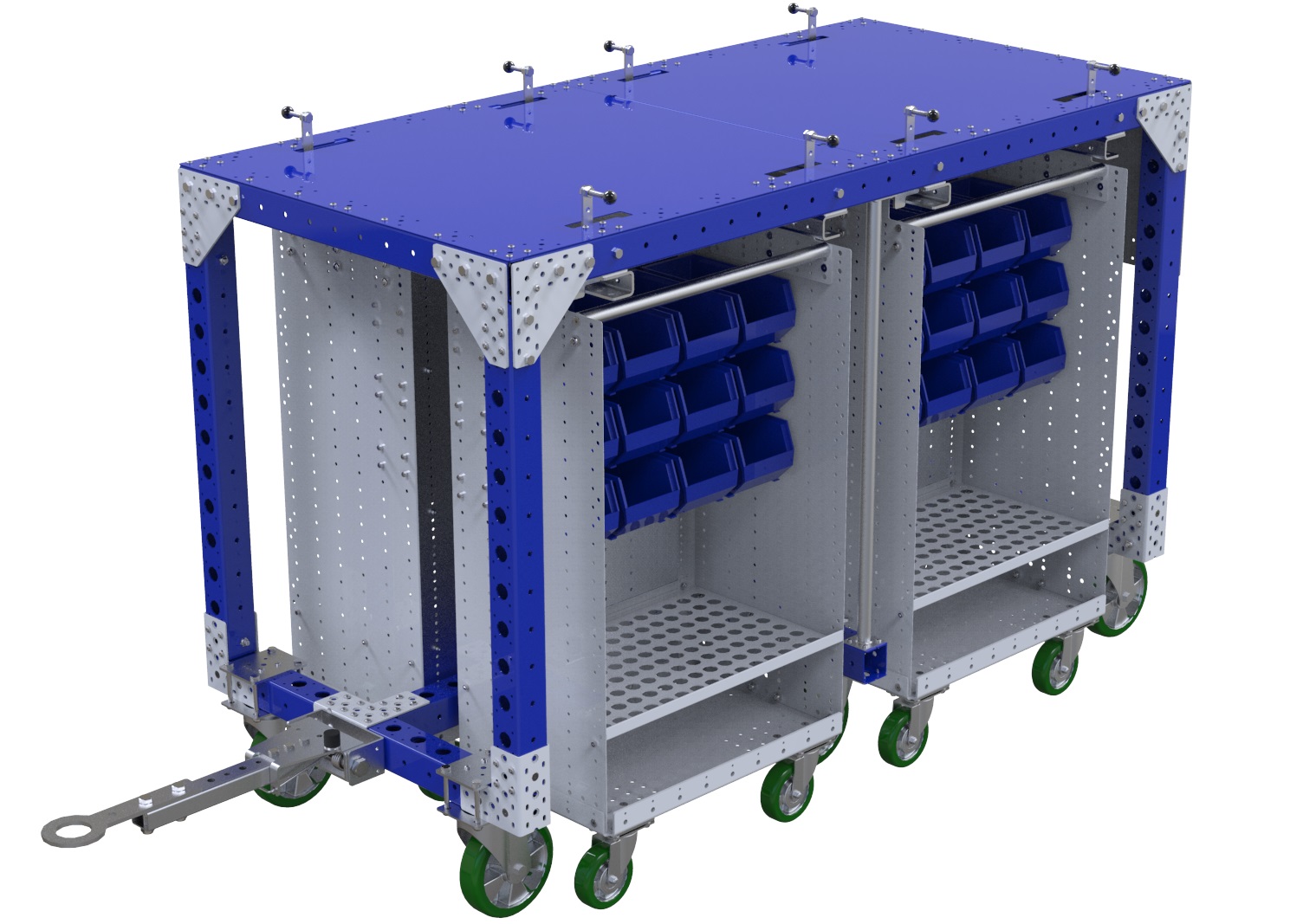

Mother frame designed to hold four tall daughter carts.

Technical specifications

Category: Mother Carts

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 36 inch

Length: 74 inch

Load capacity: 1199 lbs

Transportation method: Mother-Daughter Cart, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

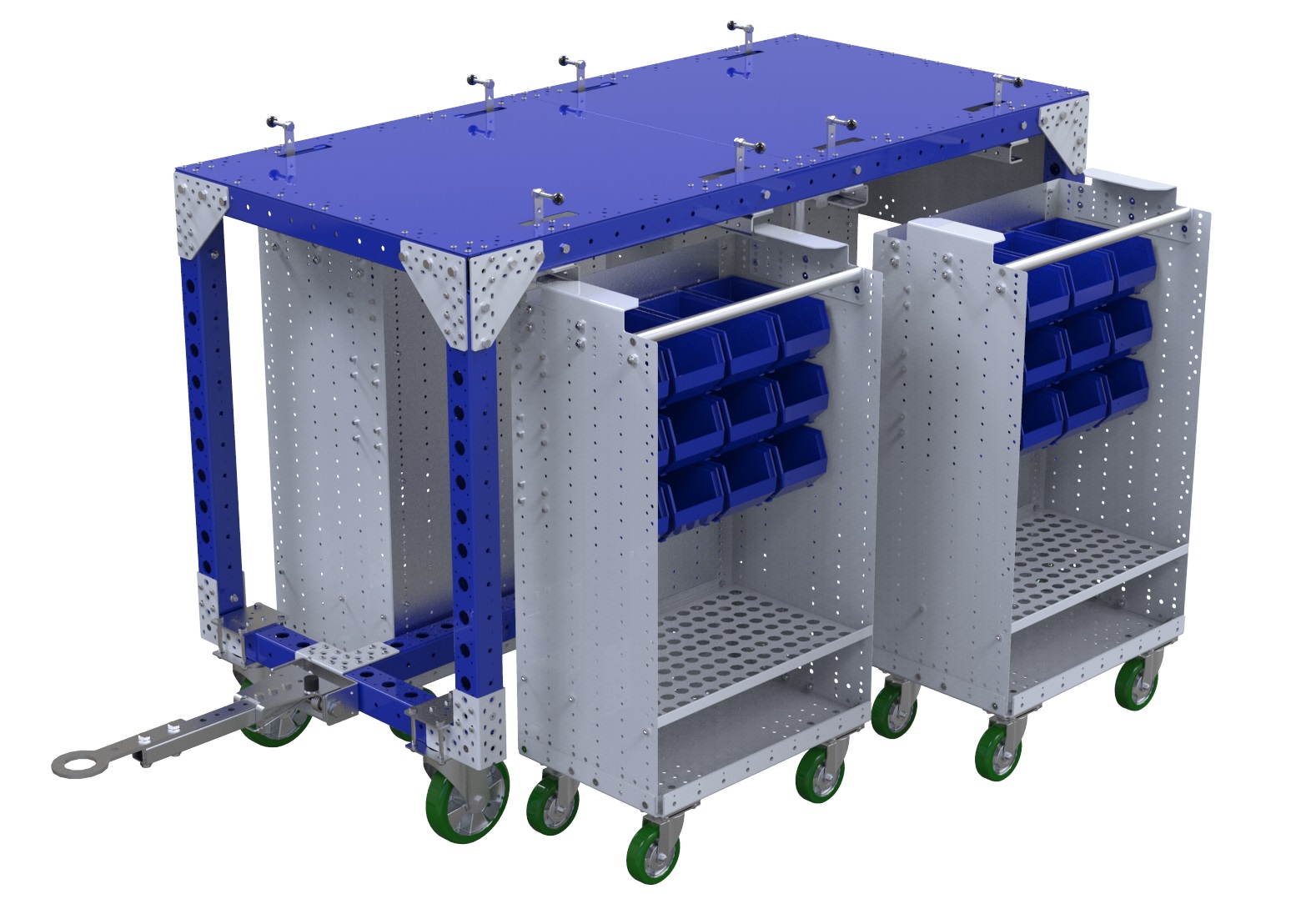

This 4 in 1 Mother Daughter Cart is designed to house 4 tall shelf carts within the frame. Each of the shelf carts can be unlocked from the mother farme and left at different assembly and work stations (learn more about mother-daughter solutions). This cart is equipped with a drop pin and hitch tow bar and is designed to be towed using a tugger train system (learn more about transitioning from forklifts to tugger trains here).

Parts included
FlexTube™ 910 mm 2 Q-000-1269
FlexBeam STS - 1820 mm 4 Q-001-1291
FlexBeam™ 910 mm FE 14 Q-001-1404
FlexBeam™ 420 mm FE 4 Q-001-1411
FlexBeam STS FE - 1750 mm 2 Q-001-1507
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 1 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Cross Joint - 240 x 240 mm 2 Q-005-0021
M10 - Collet - 6 mm 8 Q-005-0105
Triangle Joint 8 Q-005-0483
Daughter cart catcher - 910 mm 4 Q-005-0585
M8 Damper - GN352-30-25-M8-S-55 2 Q-005-0648
Towing Hole 2 Q-005-1056
Spherical Knob 8 Q-005-1146
64 mm FlexBeam™ Collet 28 Q-005-1426
Heavy Duty Joint M10 6 Q-005-1580
Daughter Cart Locking Plate 8 Q-005-1730
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 2 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 92 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 10 Q-006-1088
Hex Head - M10 x 90 mm 38 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 2 Q-006-1181
Nut M10 8 Q-006-1195
Hex Head Fully Threaded - M10 x 16 3 Q-006-1245
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 324 Q-006-1384
Hex Head Fully Threaded - M10 x 60 mm 11 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Top plate - 910 x 945 mm 2 Q-016-0428
Steel lable plate - 910 x 420 mm 1 Q-016-0429
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 2,5 Inch 1 Q-017-1012
