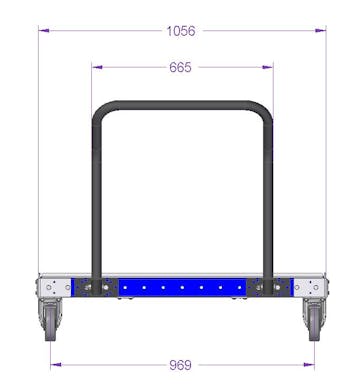

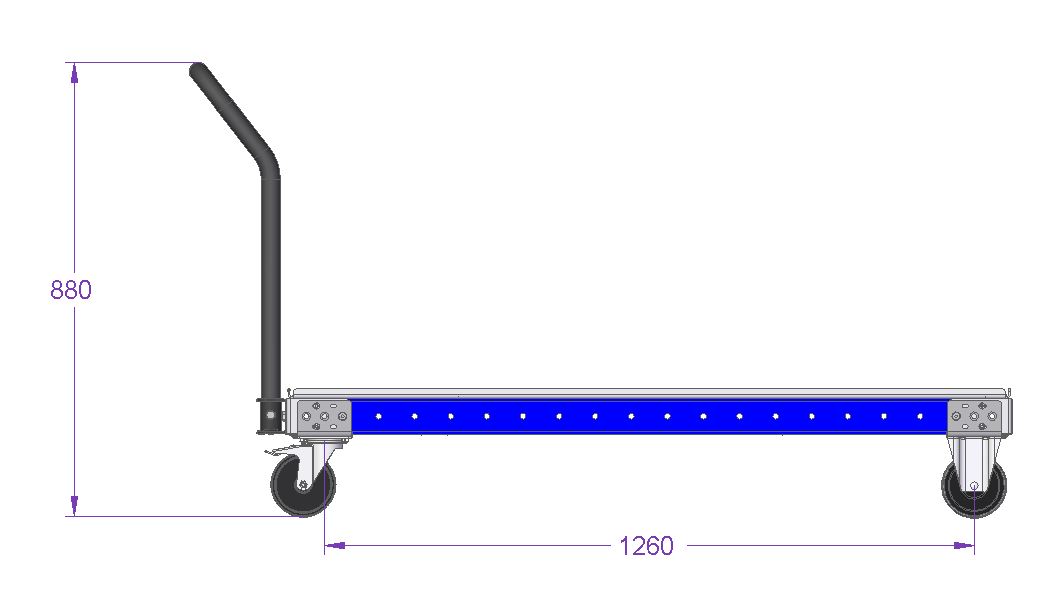

Pallet Cart -1050 x 1400 mm
Pallet Cart -1050 x 1400 mm
Pallet Cart -1050 x 1400 mm
Q-100-0545

Pallet Cart -1050 x 1400 mm

Standard pallet cart with added steel flat deck.

Technical specifications

Category: Flat Deck

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 41 inch

Length: 55 inch

Load capacity: 882 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Pallets and Containers

More info

This standard pallet cart is designed to transport pallets and containers. It is equipped with an ergonomic handlebar for easier manual transportation. It comes equipped with two swivel casters with brakes and two fixec asters for easier handling.

Parts included
FlexBeam™ - 1330 mm 6 Q-001-1298
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
64 mm FlexBeam™ Collet 4 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 18 Q-006-1042
Locking Nut M8 16 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 12 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 84 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar Attachment EUR 2 Q-015-0026
Tube for Handlebar EUR 1 Q-015-0033
