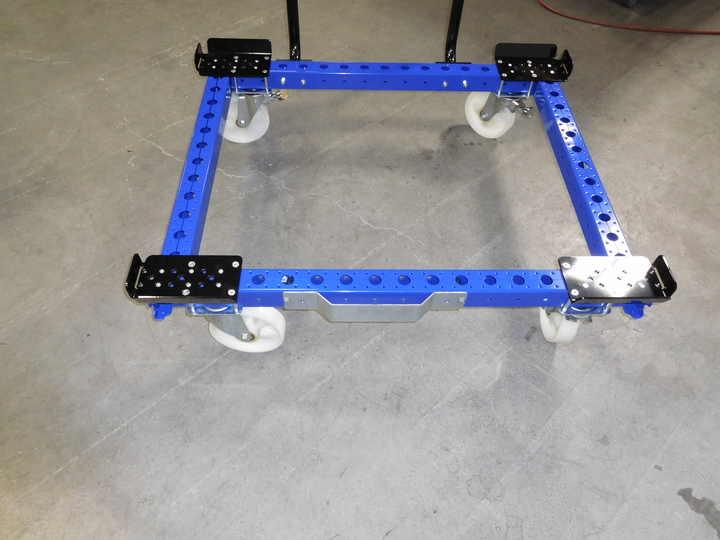

Pallet Cart - 1030 x 1260 mm

Standard pallet cart without flat deck.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Width: 41 inch

Caster size: 8 inch

Caster Type: Nylon

More info

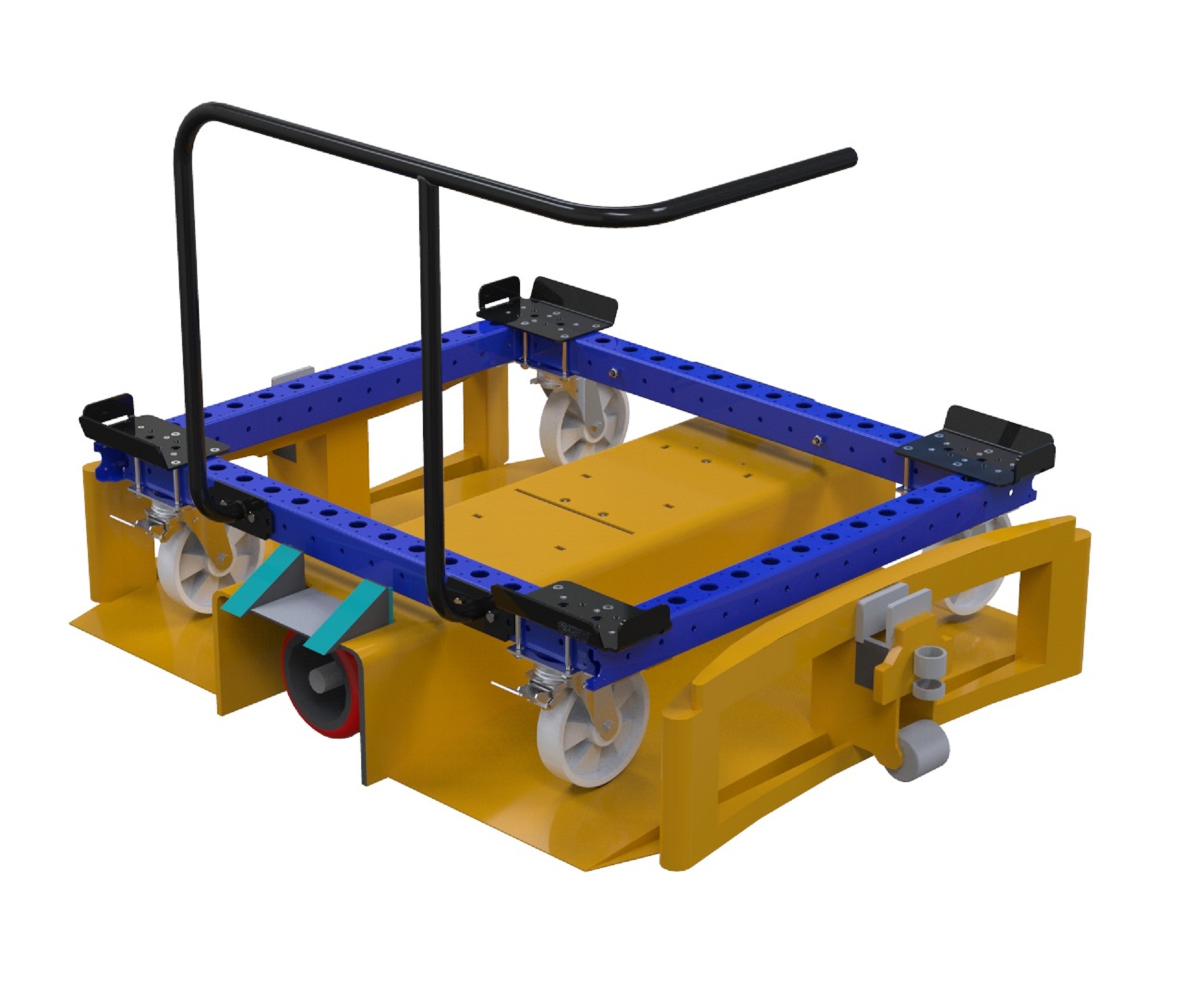

This pallet cart is designed to transport pallets and containers. It is equipped with a two sided handlebar for easier manual transportation. This cart is designed to fit into the STILL Liftrunner tugger train. It has four high quality polyamide casters for easier movability.

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 8 Q-002-1001
Polyamide Caster 200 mm with Brake 2 Q-004-1351
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Collet - 35 mm 2 Q-005-0028
Pallet Guide Wheel Attachment Right 2 Q-005-0062
Pallet Guide Wheel Attachment Left 2 Q-005-0063
Tugger Train opener - 35 mm 1 Q-005-0274
64 mm FlexBeam™ Collet 6 Q-005-1426
Locking Nut M10 24 Q-006-1042
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Two-Sided Handle 1190 FlexBeam™ 1 Q-015-1025
