Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Q-100-1033

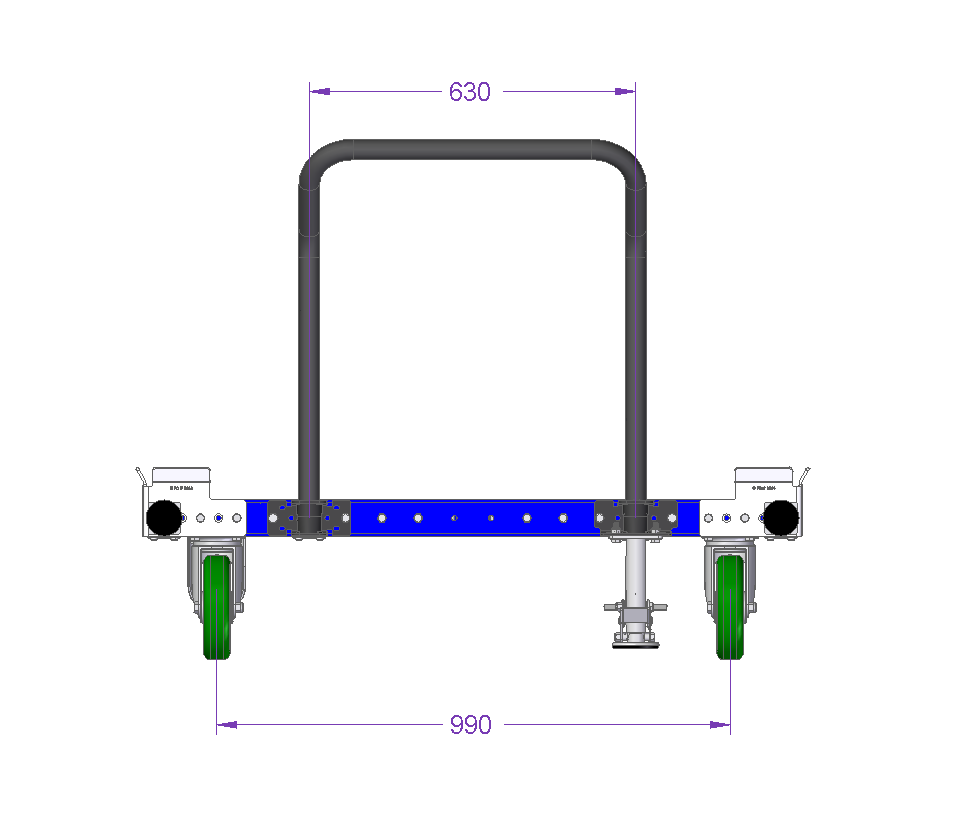

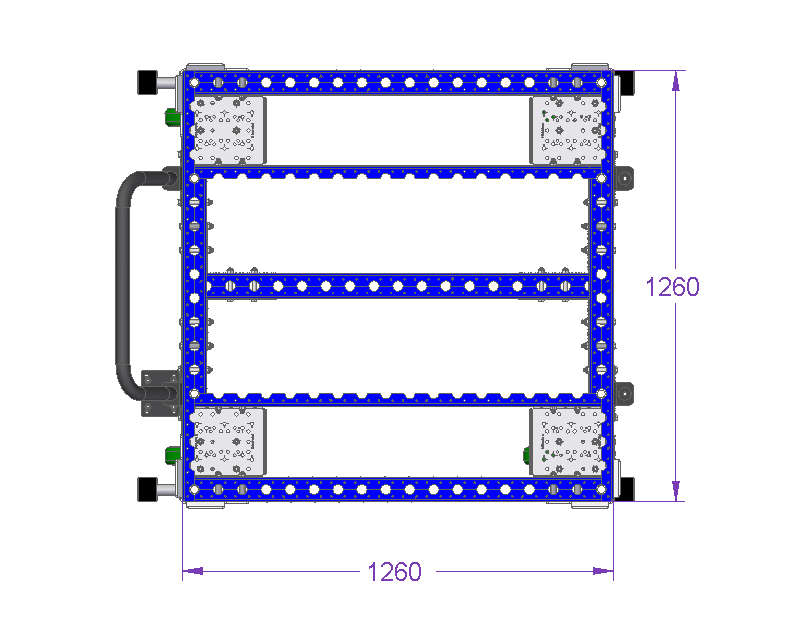

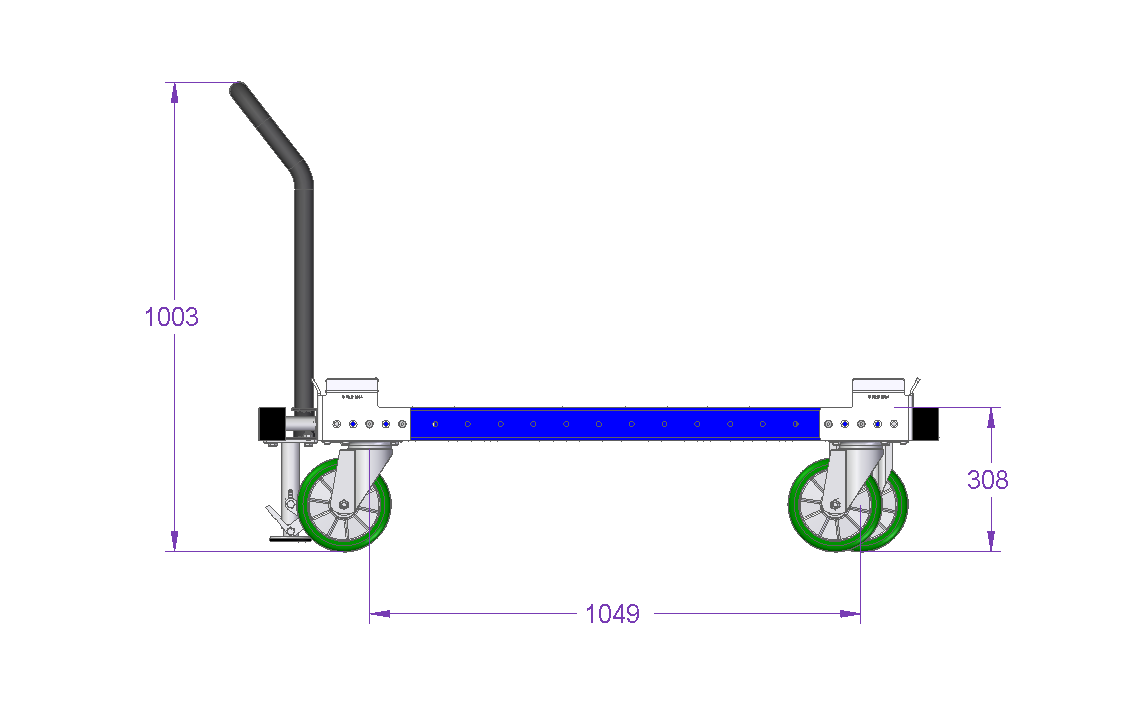

Pallet Cart - 1260 x 1260 mm

Standard push cart with four rubber dampers attached.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Width: 50 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This pallet cart is designed for heavy fully loaded pallets and containers. It is equipped with a handle bar and is designed for manually pushing the pallets through the facility by an operator. It is equipped with four rubber dampers, so that more than one of these pallet carts can be pushed onto each other.

Parts included
FlexTube (One plate)- Locking nut - 70 mm 2 Q-000-0149
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Caster Polyurethane - 200 mm 3 Q-004-1100
Caster Polyurethane 200 mm Fixed 1 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
Angle corner plate - 5 mm 4 Q-005-0227
Rubber damper - 70 x 55 mm 4 Q-005-0356
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
Hex Head - M10 x 25 mm 14 Q-006-1041
Locking Nut M10 64 Q-006-1042
Washer M10 32 Q-006-1043
Hex Head - M10 x 90 mm 18 Q-006-1132
Hex Head - M10 x 30 mm 20 Q-006-1161
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 3 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
