Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Q-100-1079

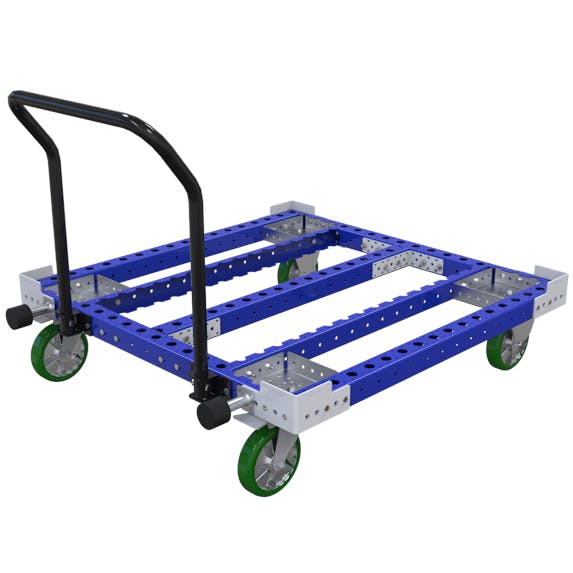

Pallet Cart - 1260 x 1260 mm

Pallet push cart equipped with a handlebar and rubber bumpers to prevent carts from hitting one another.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

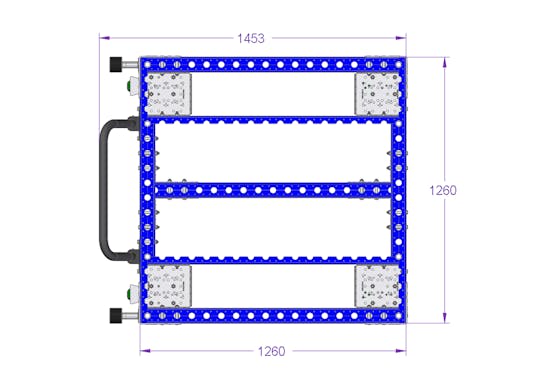

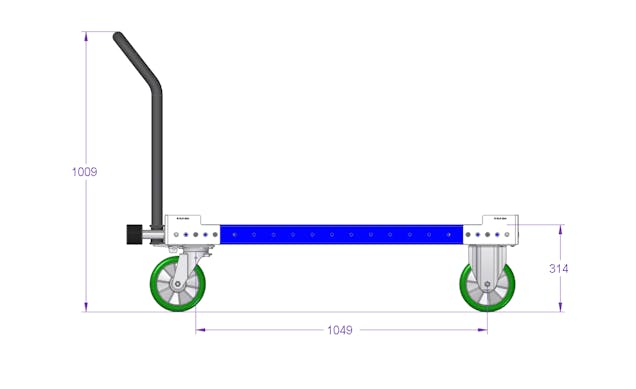

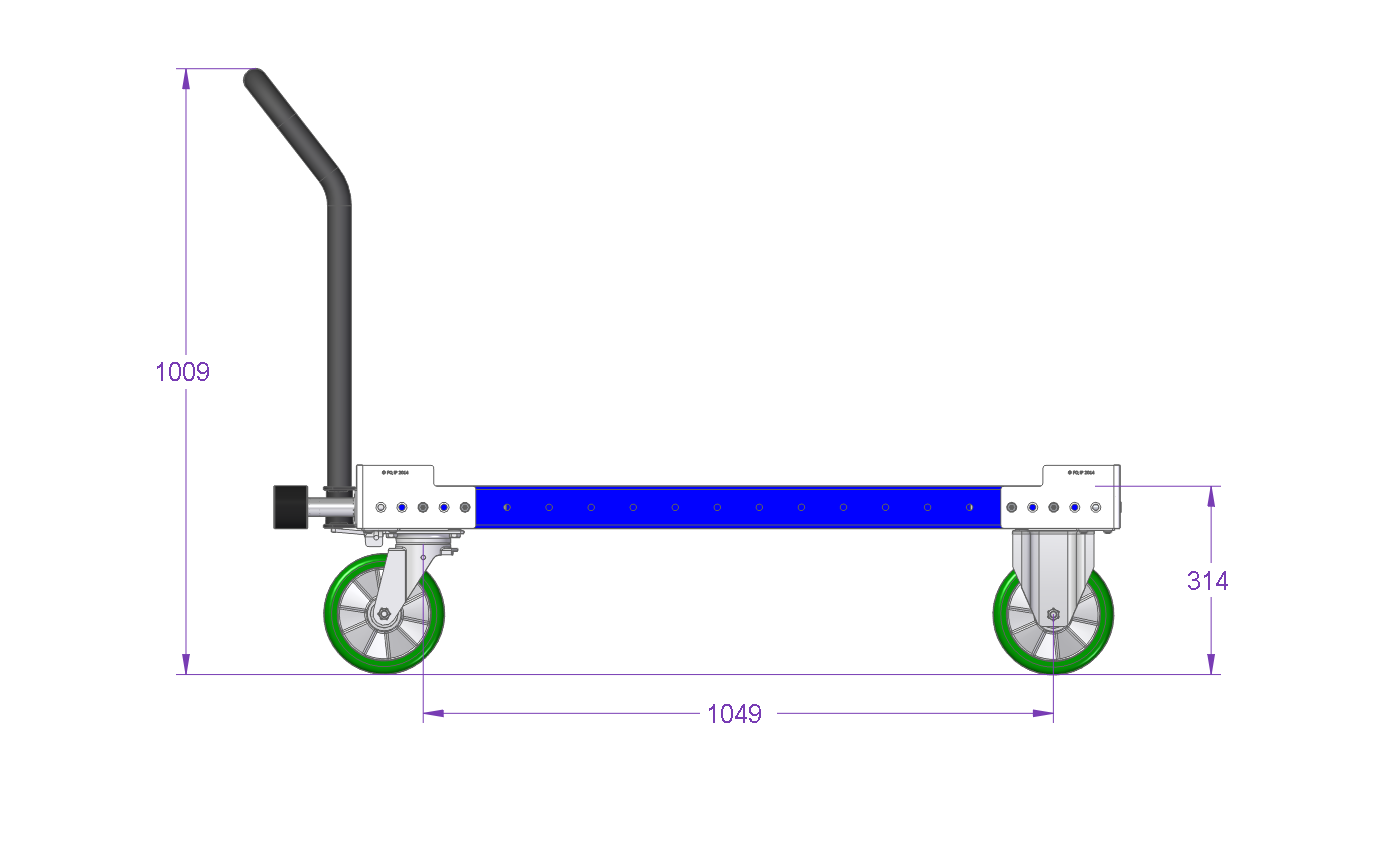

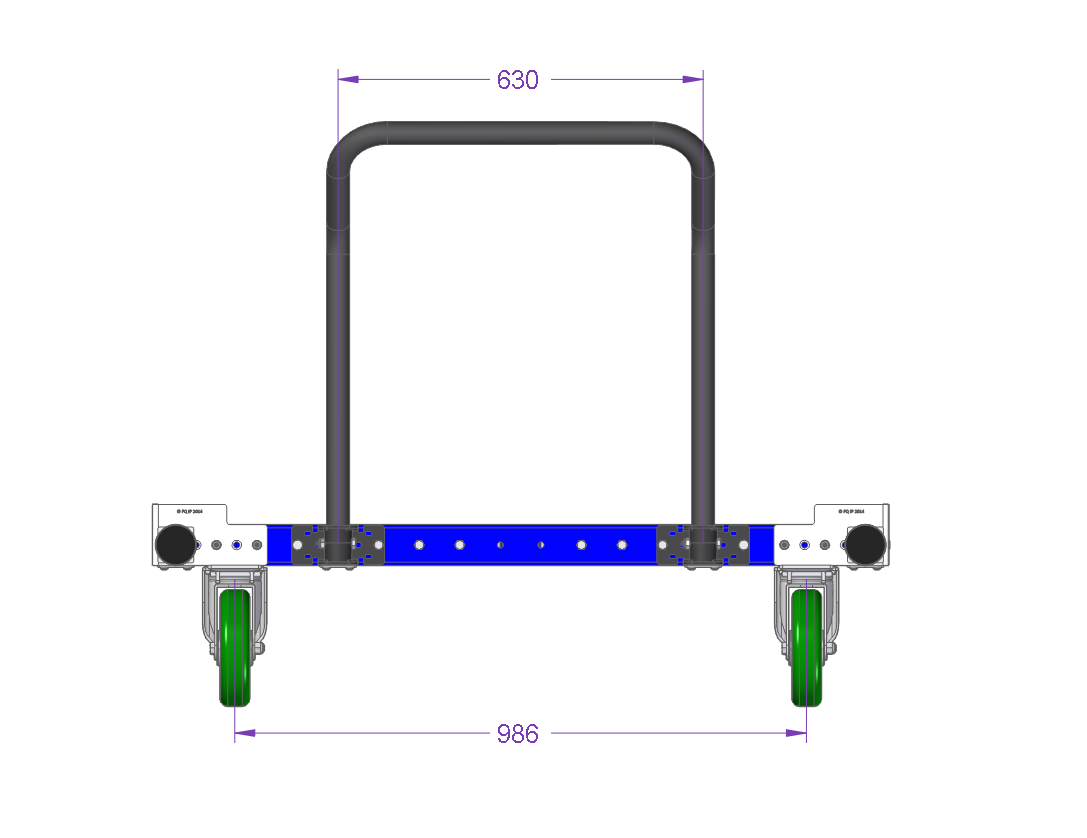

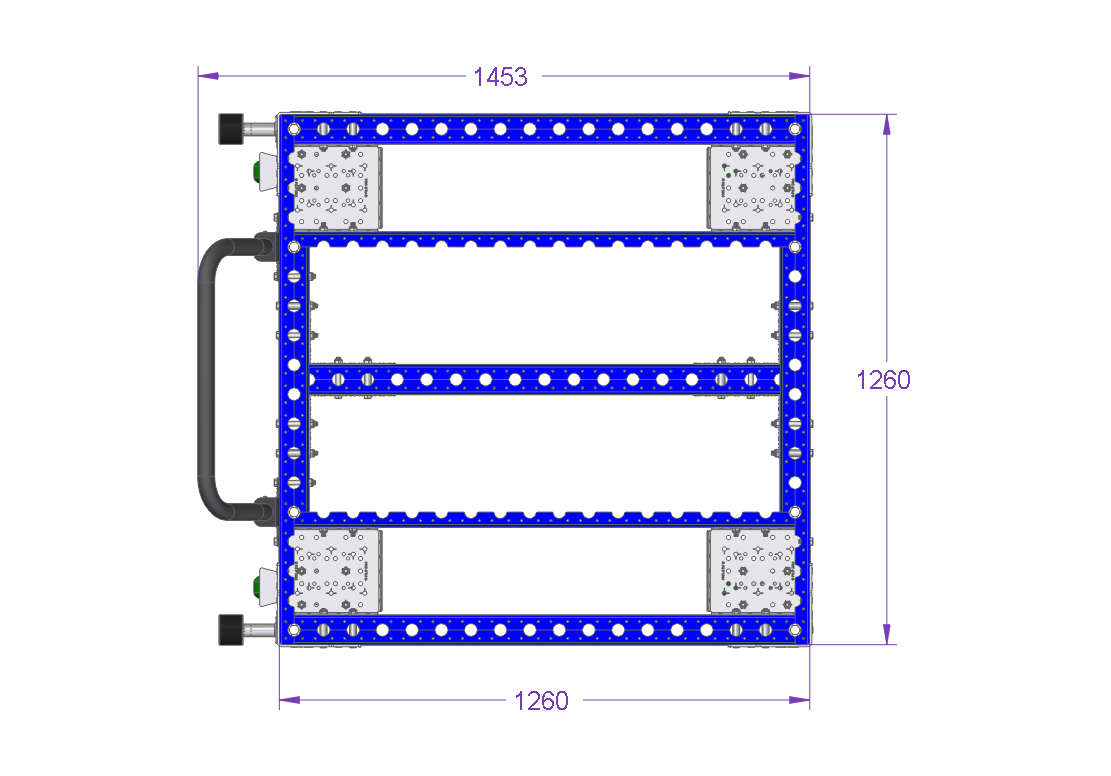

Width: 50 inch

Length: 50 inch

Load capacity: 2998 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This pallet push pallet cart was designed to be transported either by hand or in a frame. Since the cart isin’t equipped with a flat deck it can only hold one pallet/container size. The bumpers in the back has been added to prevent carts from hitting each other when parked. It comes equipped with a handlebar and four polyurethane casters, two fixed and two swivel with brake making it easy to maneuver.

Parts included
FlexTube (One Plate) - Locking nut - 82.5 mm 2 Q-000-0156
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Caster Polyurethan Fix Brake - 200 mm 2 Q-004-1111
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
L Bracket Joint 4 Q-005-0031
Spring Threaded Tube Connectors 2 Q-005-0469
Rubber Damper Threaded Stud - 70 x 55 mm 2 Q-005-0743
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 14 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Hex Head - M10 x 25 mm 14 Q-006-1041
Locking Nut M10 62 Q-006-1042
Washer M10 80 Q-006-1043
Hex Head - M10 x 90 mm 14 Q-006-1132
Hex Head - M10 x 30 mm 16 Q-006-1161
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
