Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Pallet Cart - 1260 x 1260 mm
Q-100-1170

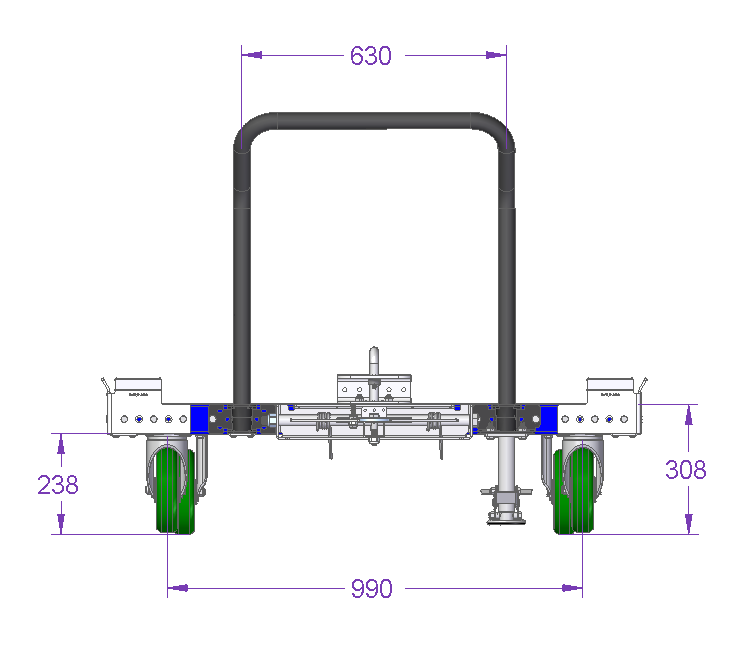

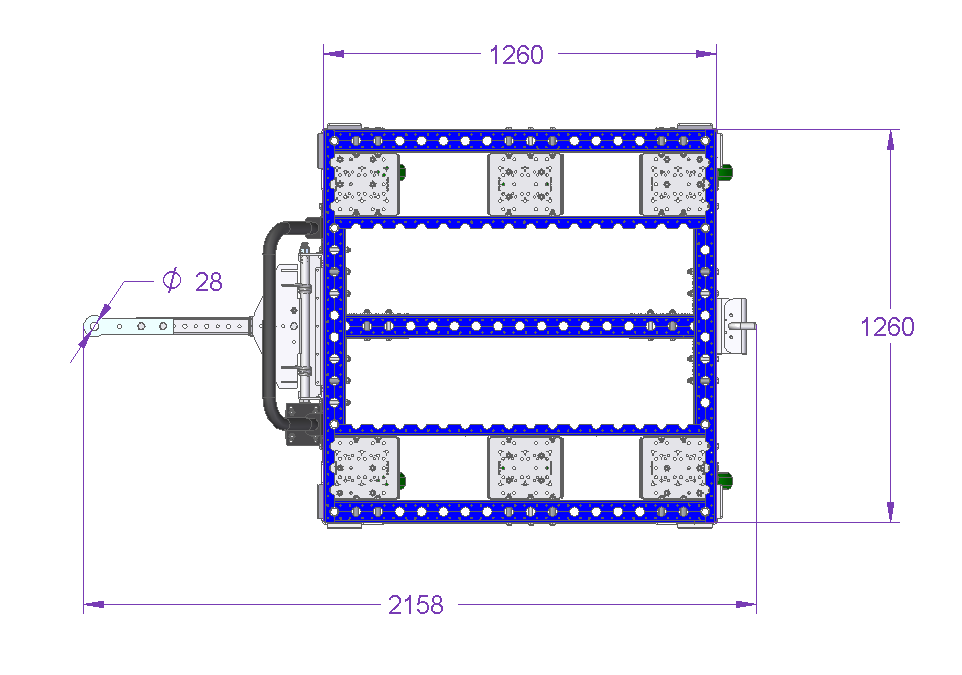

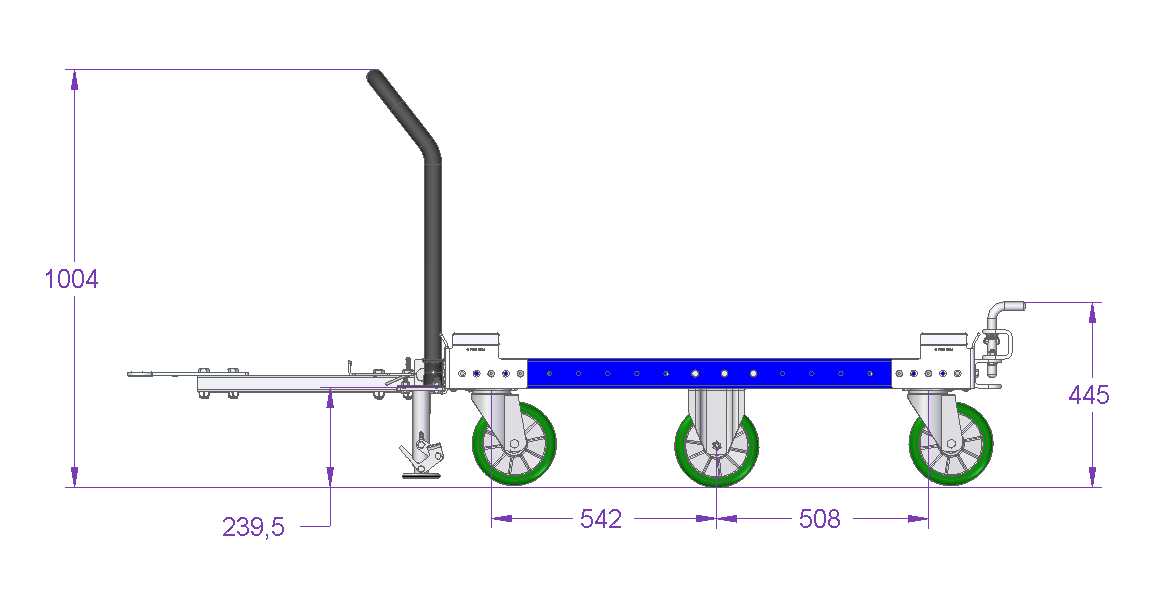

Pallet Cart - 1260 x 1260 mm

Tuggable pallet cart equipped with a handlebar, floor brake, and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 50 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable pallet/container cart, since it doesn’t have a flatbed it can only be used for one container size. The cart is equipped with a handlebar, floor brake, and six high-quality polyurethane casters which give the cart excellent tracking properties and silent movement when connected to a train

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1120 mm 2 Q-001-1301
FlexBeam™ 630 mm 2 Q-001-1308
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 4 Q-005-0031
Angle corner plate - 5 mm 4 Q-005-0227
Spring for Tow Bar 2 Q-005-1070
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 18 Q-005-1426
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 28 Q-006-1041
Locking Nut M10 89 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head - M10 x 20 mm 16 Q-006-1232
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
