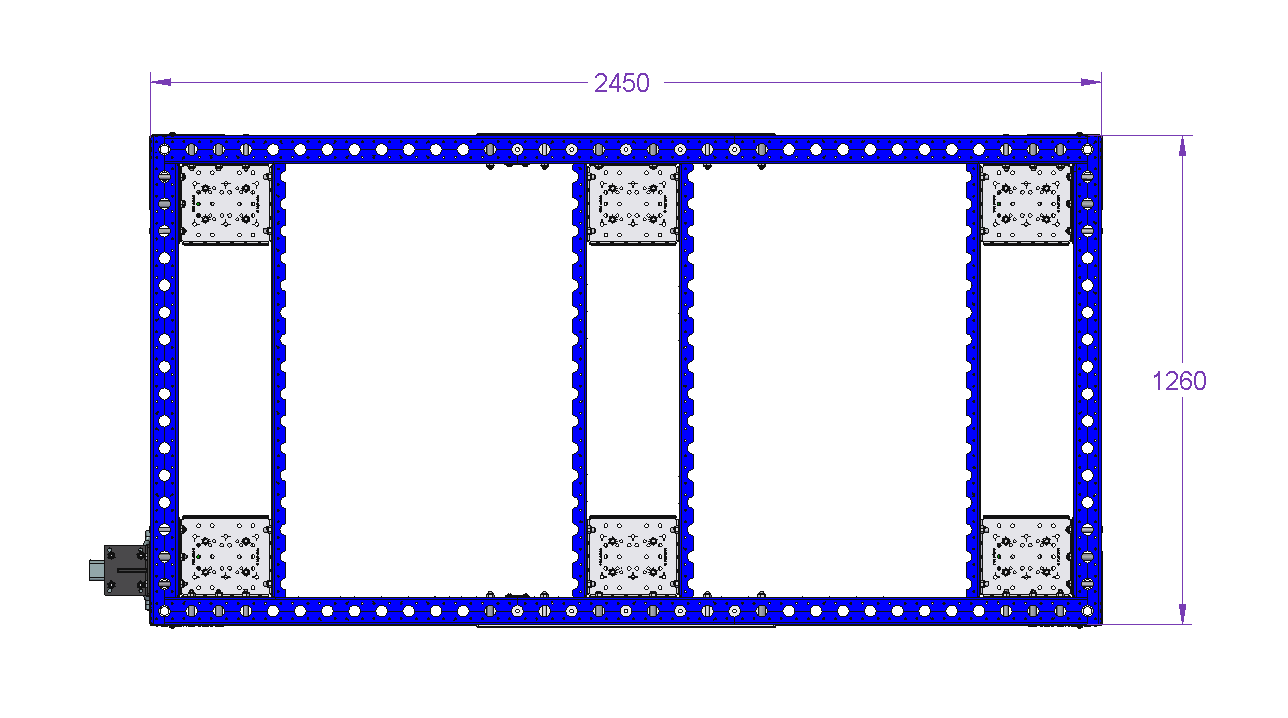

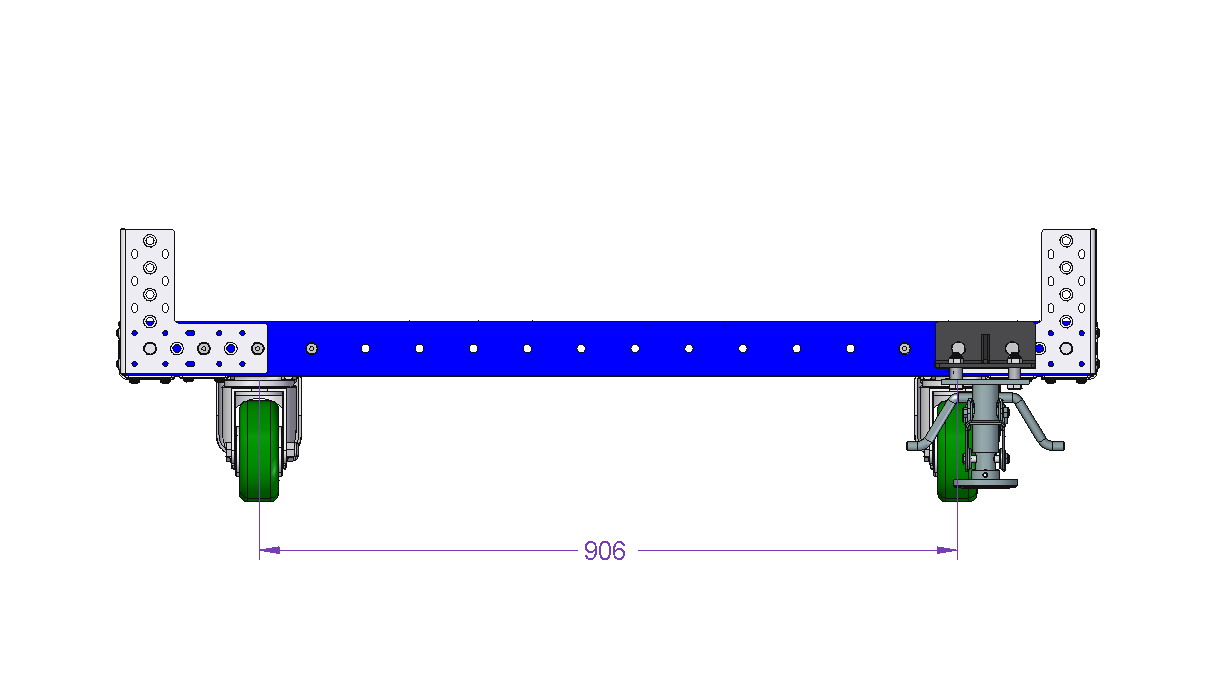

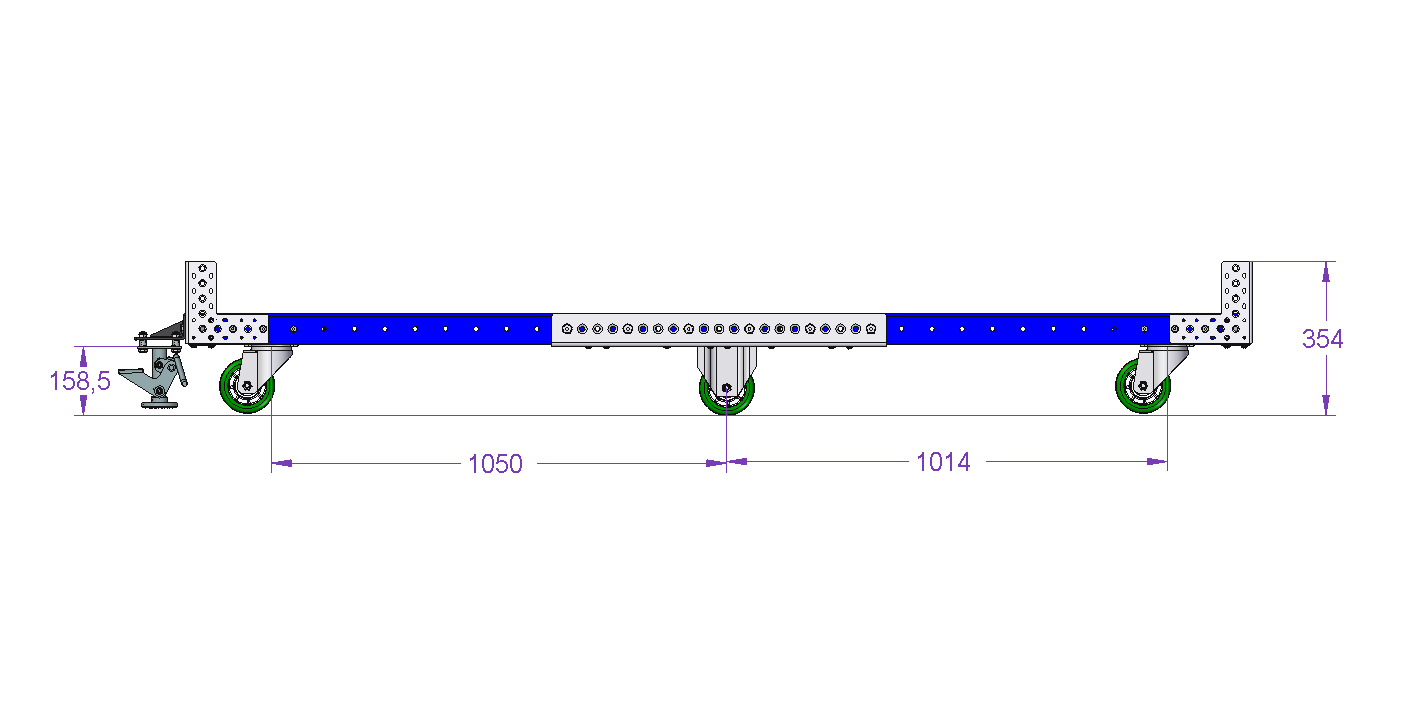

Pallet Cart - 1260 x 2450 mm
Pallet Cart - 1260 x 2450 mm
Pallet Cart - 1260 x 2450 mm
Pallet Cart - 1260 x 2450 mm
Q-100-0887

Pallet Cart - 1260 x 2450 mm

Large pallet cat used for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 96 inch

Load capacity: 1499 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This large pallet cart is used for transporting containers and pallets. This industrial pallet cart is equipped with a floor lock brake developed by FlexQube.

Parts included
FlexBeam™ - 1470 mm 4 Q-001-1296
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 1120 mm FE 6 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 10 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Wheel Attachment Box 6 Q-005-1079
Reinforcement Plate - 770 mm 2 Q-005-1112
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 20 Q-005-1426
M10 Collet - 15 mm 4 Q-006-0027
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 84 Q-006-1042
Countersunk MF6S - M10 x 90 mm 12 Q-006-1135
Hex Head - M10 x 40 4 Q-006-1208
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
