Q-100-0334

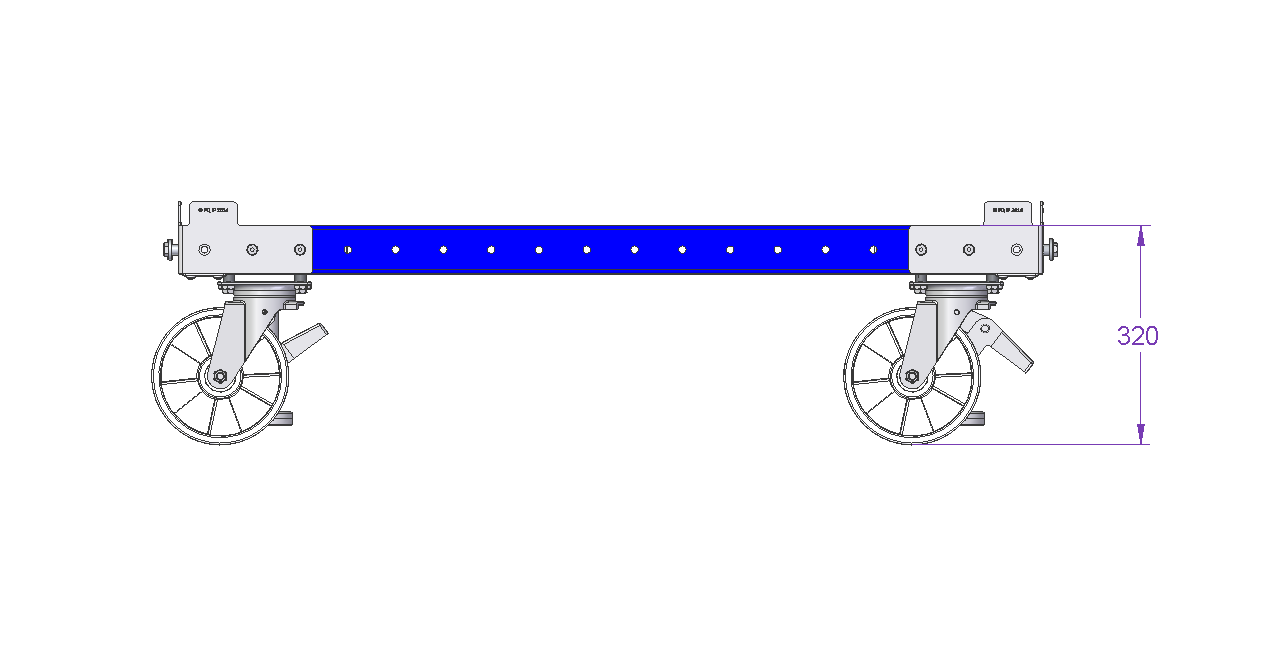

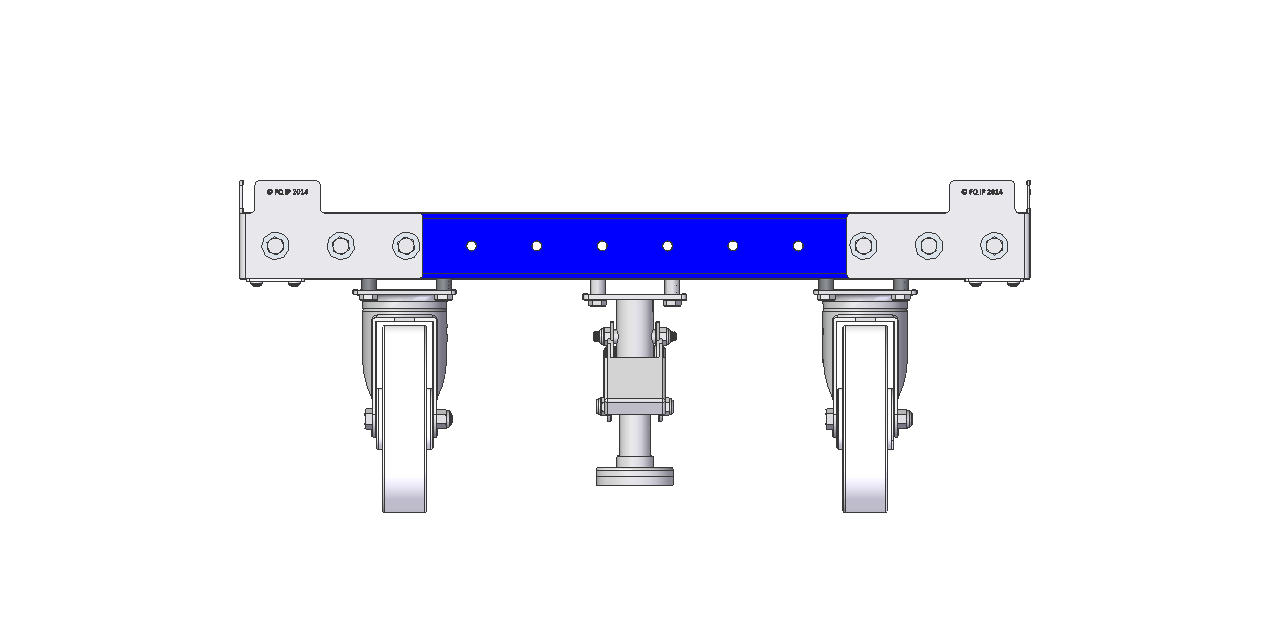

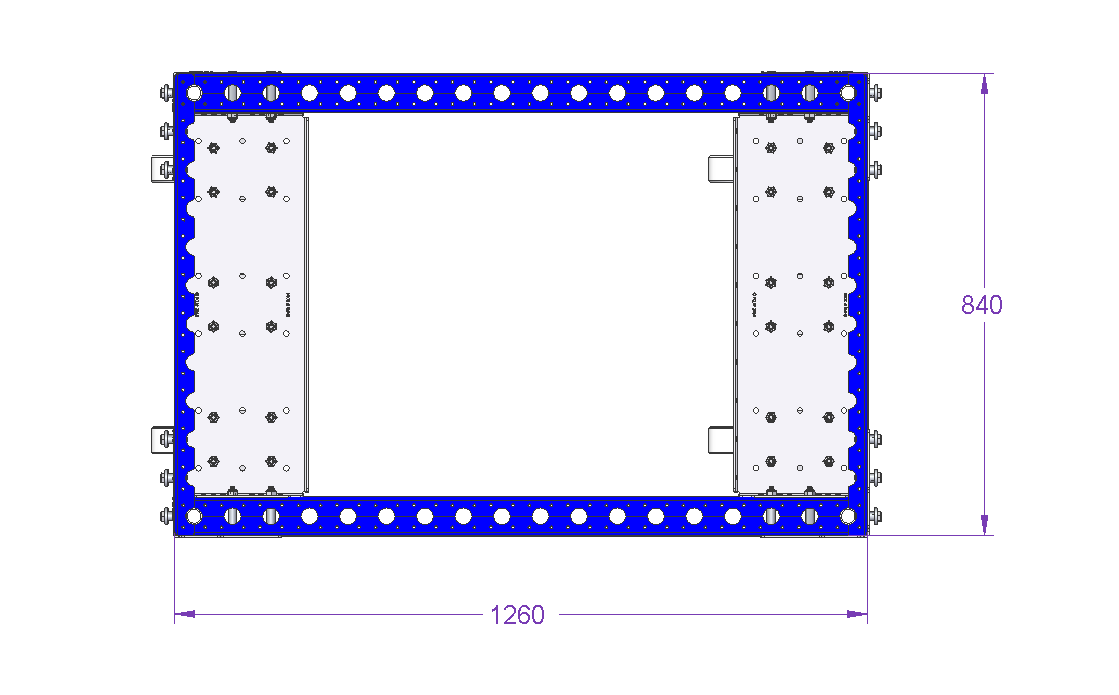

Pallet Cart 1260 x 840 mm

Cart for pallets and containers, equipped with two floor brakes and four nylon swivel casters, prepared with removable handlebar attachments.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 50 inch

Load capacity: 1102 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This cart was designed to transport pallet and containers and comes equipped with two floor brakes and four nylon swivel casters making it easy maneuver in tight areas. The cart is prepared for a removable handlebar which can be moved attached on both sides.

Parts included

FlexBeam™ 1190 mm 4 Q-001-1300

FlexBeam™ 840 mm FE 2 Q-001-1405

FlexPlate™ 4 Q-002-1001

Polyamide Caster 200 mm without Brake 4 Q-004-1352

Floor Brake LTL - 200 mm 2 Q-004-1359

Wheel Attachment Box - 700 mm 2 Q-005-1004

Pallet Guide Corner Plate 4 Q-005-1096

Caster Distance Collet - 18 mm 16 Q-005-1396

64 mm FlexBeam™ Collet 8 Q-005-1426

Locking Nut M10 44 Q-006-1042

Hex Head - M10 x 40 28 Q-006-1208

Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343

Extra Low Head - M10 x 90 mm 8 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384

Washer - 30 x 5 mm 12 Q-015-1046

Collet - 11.5 mm 12 Q-015-1048
