Pallet Cart - 1540 x 980 mm
Pallet Cart - 1540 x 980 mm
Pallet Cart - 1540 x 980 mm
Pallet Cart - 1540 x 980 mm
Q-100-0902

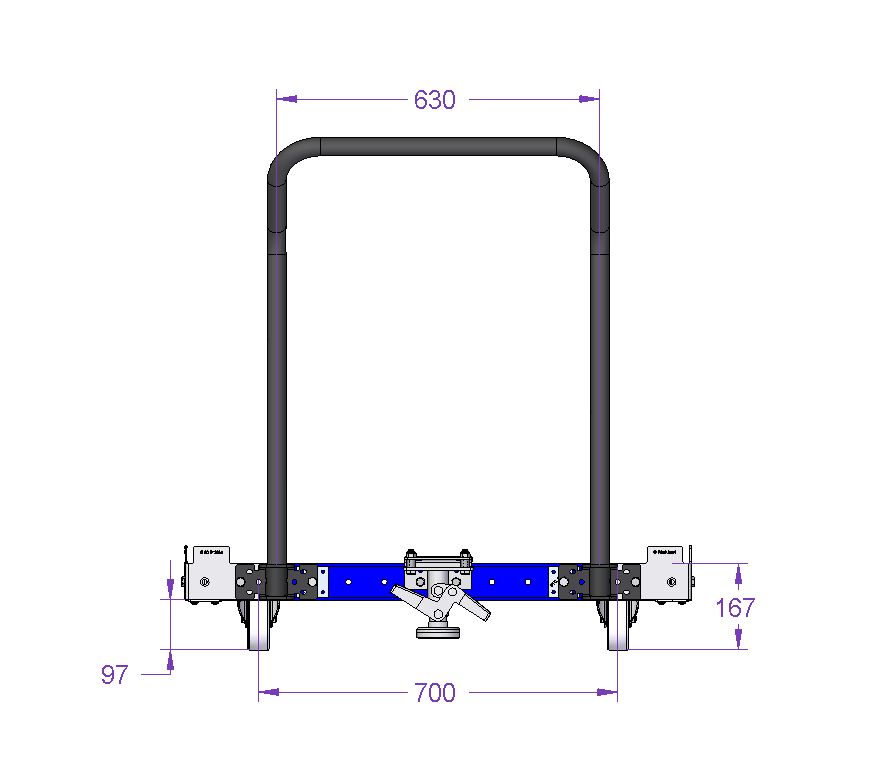

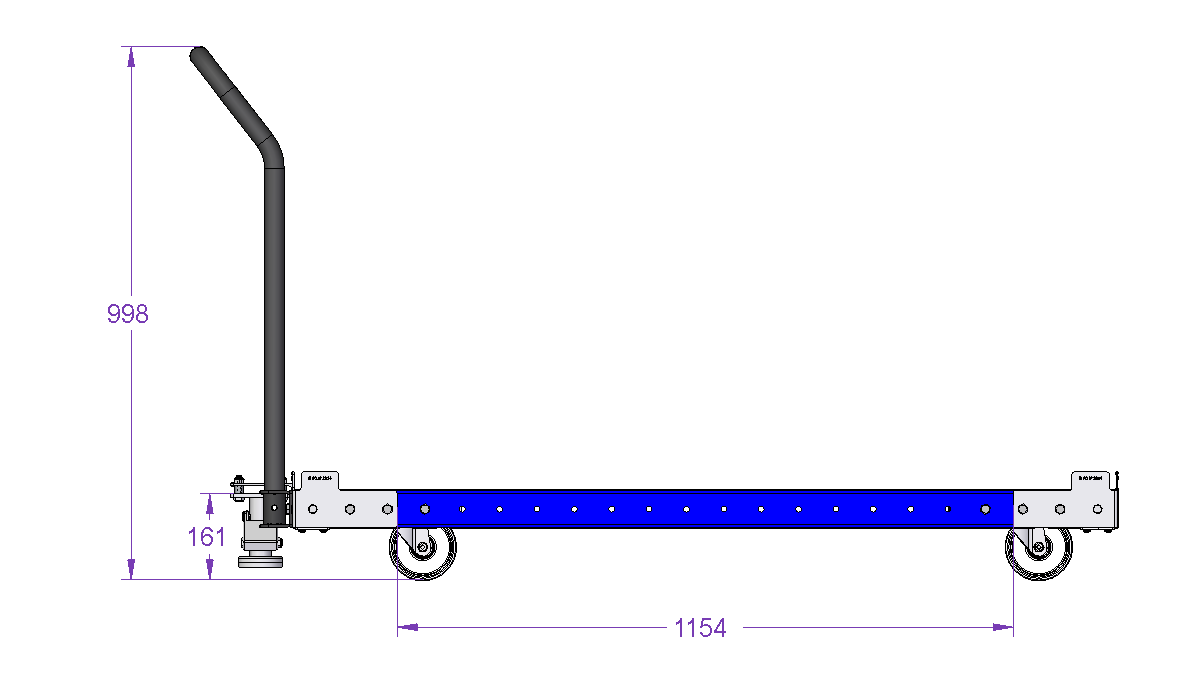

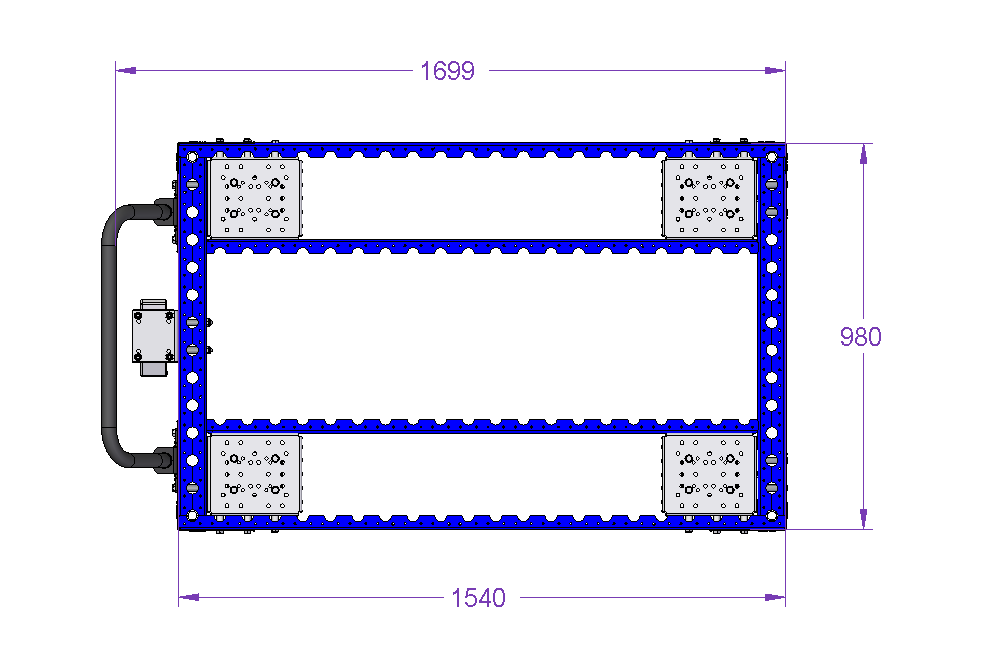

Pallet Cart - 1540 x 980 mm

Simply designed push cart designed for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 39 inch

Length: 61 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Nylon

Type of Load: Pallets and Containers

More info

This pallet cart without flat deck is designed for transporting containers and pallets. This industrial pallet cart is equipped with a floor lock brake developed by FlexQube®. It also comes with an ergonomic handlebar for easier pushing by an operator.

Parts included
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ - 1400 mm FE 2 Q-001-1502
FlexBeam™ 1540 mm FE 2 Q-001-1504
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 10 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Polyamide Caster - 125 mm 4 Q-004-1356
Floor Brake LTL - 125 mm 1 Q-004-1360
Collet - 35 mm 12 Q-005-0028
Floor brake plate 1 Q-005-0275
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 8 Q-005-1426
M10 Collet - 15 mm 4 Q-006-0027
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 56 Q-006-1042
Washer M10 16 Q-006-1043
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 2 Q-006-1132
Hex Head - M10 x 40 4 Q-006-1208
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 12 Q-006-1502
Handlebar Attachment EUR 2 Q-015-0026
Tube for handlebar - 895 mm 1 Q-015-0098
