Pallet Cart 2450 x 840 mm
Pallet Cart 2450 x 840 mm
Pallet Cart 2450 x 840 mm
Q-007-1917

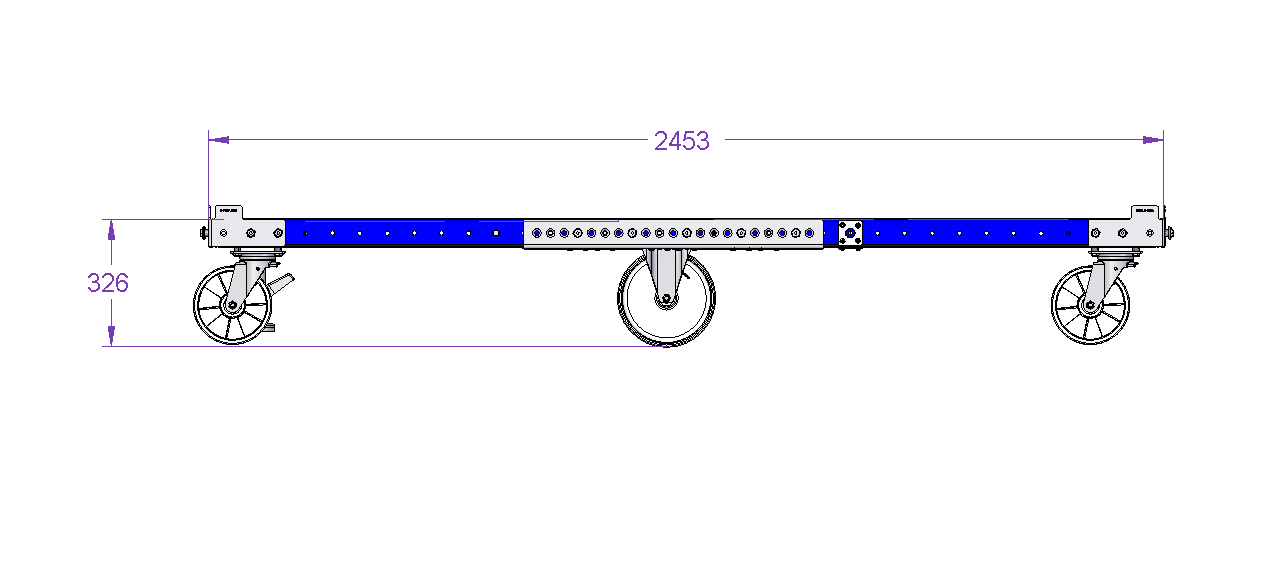

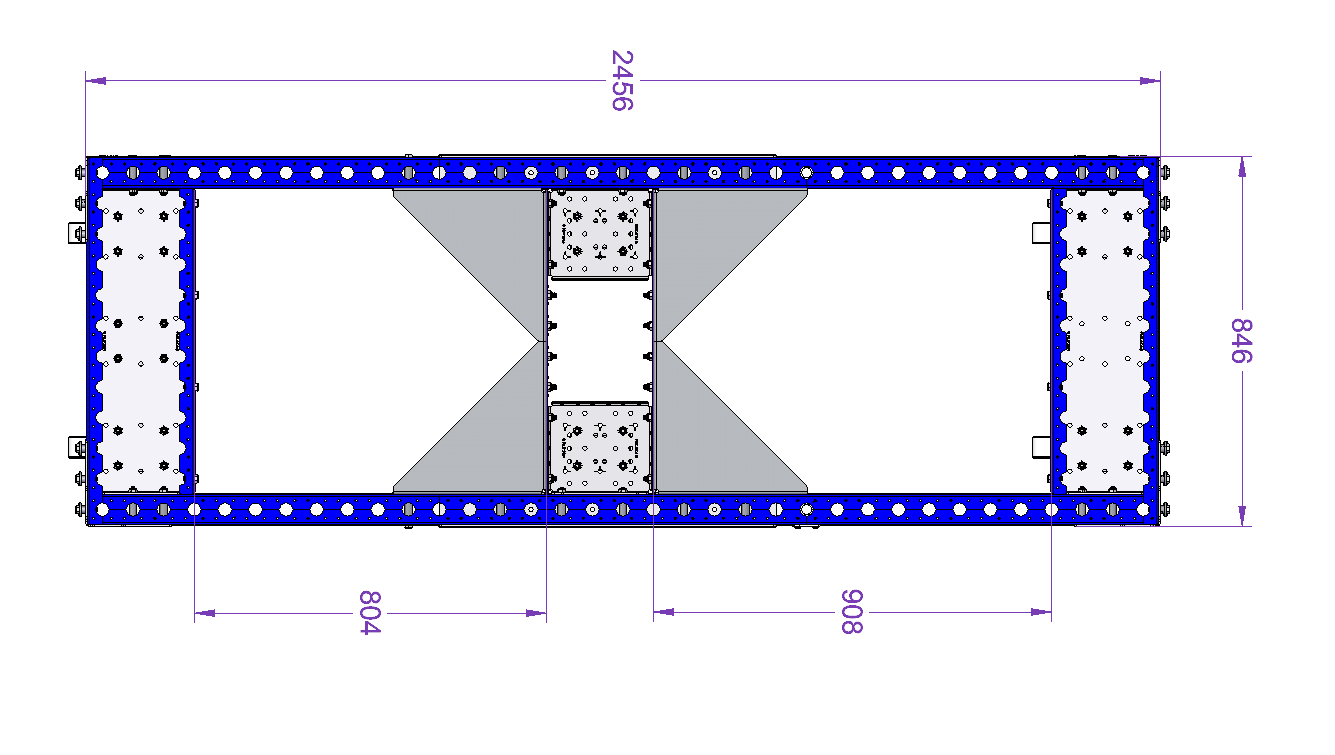

Pallet Cart 2450 x 840 mm

Long pallet cart designed for transporting pallets.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Length: 96 inch

Load capacity: 2205 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyamide

More info

This long pallet cart was designed to pallets but can also be used for transporting long/large parts. This cart comes equipped with a floor lock brake which keeps the cart secure not in use.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 3 Q-002-1001
Fixed Polyamide Caster - 250 mm 2 Q-004-1290
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Floor Brake LTL - 200 mm 1 Q-004-1359
Wheel Attachment Box - 700 mm 2 Q-005-1004
Wheel Attachment Box 2 Q-005-1079
Wheel Box Support 2 Q-005-1080
Pallet Guide Corner Plate 4 Q-005-1096
Reinforcement Plate - 770 mm 2 Q-005-1112
Triangle Corner Plate 4 Q-005-1145
Caster Distance Collet - 18 mm 20 Q-005-1396
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 84 Q-006-1042
Hex Head - M10 x 90 mm 2 Q-006-1132
Countersunk MF6S - M10 x 90 mm 18 Q-006-1135
Hex Head - M10 x 40 28 Q-006-1208
Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343
Self Tapping Screw M6 Torx H60 x 16 60 Q-006-1384
Washer - 30 x 5 mm 12 Q-015-1046
Collet - 10 mm 12 Q-015-1047
