Pallet Cart - 560 x 1050 mm
Pallet Cart - 560 x 1050 mm
Pallet Cart - 560 x 1050 mm
Pallet Cart - 560 x 1050 mm
Pallet Cart - 560 x 1050 mm
Q-100-1147

Pallet Cart - 560 x 1050 mm

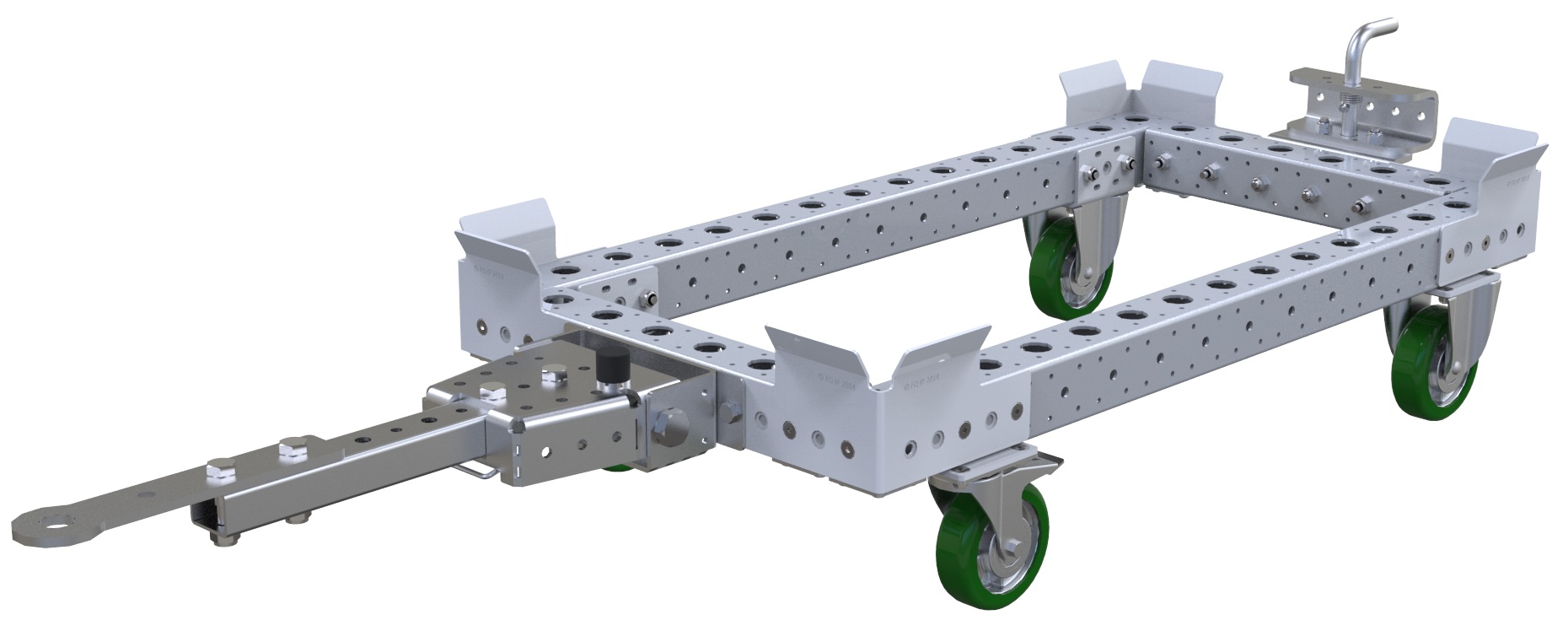

This tugger cart is designed to transport pallets and containers in a tugger train.

Technical specifications

Category: Standard

Type of tow bar: Tongue and Hitch

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 22 inch

Length: 41 inch

Load capacity: 1102 lbs

Transportation method: Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is designed to transport pallets and containers. It is equipped with a drop-pin and hitch towbar and four high-quality polyurethane casters which give the cart excellent tracking properties when connected in a train. Also, the cart uses corner pallet guides to help to place the containers or pallets in the frame.

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 16 Q-005-1426
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 26 Q-006-1042
Hex Head - M10 x 95 mm 6 Q-006-1088
Locking Nut M8 16 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 980 mm 4 Q-020-0980
FlexBeam™ FE - 420 mm 2 Q-021-0420
FlexBeam™ FE - 560 mm 2 Q-021-0560
