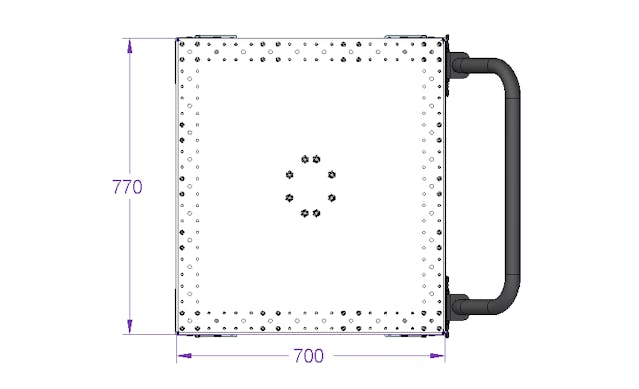

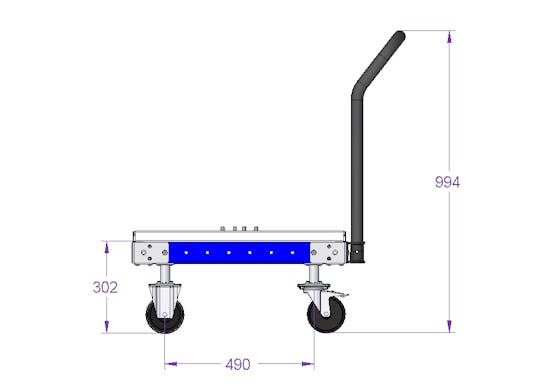

Pallet cart 770 x 700 mm
Pallet cart 770 x 700 mm
Pallet cart 770 x 700 mm
Pallet cart 770 x 700 mm
Q-100-0185

Pallet cart 770 x 700 mm

Custom push cart designed to hold bins and boxes.

Technical specifications

Category: Flat Deck

Industry: Appliances & Electronics, Distribution, Medical Equipment

Width: 28 inch

Length: 30 inch

Load capacity: 441 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

It’s equipped with dividers on the top plate for better storing. The dividers can be removed to store larger bins or pallets instead.

It’s equipped with two swivel casters with brakes and two fixed casters for easier manual handling.

The handlebar is placed in ergonomic height and is removable, so it can be removed and reattached with ease.

Parts included
FlexTube™ 70 mm - Locking Nut 4 Q-000-1101
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 770 mm FE 2 Q-001-1406
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
64 mm FlexBeam™ Collet 4 Q-005-1426
Wheel Attachment - 80 x 60 mm 4 Q-005-1722
Locking Nut M10 20 Q-006-1042
Locking Nut M6 16 Q-006-1050
Locking Nut M8 16 Q-006-1181
Countersunk Allen Head - M6 x 16 mm 16 Q-006-1197
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 8 Q-006-1343
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 84 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 770 x 700 mm 1 Q-016-0068
