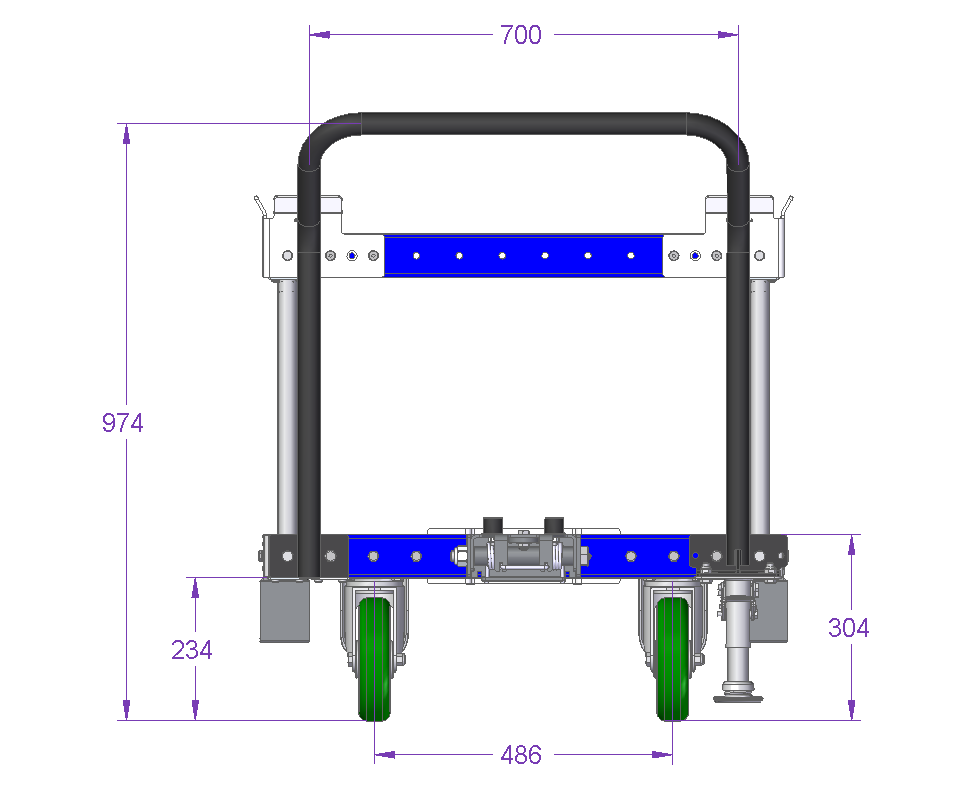

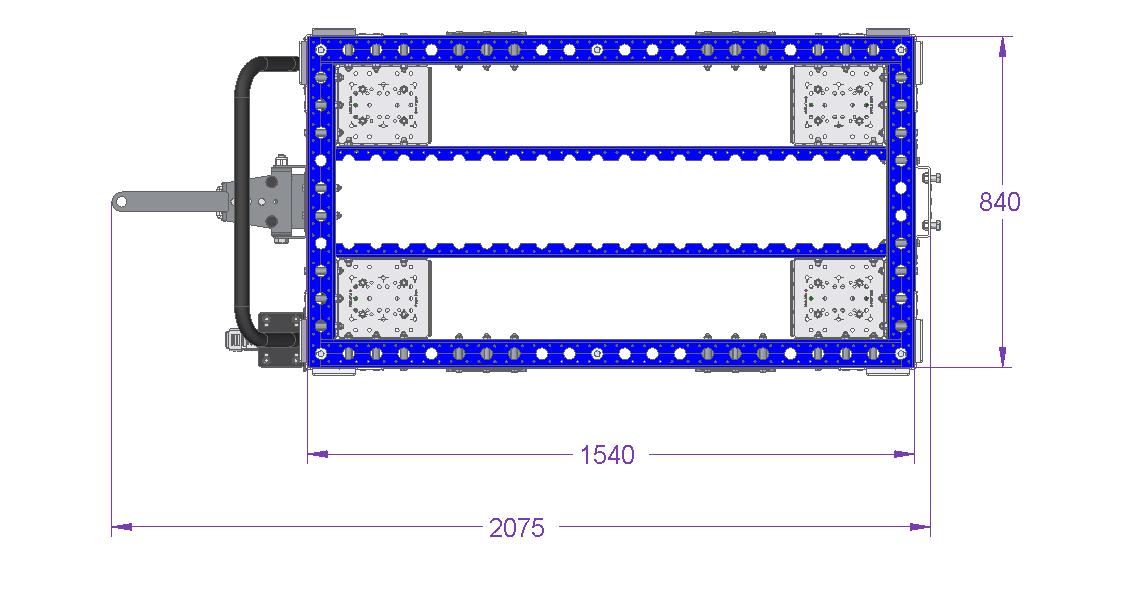

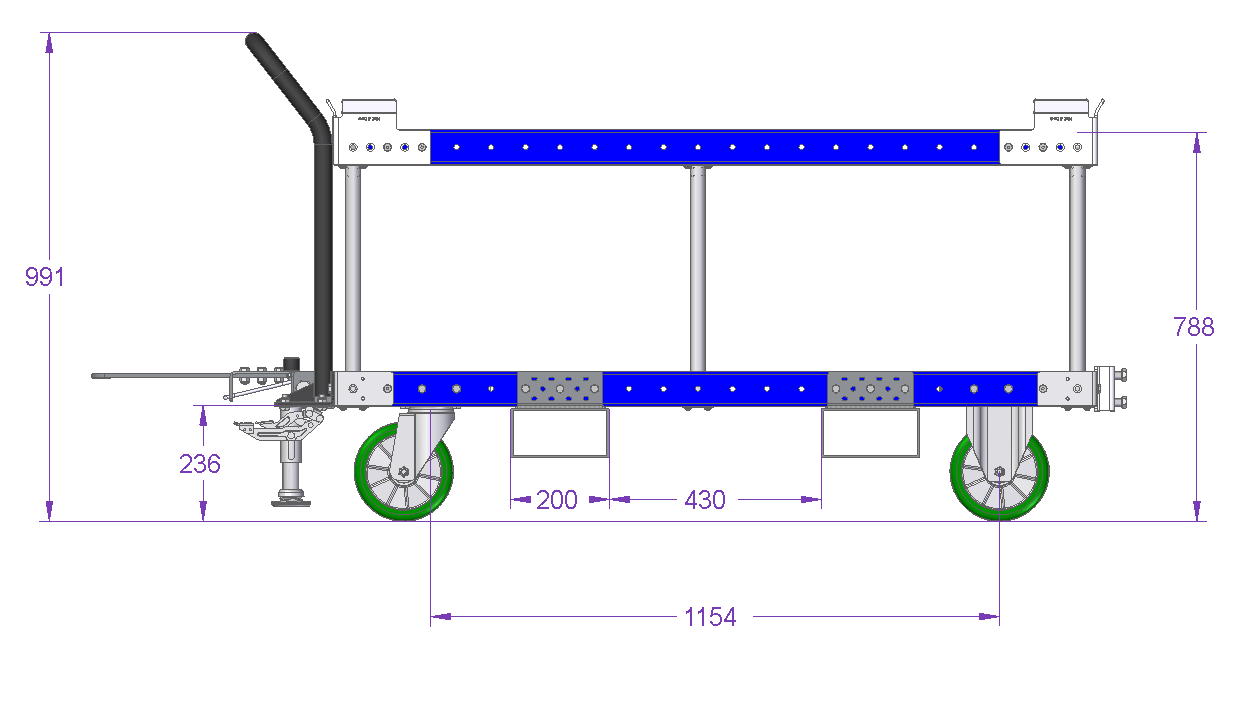

Pallet cart with sub-frame - 1540 x 840 mm
Pallet cart with sub-frame - 1540 x 840 mm
Pallet cart with sub-frame - 1540 x 840 mm
Pallet cart with sub-frame - 1540 x 840 mm
Q-100-0933

Pallet cart with sub-frame - 1540 x 840 mm

Standard pallet cart with attached top structure.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 33 inch

Length: 61 inch

Transportation method: Manual, Tugger

Caster size: 8 inch

More info

This pallet cart comes equipped with a sub frame. The sub frame improves ergonomics for the operator because there is less reaching and beding when accessing the materials. This cart is also equipped with an ergonomic handlebar and tow forklift pockets. This cart is equipped with a tow bar so it can be transported in a tugger train system.

Parts included
FlexBeam™ - 1470 mm 8 Q-001-1296
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexBeam™ 700 mm FE 4 Q-001-1407
FlexBeam™ - 1400 mm FE 2 Q-001-1502
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 24 Q-002-1162
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Angle corner plate - 5 mm 4 Q-005-0227
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Fork Tunnel EU - 80 mm 4 Q-005-0396
Spring tow bar 1 Q-005-0450
Spring Threaded Tube Connectors 12 Q-005-0469
M8 Damper - GN352-30-25-M8-S-55 2 Q-005-0648
Hitch attachment plate 1 Q-005-0655
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 44 Q-005-1426
Washer 10,5 x 30 x 2,5 2 Q-006-1030
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 33 Q-006-1041
Locking Nut M10 95 Q-006-1042
Hex Head - M14 x 35 mm 4 Q-006-1045
Hex Head - M10 x 90 mm 32 Q-006-1132
Locking Nut M8 2 Q-006-1181
Hex Head - M10 x 100 mm 2 Q-006-1302
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Tow bar lip - 400 mm 1 Q-017-0049
Outer Tube (No Plate) - 484 mm 6 Q-025-0484
