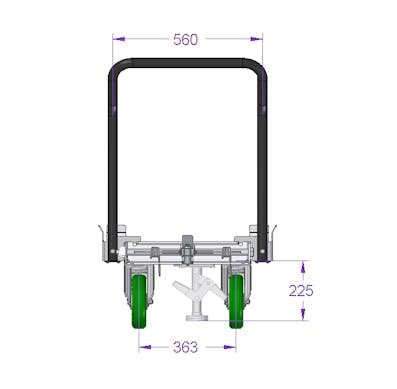

Pallet Tugger cart 630 x 910 mm

Tuggable pallet/container cart equipped with a handlebar, floor brake and six polyurethane casters

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Type of tow bar: Wire release

Width: 25 inch

Length: 36 inch

Load capacity: 661 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable pallet cart designed for one pallet/container size. The cart comes equipped with a handlebar, floor brake, and four polyurethane casters, two fixed and two swivels giving the cart excellent tracking properties and silent movement in a train.

Parts included
FlexBeam™ 840 mm 6 Q-001-1305
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexPlate™ 6 Q-002-1001
Flexplate™ M10 4 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 16 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Floor brake plate 1 Q-005-0275
Collet - 31 mm 2 Q-005-1008
Old part: Spring for Tow Bar 2 Q-005-1012
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 4 Q-005-1079
Left Angle Corner Plate 1 Q-005-1097
Angled Corner Plate 2 Q-005-1098
Right Angle Corner Plate 1 Q-005-1099
64 mm FlexBeam™ Collet 8 Q-005-1426
Hex Head - M20 x 500 mm 1 Q-006-1016
Locking Nut M10 48 Q-006-1042
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M10 x 90 mm 4 Q-006-1132
Hex Head - M10 x 30 mm 8 Q-006-1161
Hex Head - M10 x 40 16 Q-006-1208
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 30 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Tube handlebar - 560 x 730 mm 1 Q-015-0060
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Towing Equipment - Locking Lip 1 Q-017-1015
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
