Push Cart - 40 x 48 inch
Push Cart - 40 x 48 inch
Push Cart - 40 x 48 inch
Push Cart - 40 x 48 inch
Q-100-0789

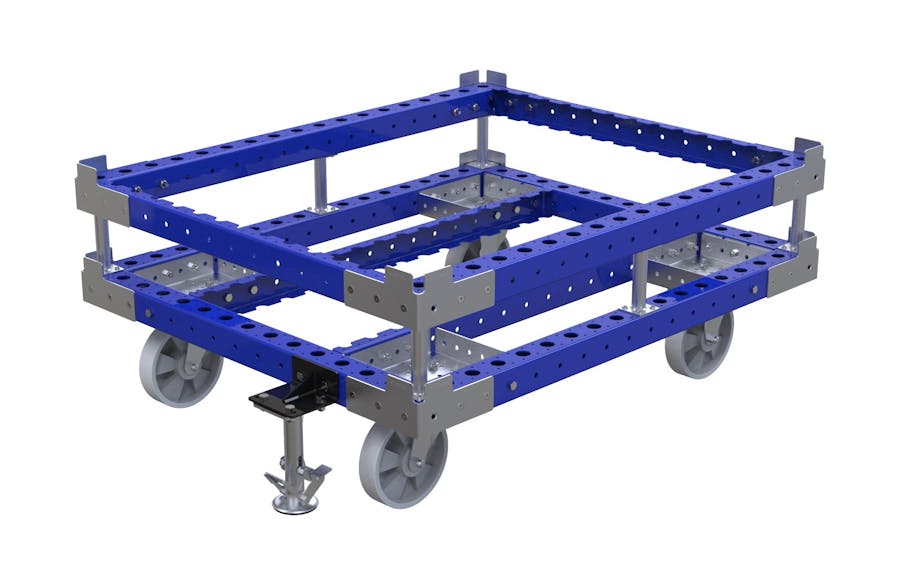

Push Cart - 40 x 48 inch

Standard designed push cart with added top structure.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

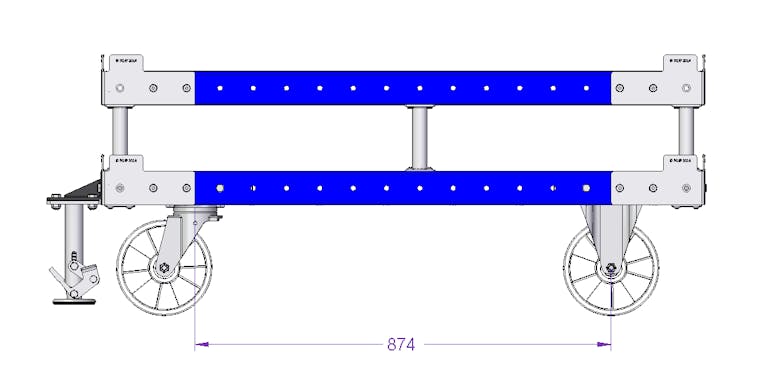

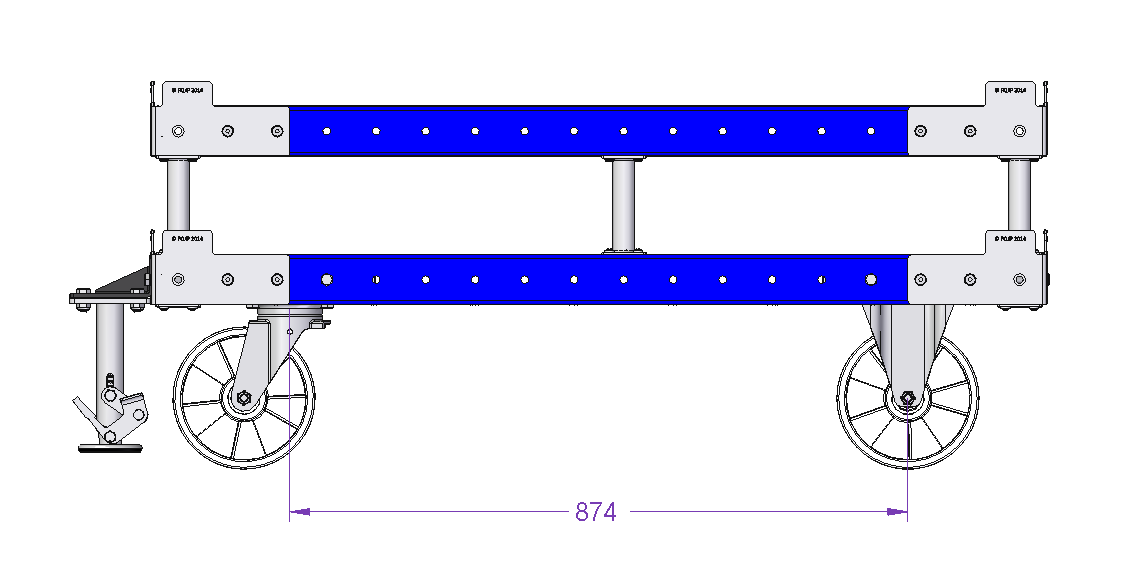

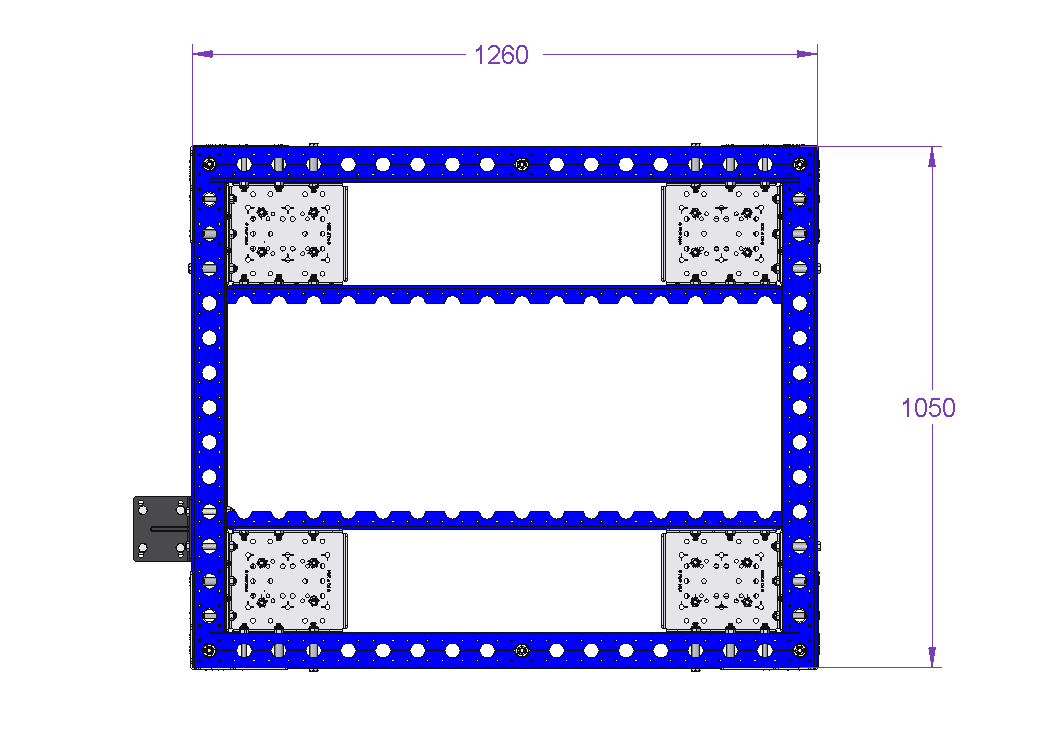

Length: 48 inch

Load capacity: 1499 lbs

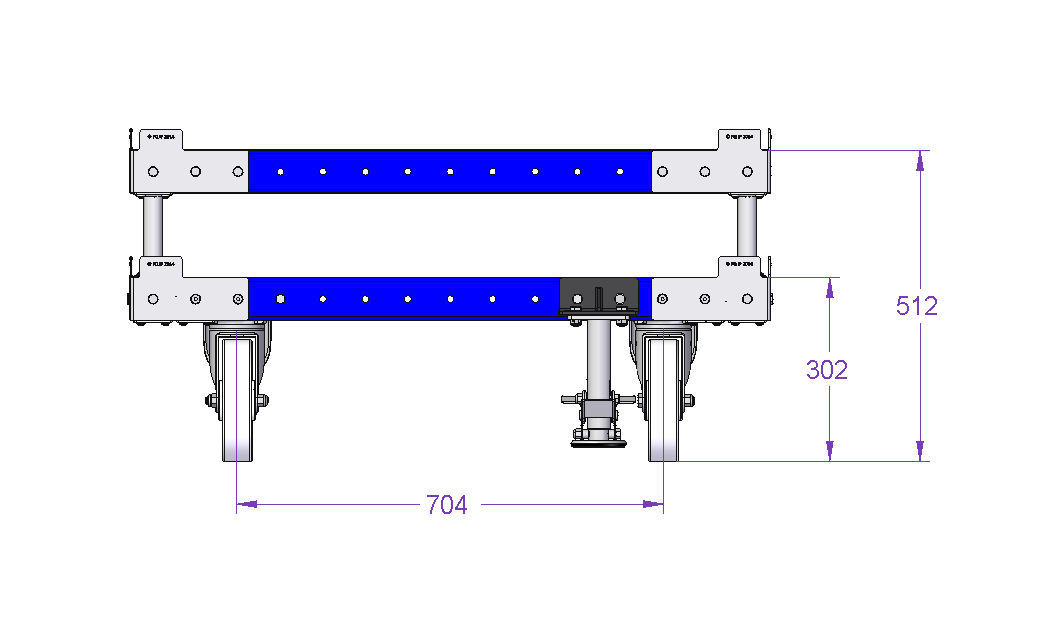

Width: 41 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This push cart was designed to transport pallets and containers. It is equipped with a floor lock brake to keep it secure when not in use. The added top structure makes it easier for the operators to access the materials and greatly improves ergonomics.

Parts included
FlexTube™ 140 mm - Locking Nut 6 Q-000-1102
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 8 Q-005-1096
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 19 Q-005-1426
Hex Head - M10 x 25 mm 32 Q-006-1041
Locking Nut M10 81 Q-006-1042
Washer M10 4 Q-006-1043
Hex Head - M10 x 95 mm 1 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
