Push Cart With Top Plate - 40 x 48 inch
Push Cart With Top Plate - 40 x 48 inch
Push Cart With Top Plate - 40 x 48 inch
Push Cart With Top Plate - 40 x 48 inch
Q-100-0790

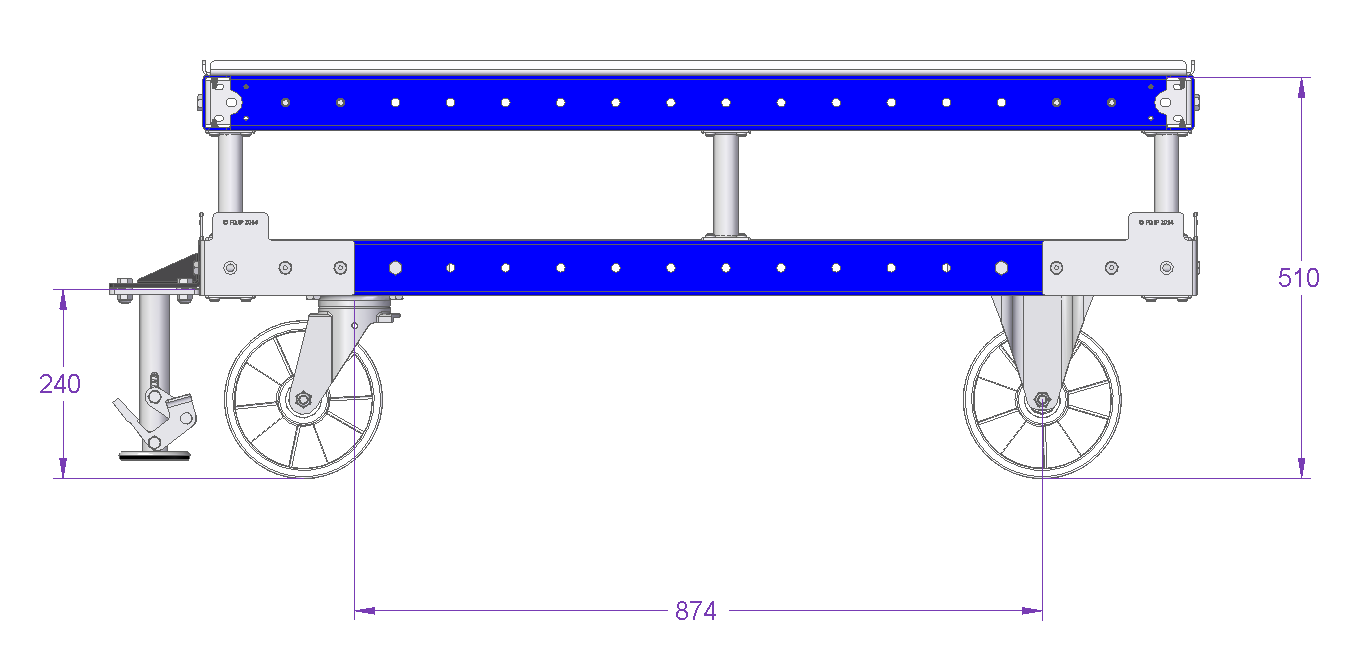

Push Cart With Top Plate - 40 x 48 inch

Custom designed push cart with added top structure.

Technical specifications

Category: Flat Deck, Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 48 inch

Load capacity: 1499 lbs

Width: 41 inch

Transportation method: LiftRunner Frames, Manual

Caster size: 8 inch

Caster Type: Nylon

More info

This push cart was designed for transporting pallets and containers. It was designed with an added top structure which makes it easier to access the materials. It comes equipped with a floor lock brake to keep the cart secure when not in use.

Parts included
FlexTube™ 140 mm - Locking Nut 6 Q-000-1102
FlexBeam™ 1190 mm 9 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Polyamide Caster 200 mm without Brake 2 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 2 Q-005-0031
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 15 Q-005-1426
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 69 Q-006-1042
Washer M10 4 Q-006-1043
Hex Head - M10 x 95 mm 1 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 80 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 50 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410

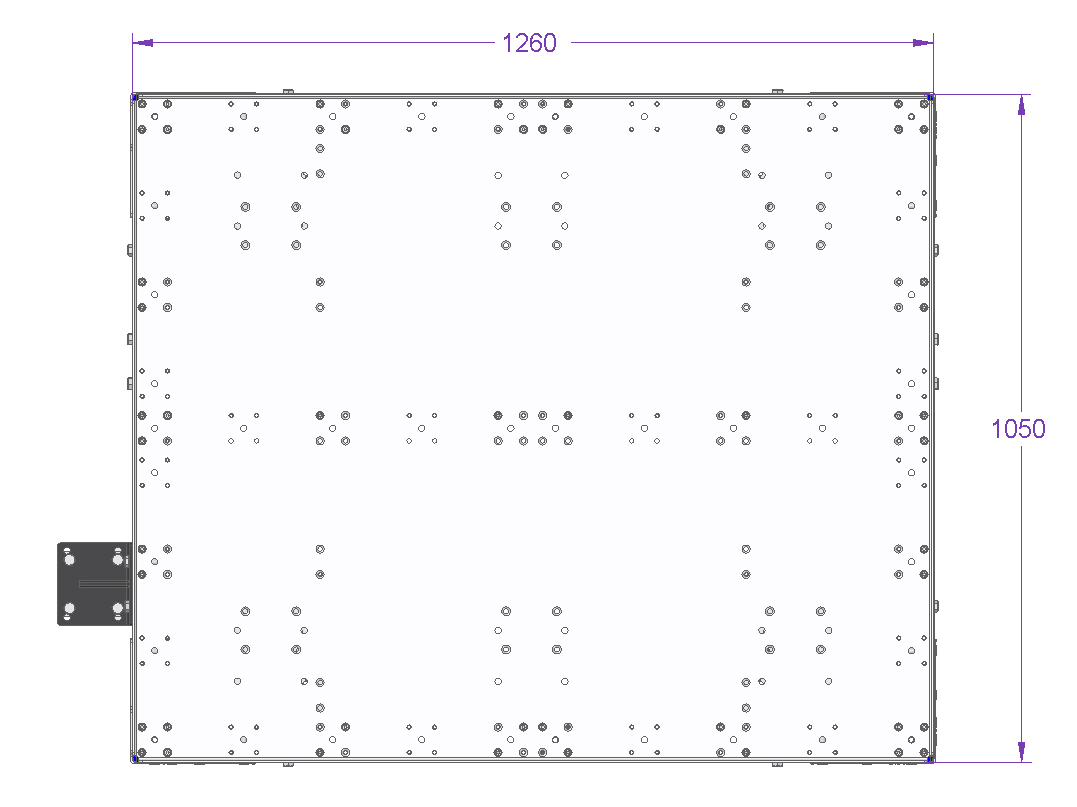

Top plate - 1050 x 1260 mm 1 Q-016-0331
