Q-100-1019

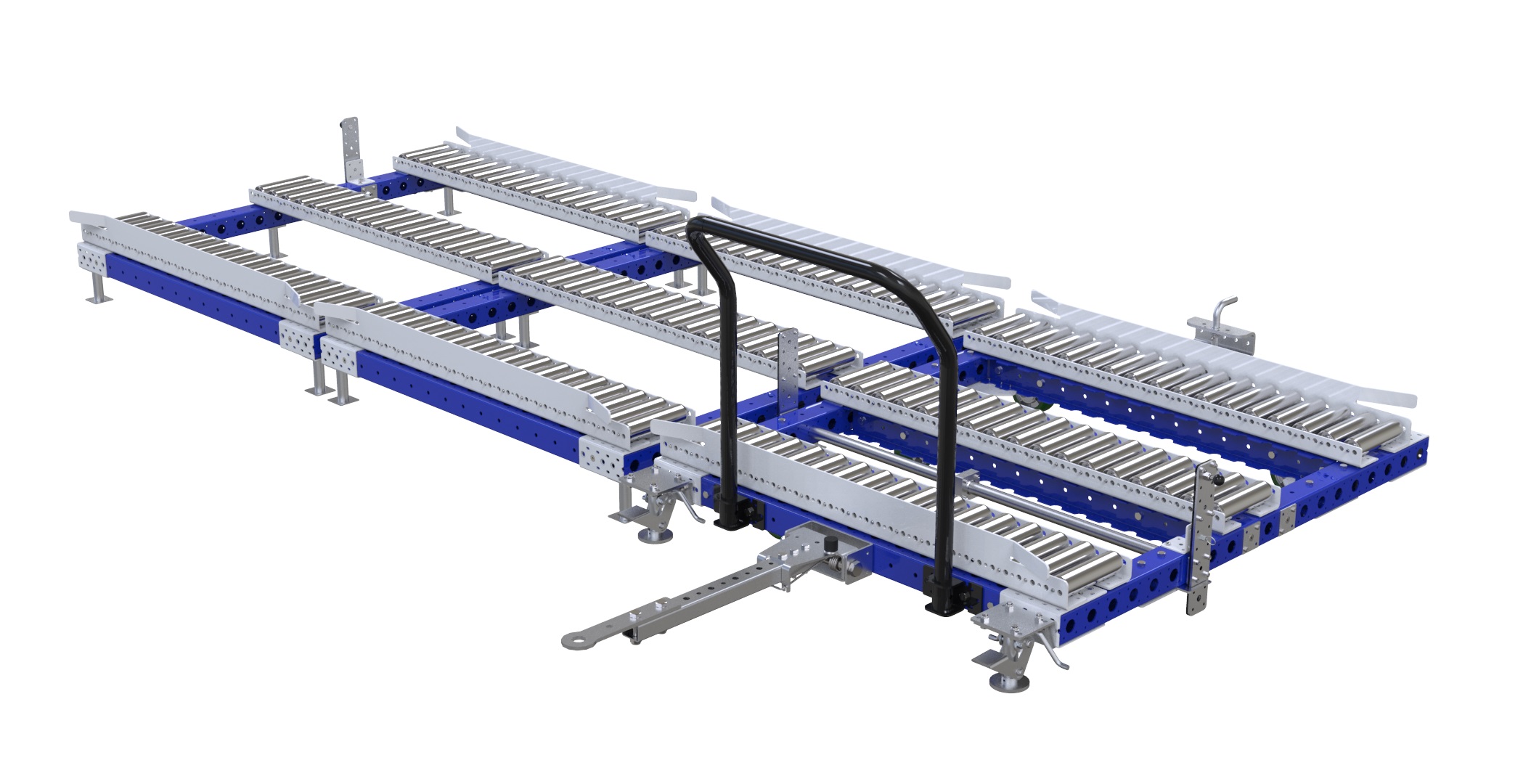

Roller Cart - 1400 x 1190 mm

Roller transfer cart designed to improve the transition of pallets and containers.

Technical specifications

Category: Conveyor

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 55 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This roller cart is specifically designed to easily load on and off fully loaded pallets and containers. This cart is very robust and can be fitted up against a loading rack or station. It is equipped with a handle bar for manual transportation and a drop pin and hitch tow bar so it can be transported in a tugger train system (learn more about transitioning from forklifts to tugger trains here). It is also equipped with 2 floor lock brakes and a locking system to lock the pallets and containers in place.

Parts included
FlexTube™ 560 mm 1 Q-000-1182
FlexTube™ 630 mm 1 Q-000-1312
FlexBeam™ 1050 mm 2 Q-001-1302
FlexBeam™ 1050 mm FE 6 Q-001-1402
FlexBeam™ - 1400 mm FE 4 Q-001-1502
FlexPlate™ 6 Q-002-1001
Flexplate™ M10 12 Q-002-1162
FlexPlate™ half 10 Q-002-1369
End Roller Guide - 1190 mm 2 Q-003-0106
Roller Guide - 1190 mm 4 Q-003-0107
Steel Roller - 200 mm (8 mm Axle) 51 Q-004-0058
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 2 Q-004-1369
M10 Collet - 70 mm 6 Q-005-0043
Floor brake plate 2 Q-005-0275
Rotation handle and lock - 345 mm 4 Q-005-0289
Locking Guide Plate 2 Q-005-0290
L-Bracket Joint - 70 x 70 mm 1 Q-005-0429
Triangle Joint 4 Q-005-0483
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Spherical Knob 1 Q-005-1146
64 mm FlexBeam™ Collet 18 Q-005-1426
Indexing Plunger GN.37313 1 Q-005-1544
Heavy Duty Joint M10 4 Q-005-1580
Allen Head - M6 x 30 mm 1 Q-006-1012
M6 x 20 K6S 10.9 Round Head (black) 16 Q-006-1018
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 36 Q-006-1041
Locking Nut M10 101 Q-006-1042
Washer M10 14 Q-006-1043
Locking Nut M6 21 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 15 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head - M10 x 20 mm 16 Q-006-1232
Extra low head [1,5 mm] M10x40 mm 1 Q-006-1361
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment US 2 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
