Roller Cart - 1610 x 1050 mm

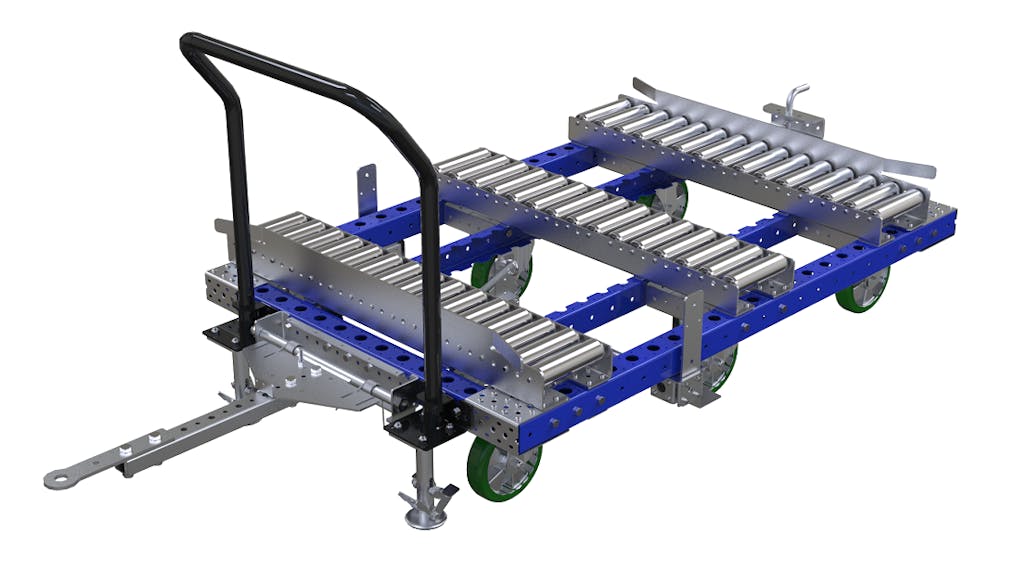

Roller cart designed to help the transfer of pallets and containers.

Technical specifications

Category: Conveyor

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Length: 63 inch

Width: 41 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Totes

More info

This cart is designed to transport and transfer fully loaded pallets and containers. It is equipped with an ergonomic handle bar and a tongue and hitch tow bar for transportation via a tugger train system. It is also equipped with a floor lock brake to keep the cart secured in placed when loaded with materials.

Parts included
FlexTube™ 560 mm 1 Q-000-1182
FlexTube™ 490 mm 1 Q-000-1247
FlexQube 4 Q-001-1078
FlexBeam™ 910 mm 2 Q-001-1304
FlexBeam™ 420 mm 1 Q-001-1311
FlexBeam™ 910 mm FE 2 Q-001-1404
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ - 1610 mm FE 4 Q-001-1505
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 27 Q-002-1162
Flexplate™ 30,5 mm hole 2 Q-002-1320
FlexPlate™ half 14 Q-002-1369
End Roller Guide - 1050 mm 2 Q-003-0092
Roller Guide - 1050 mm 4 Q-003-0093
Roller 200 mm 734105 45 Q-004-1060
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 2 Q-004-1613
Foot pedal 1 Q-005-0236
Rotation Handle and Lock - 228 mm 1 Q-005-0256
Locking Guide Plate 2 Q-005-0290
Rotation Handle And Lock - 270 mm 2 Q-005-0590
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 13 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
M10 Lifting Eye Bolt - 17 mm 2 Q-006-0020
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 44 Q-006-1041
Locking Nut M10 82 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 13 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 23 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 6 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 198 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Compression Spring for US Tow Hitch 1 Q-012-0007
Tow Bar Pull Spring - 245 mm 1 Q-012-0008
Handlebar / Floor Brake Attachment US 2 Q-015-0029
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
