Q-100-0423

Roller Deck Cart 44 x 21.8 inch

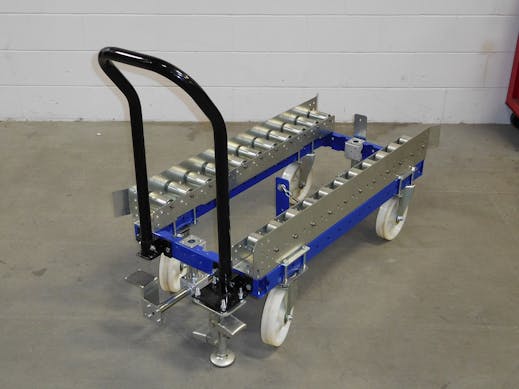

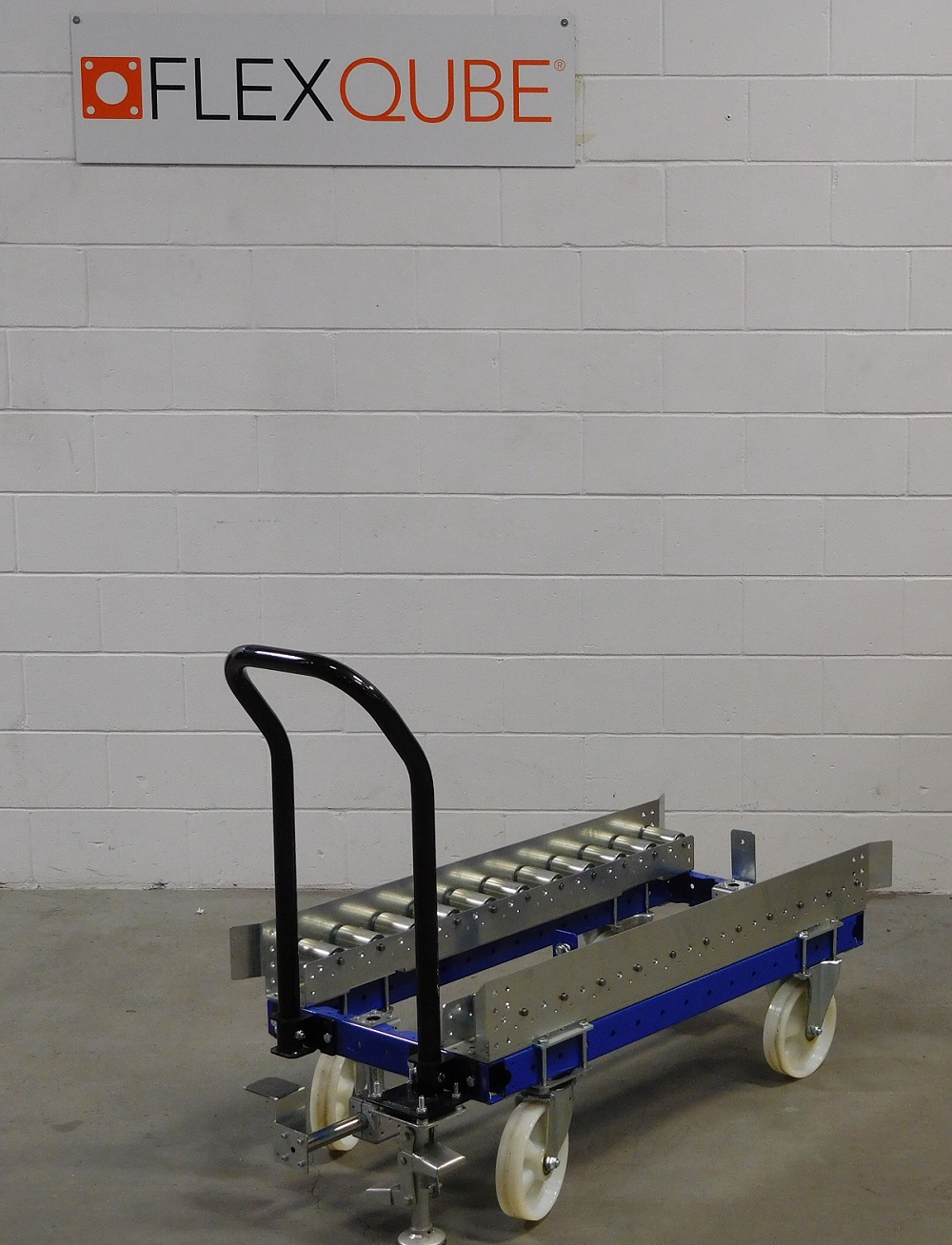

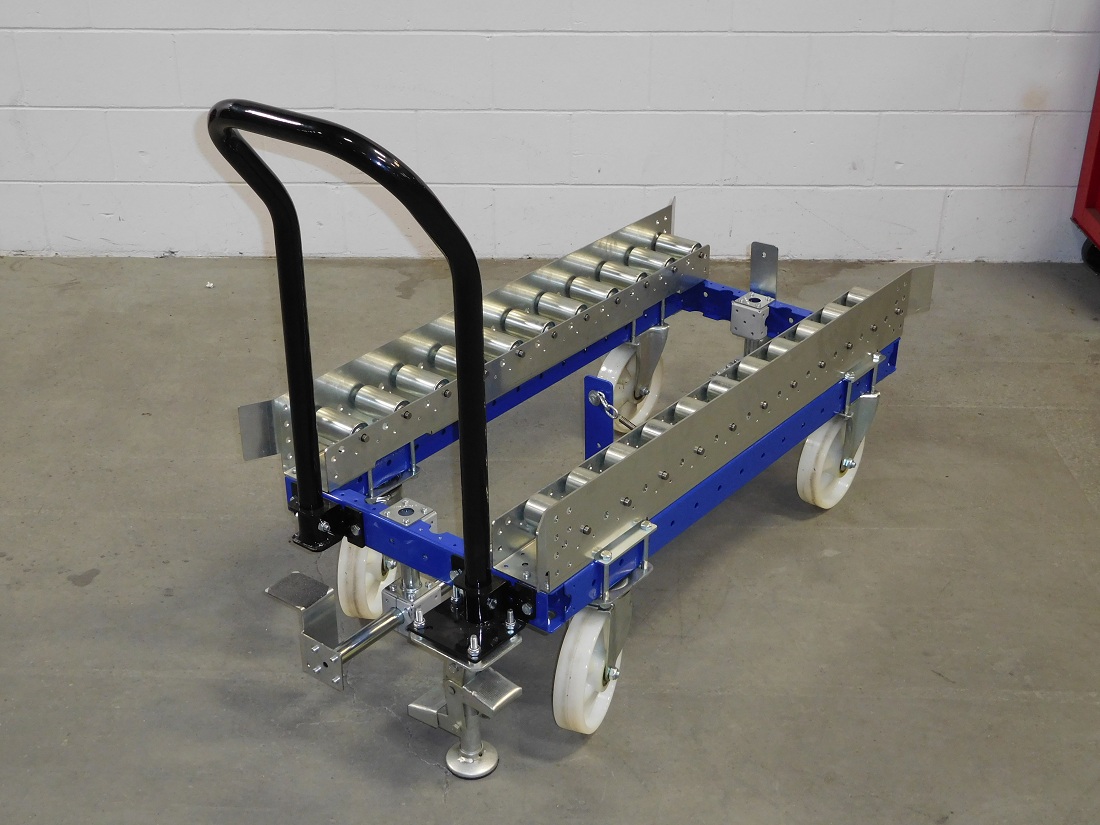

Conveyor push cart equipped with a foot activated locking, floor brake, handlebar and four nylon casters, two fixed and two swivel.

Technical specifications

Transportation method: Manual

Category: Conveyor

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

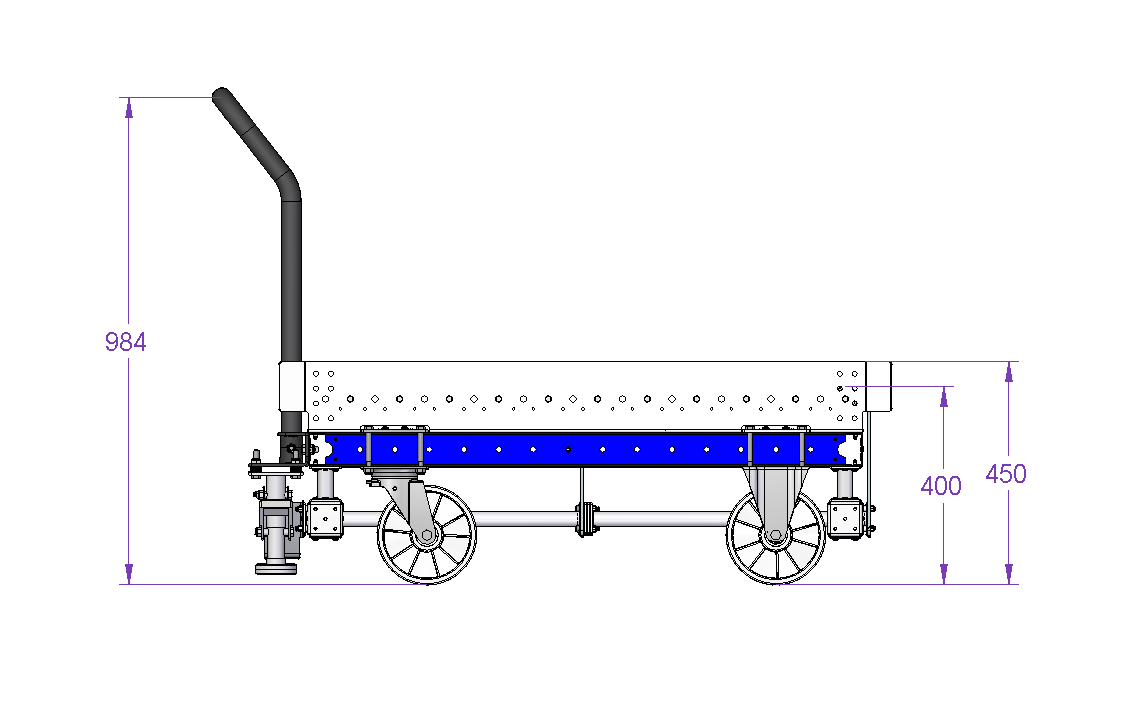

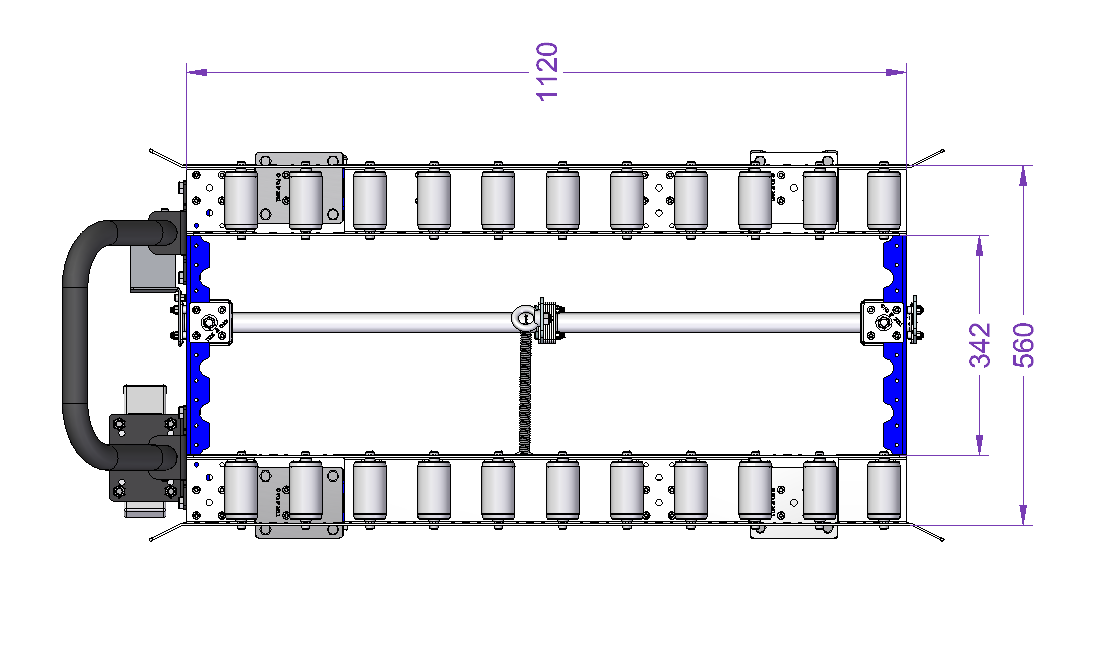

Width: 14 inch

Length: 44 inch

Load capacity: 882 lbs

Caster size: 8 inch

Caster Type: Nylon

More info

Conveyor cart most commonly used for the transportation of totes and boxes. The cart is equipped with a foot activated lock on the handlebar side as well as a floor brake, handlebar and four nylon casters, two fixed and two swivel making it easy to maneuver manually.

Parts included

FlexTube™ 70 mm - Locking Nut 2 Q-000-1101

FlexTube™ 560 mm 2 Q-000-1182

FlexQube 6 Q-001-1078

FlexBeam™ 1050 mm 4 Q-001-1302

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 13 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Polyamide Caster 200 mm Fixed 2 Q-004-1354

Floor Brake LTL - 200 mm 1 Q-004-1359

Foot pedal 1 Q-005-0236

Rotation handle and lock - 350 mm 1 Q-005-0239

Roller Guide w Steering - 1120 mm for 100 mm Rollers 2 Q-005-0277

Rotation Handle and Lock - 242,5 mm 1 Q-005-1354

Roller Deck Cart 44 x 21.8 inch 22 Q-100-0423

M10 Lifting Eye Bolt - 17 mm 2 Q-006-0020

Allen Head - M6 x 16 mm 8 Q-006-1011

Allen Head - M6 x 30 mm 1 Q-006-1012

Hex Head - M10 x 25 mm 4 Q-006-1041

Locking Nut M10 28 Q-006-1042

Washer M10 24 Q-006-1043

Locking Nut M6 13 Q-006-1050

Hex Head - M10 x 90 mm 16 Q-006-1132

Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343

Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384

Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502

Tow Bar Pull Spring - 245 mm 1 Q-012-0008

Handlebar / Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for handlebar US - 350 mm 1 Q-015-0045
