Roller Pallet Cart - 2380 x 2030 mm
Roller Pallet Cart - 2380 x 2030 mm
Roller Pallet Cart - 2380 x 2030 mm
Roller Pallet Cart - 2380 x 2030 mm
Q-100-1125

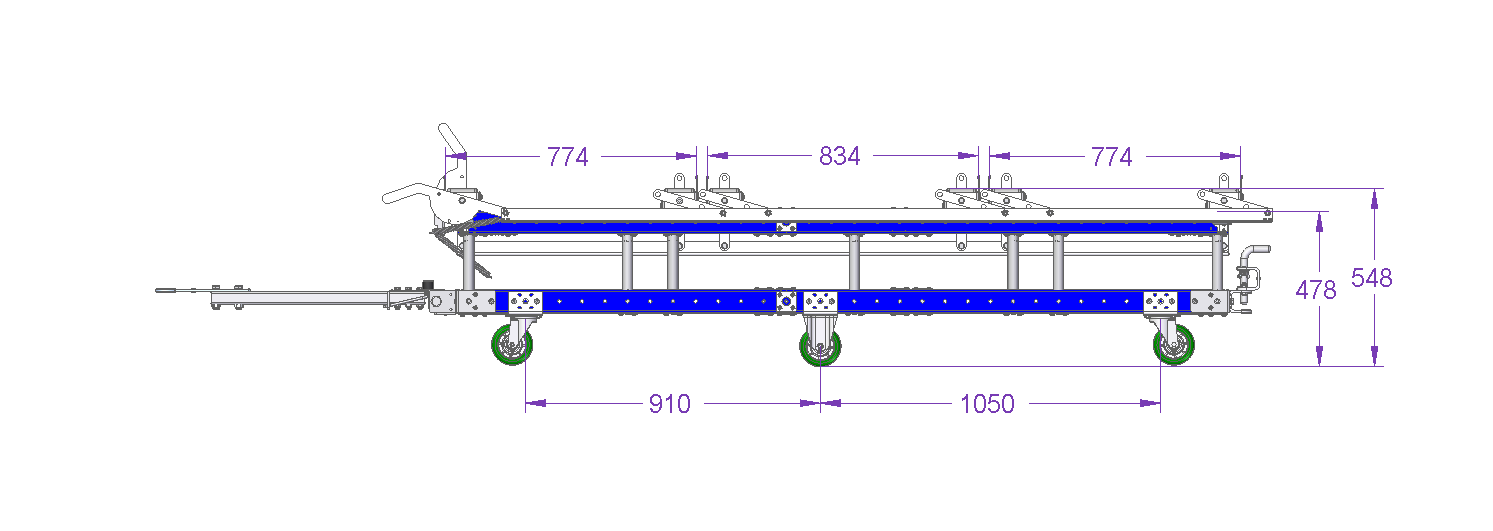

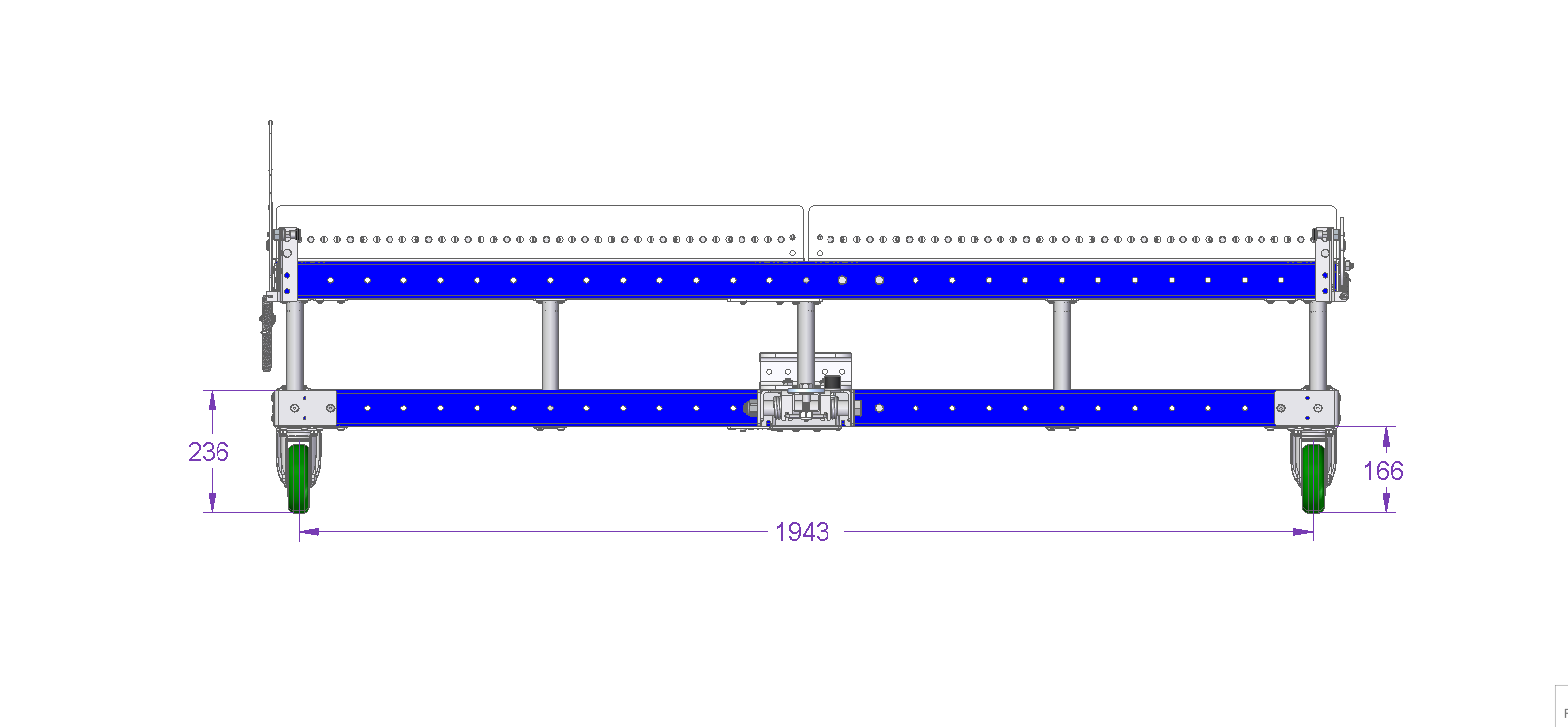

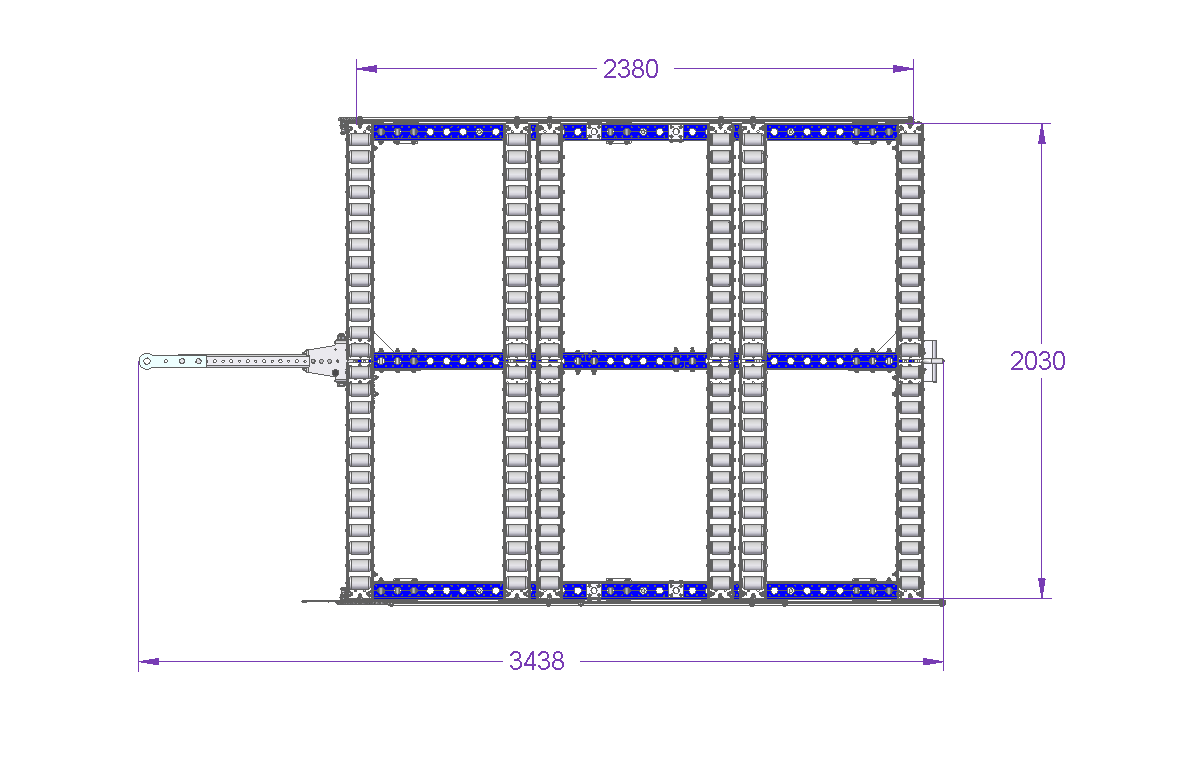

Roller Pallet Cart - 2380 x 2030 mm

Pallet conveyor cart with three slots. Equipped with a towbar and six polyurethane casters.

Technical specifications

Category: Conveyor

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 80 inch

Length: 110 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart was design to transport pallets and containers in an ergonomic fashion. The cart is split into three different sections and have locking mechanisms on both sides allowing you to load/unload material in either direction. The cart is eqiupped with a tow bar and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 980 mm 8 Q-001-1303
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexBeam™ - 1330 mm FE 4 Q-001-1501
FlexBeam STS FE - 1890 mm 4 Q-001-1509
FlexBeam STS FE - 2030 mm 4 Q-001-1511
FlexPlate™ 44 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 32 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
L Bracket Joint 4 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Spring Threaded Tube Connectors 32 Q-005-0469
Triangle Joint 4 Q-005-0483
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Indexing plunger GN 717-8-M12x1,5-B-ST 2 Q-005-0713
Plunger Lock Plate - Right 1 Q-005-0804
Plunger Lock Plate - Left 1 Q-005-0805
Plunger Locking Handle 2 Q-005-0806
Locking Plate Link - 2380 mm 2 Q-005-0807
Roller Stop - 239 mm 10 Q-005-0808
Roller Guide Lock Attachment Plate 12 Q-005-0812
64 mm FlexBeam™ Collet 30 Q-005-1426
Roller Pallet Cart - 2380 x 2030 mm 156 Q-100-1125
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
M12 Nut 2 Q-006-0022
M10 Collet - 7 mm 12 Q-006-0043
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 121 Q-006-1042
Washer M10 34 Q-006-1043
Hex Head - M10 x 90 mm 30 Q-006-1132
Locking Nut M8 25 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 392 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 92 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Tow Bar Pull Spring - 245 mm 2 Q-012-0008
Collet - 10 mm 12 Q-015-1047
US Modular Tow Bar VKR - Lip - 660 mm 1 Q-017-0009
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 28 mm 1 Q-017-1010
Outer Tube (No Plate) - 242 mm 16 Q-025-0242
