Q-100-0298

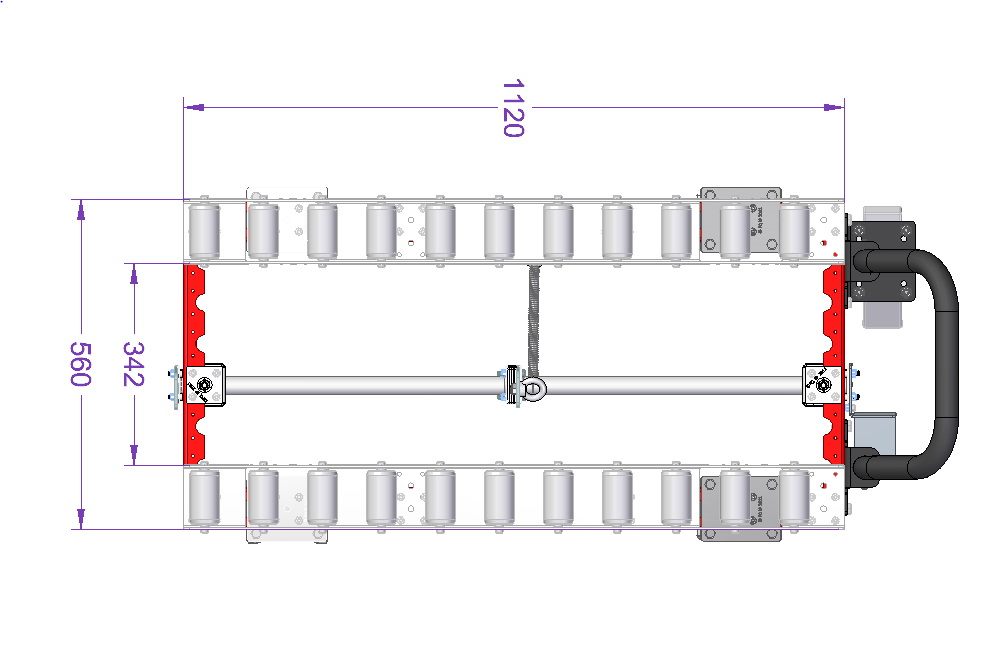

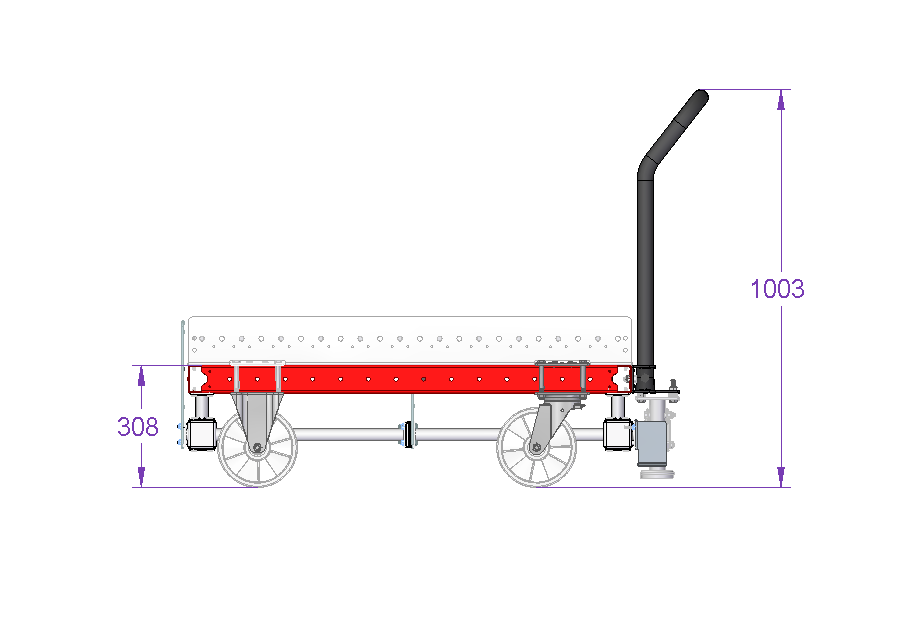

Roller top cart 1120 x 560 mm

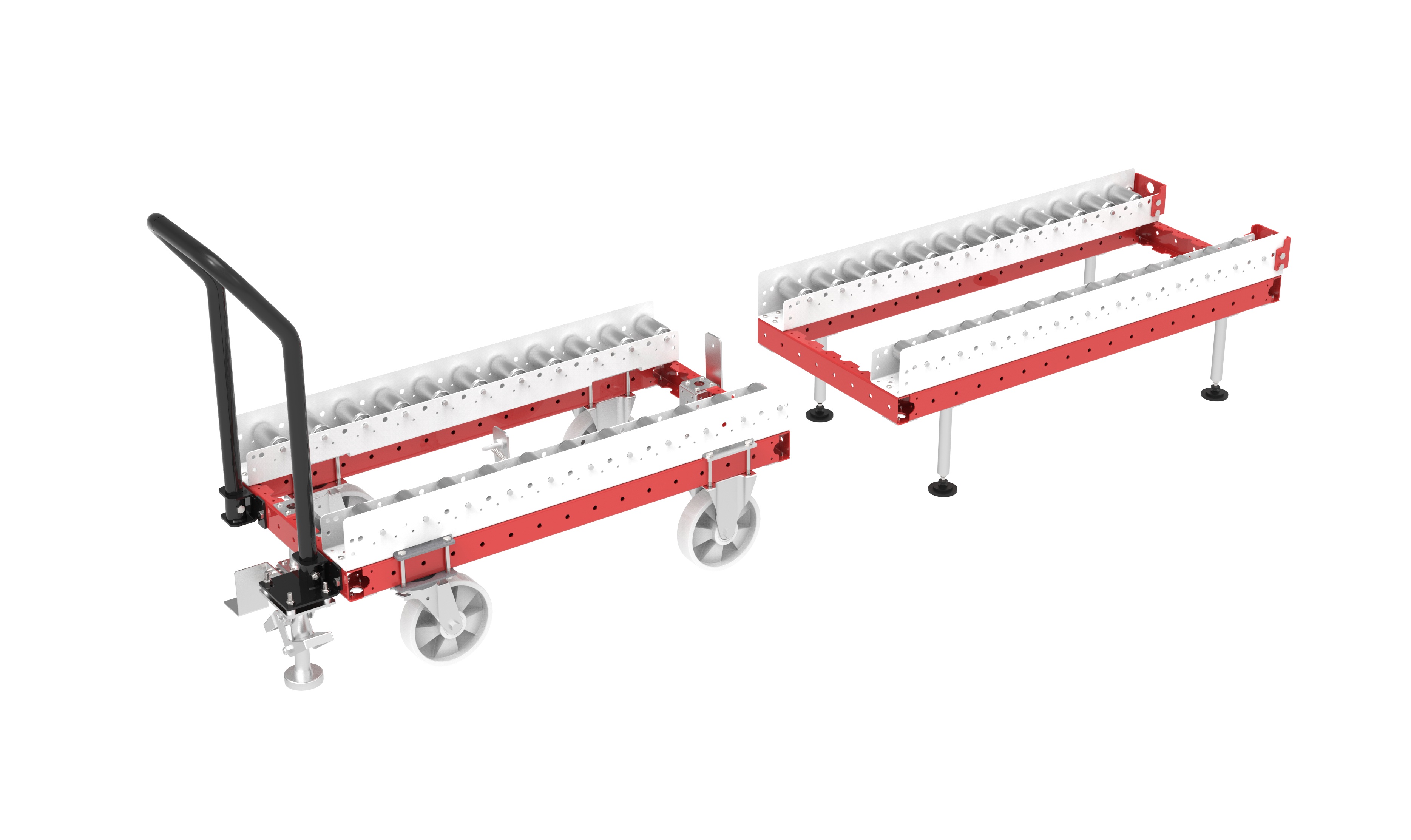

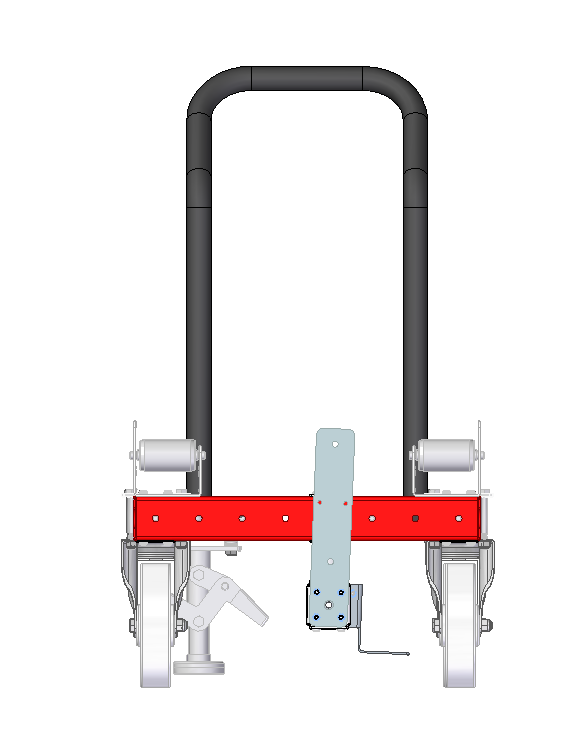

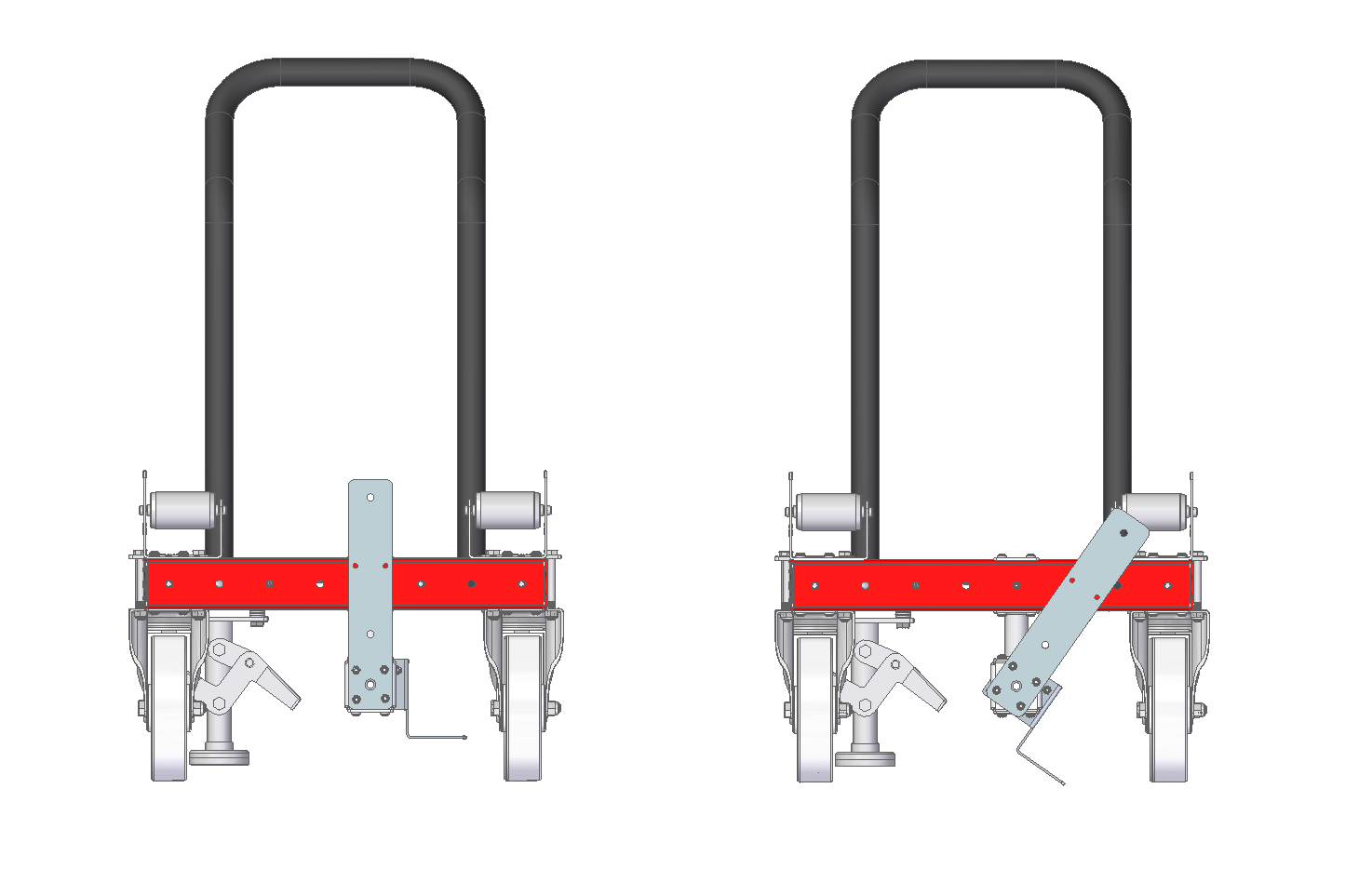

Conveyor cart designed to be used in combination with Q-100-0336. Equipped with a handlebar, floor brake, four nylon swivel casters and a foot activated locking.

Technical specifications

Category: Conveyor

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

Width: 22 inch

Load capacity: 551 lbs

Length: 44 inch

Caster size: 8 inch

Caster Type: Nylon

More info

This conveyor cart was designed to be used in combination with Q-100-0336 and is most commonly used for transporting pallets, containers and boxes. The cart transports the material between warehouse and assembly line were the station is placed. The is equipped with a handlebar, floor brake, four nylon swivel casters, and a foot-activated locking.

Parts included

FlexTube™ 70 mm - Locking Nut 2 Q-000-1101

FlexTube™ 560 mm 2 Q-000-1182

FlexQube 6 Q-001-1078

FlexBeam™ 1050 mm 4 Q-001-1302

FlexBeam™ 560 mm FE 2 Q-001-1409

FlexPlate™ 13 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Polyamide Caster 200 mm Fixed 2 Q-004-1354

Floor Brake LTL - 200 mm 1 Q-004-1359

Roller guide for 100 mm rollers - 1120 mm 2 Q-005-0218

Foot pedal 1 Q-005-0236

Rotation handle and lock - 350 mm 1 Q-005-0239

Rotation Handle and Lock - 242,5 mm 1 Q-005-1354

Roller top cart 1120 x 560 mm 22 Q-100-0298

M10 Lifting Eye Bolt - 17 mm 2 Q-006-0020

Allen Head - M6 x 16 mm 8 Q-006-1011

Allen Head - M6 x 30 mm 1 Q-006-1012

Hex Head - M10 x 25 mm 4 Q-006-1041

Locking Nut M10 28 Q-006-1042

Washer M10 24 Q-006-1043

Locking Nut M6 13 Q-006-1050

Hex Head - M10 x 90 mm 16 Q-006-1132

Hex Head Fully Threaded - M10 x 50 mm 4 Q-006-1343

Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384

Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502

Tow Bar Pull Spring - 245 mm 1 Q-012-0008

Handlebar / Floor Brake Attachment US 1 Q-015-0029

Handlebar Attachment US 1 Q-015-0031

Tube for handlebar US - 350 mm 1 Q-015-0045
