Q-100-0217

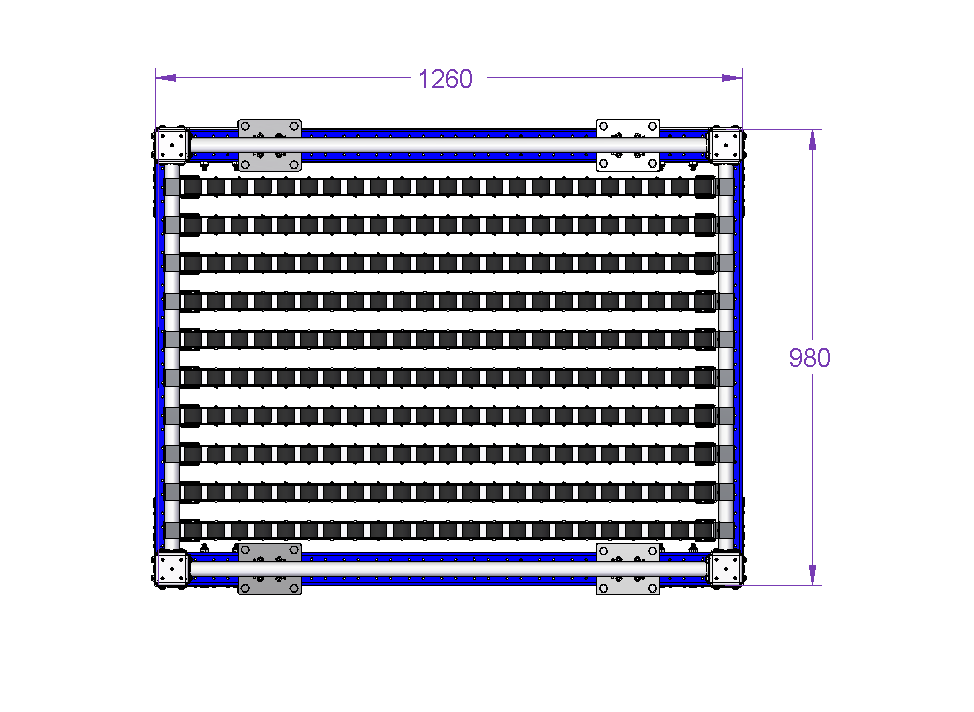

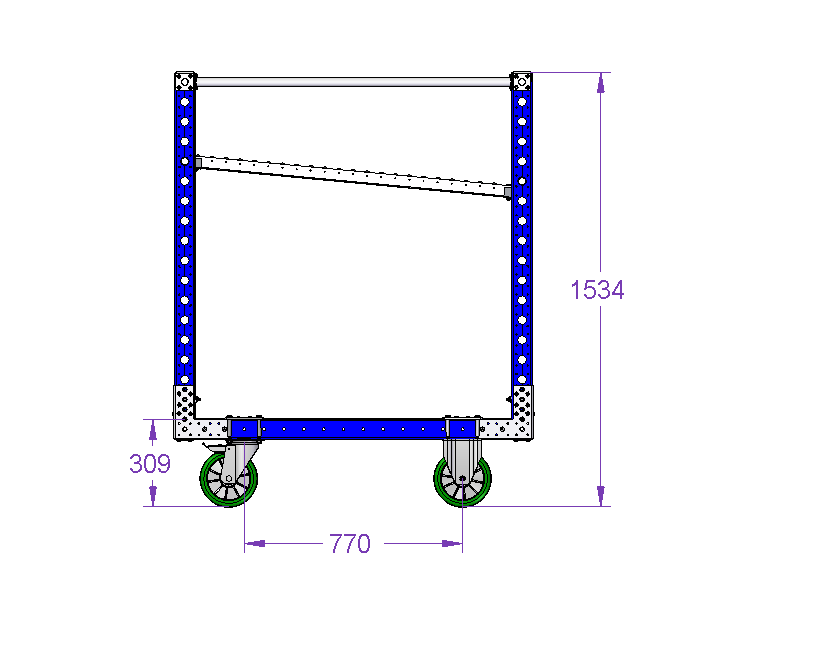

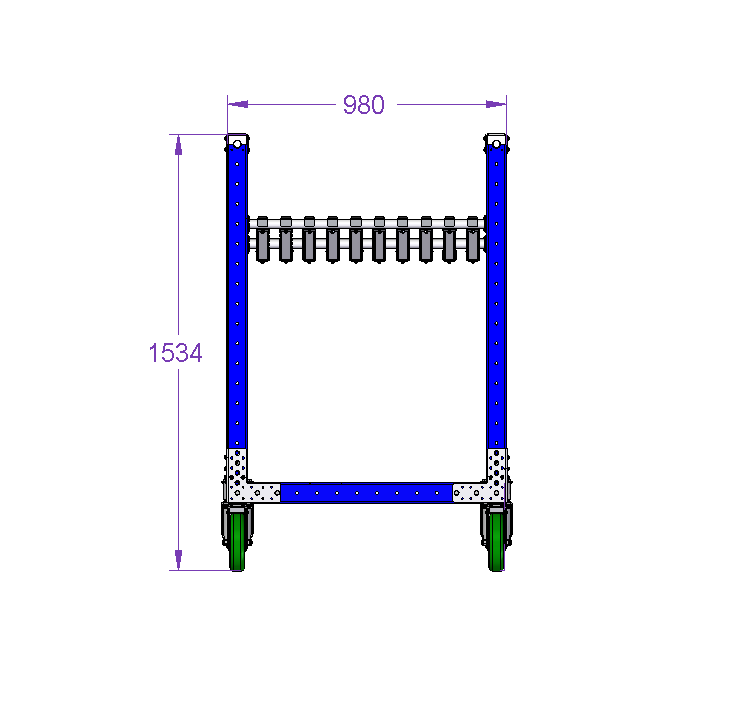

Roller Trolley 980 x 1260 mm

Custom designed trolley with a roller shelf for bins and boxes.

Technical specifications

Category: Flow Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 50 inch

Load capacity: 220 lbs

Width: 39 inch

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

More info

This cart is used for presenting materials to the operators along the assembly line. This cart comes with four polyurethane casters for easier movability.

Parts included

FlexTube™ 1120 mm 2 Q-000-1258

FlexTube™ 840 mm 2 Q-000-1398

FlexQube 4 Q-001-1078

FlexBeam™ 1190 mm 12 Q-001-1300

FlexBeam™ 980 mm FE 2 Q-001-1403

FlexPlate™ 12 Q-002-1001

RollerTrax Attachment 10 Q-003-0001

RollerTrax Attachment Drop Stop - 20 mm 10 Q-003-0002

Roller Rail - 1150 mm 10 Q-003-1051

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Caster Polyurethane 200 mm with Brake 2 Q-004-1099

Caster Polyurethane 200 mm Fixed 2 Q-004-1101

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 12 Q-005-1426

Locking Nut M10 40 Q-006-1042

Locking Nut M6 20 Q-006-1050

Round Head - M6 x 12 mm 20 Q-006-1051

Hex Head - M10 x 90 mm 16 Q-006-1132

Extra Low Head - M10 x 90 mm 12 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
