Q-100-0360

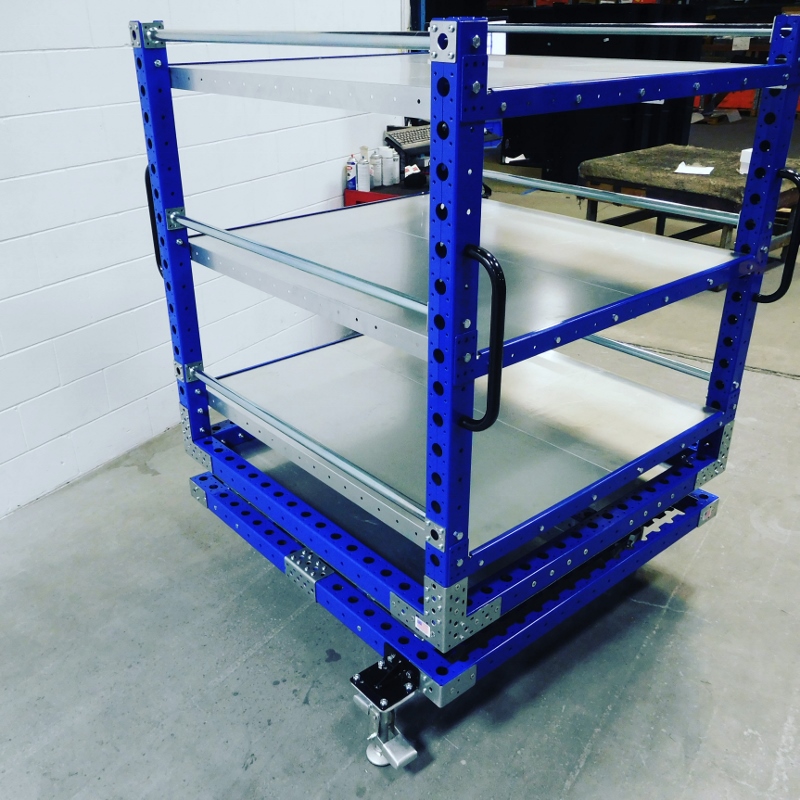

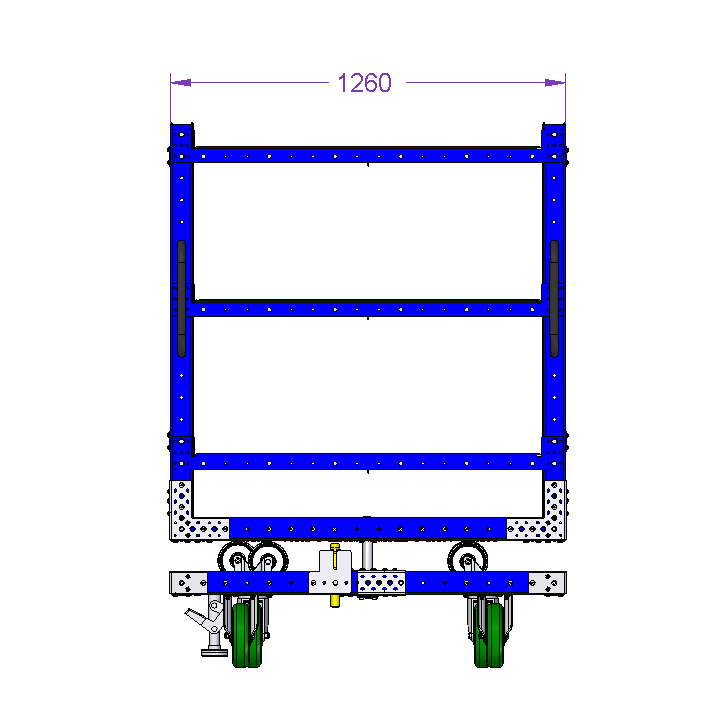

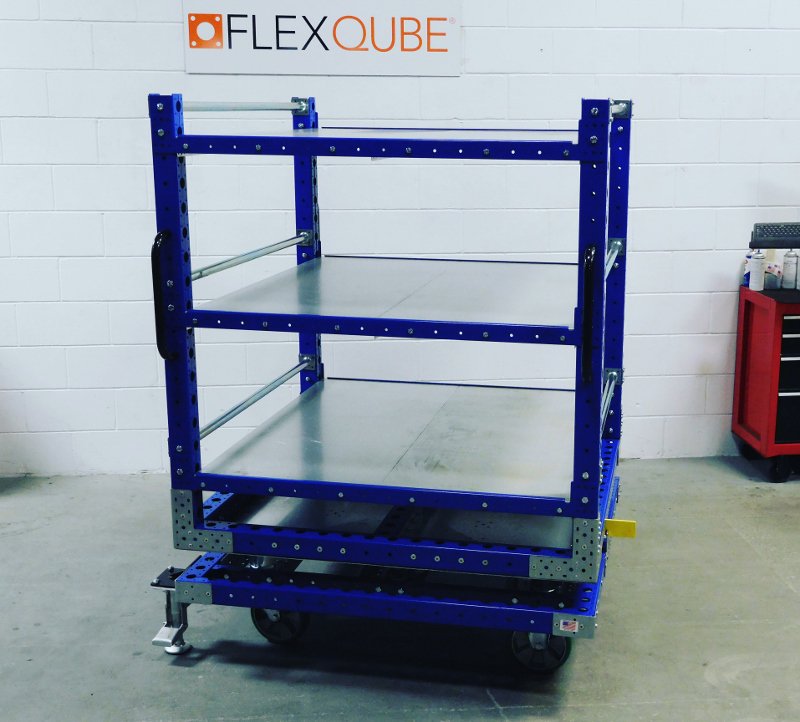

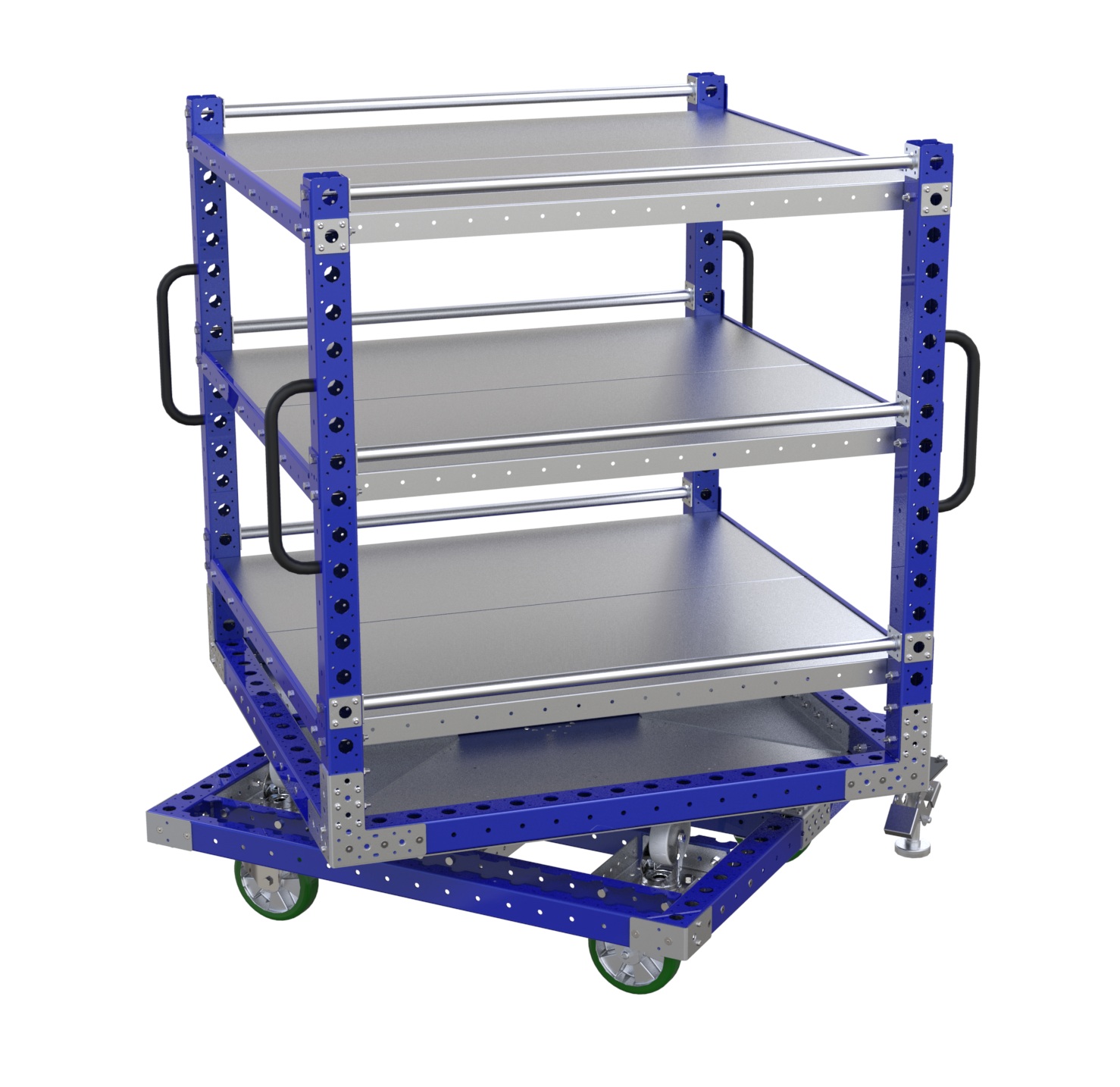

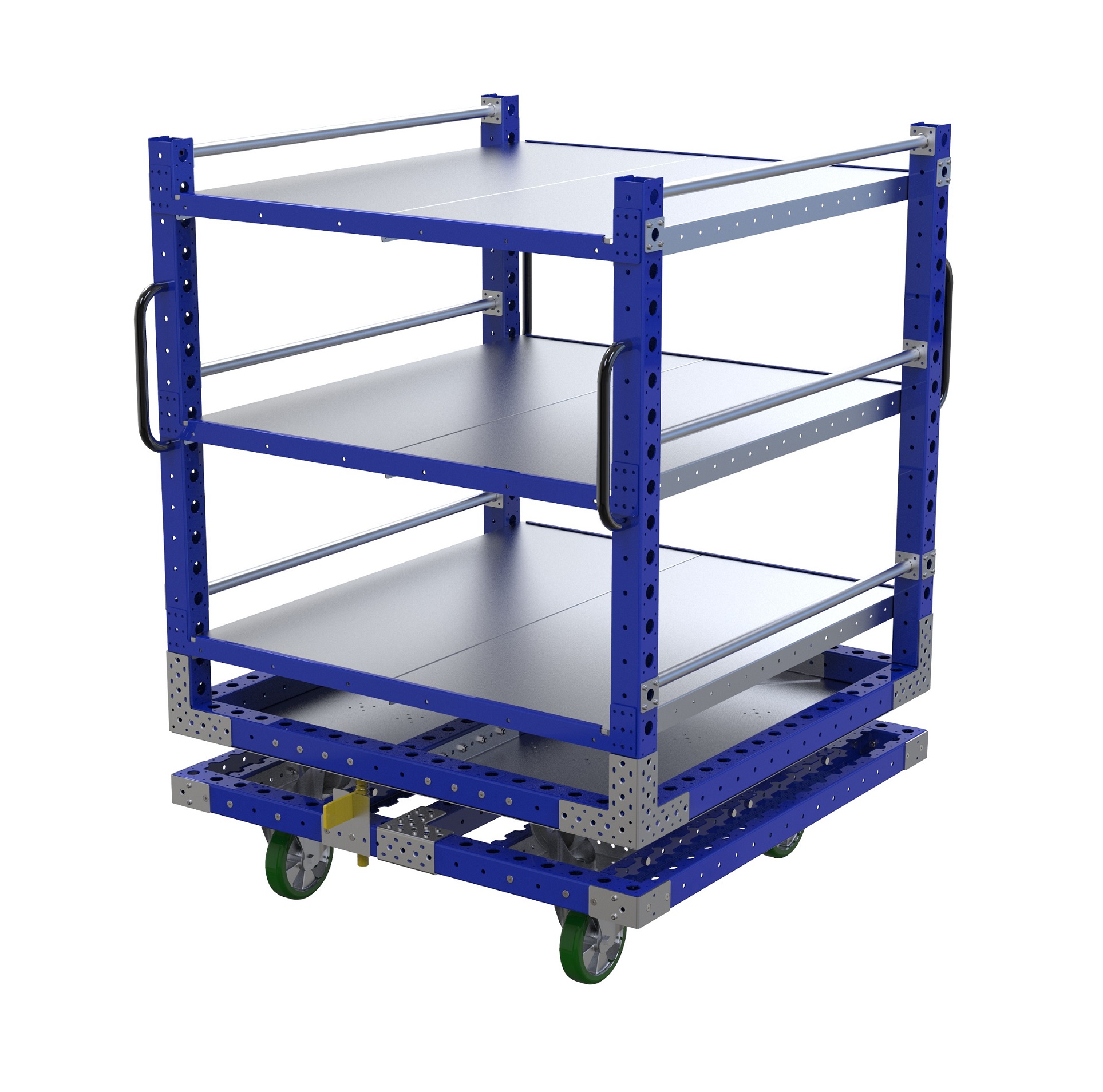

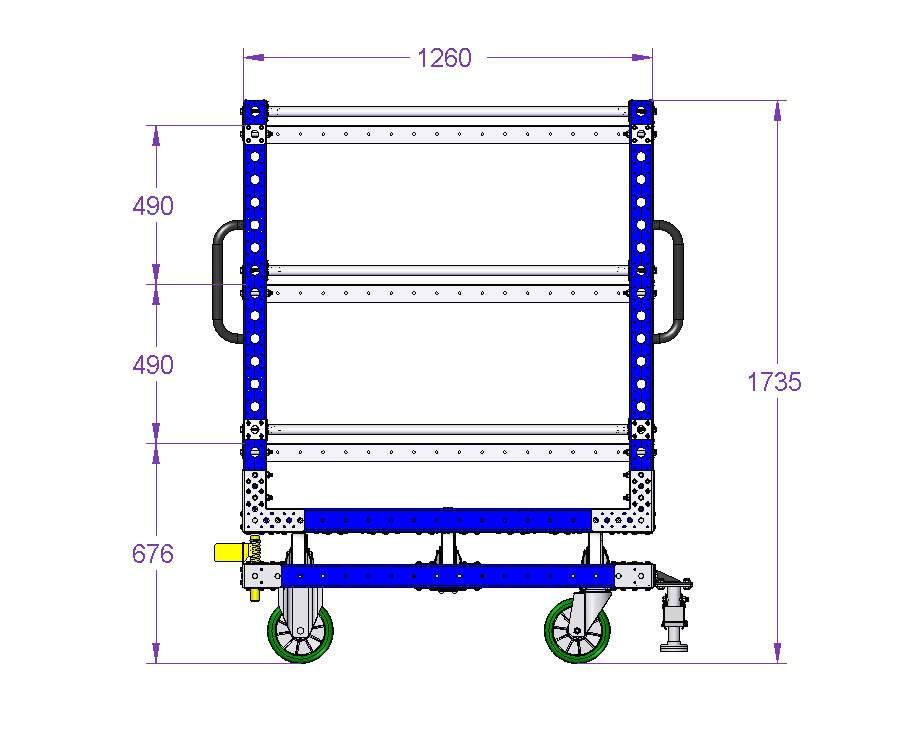

Rotating Shelf Cart 50 x 50 inch

Three level rotating shelf cart designed to be transported by an E-Frame. Equipped with a floor brake, handlebars and four polyurethane swivel casters.

Technical specifications

Transportation method: Manual

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Load capacity: 1001 lbs

Caster size: 8 inch

More info

Three level rotating shelf cart designed to be used in combination with an E-Frame. The cart is used next to the assembly area where the operator picks from one side at the time and rotates the top structure to gain easier access into the shelves. The cart is equipped with a floor brake, handlebars and four polyurethane swivel casters making it easy to maneuver in tight areas.

Parts included
Rotation Tube - 249 mm 1 Q-000-0047
FlexTube inner 210 1 Q-000-0060
FlexTube™ 1120 mm 6 Q-000-1258
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 6 Q-001-1401
FlexBeam™ 1260 mm FE 12 Q-001-1500
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ 30,5 mm hole 3 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Polyamide Caster - 125 mm 6 Q-004-1356
Floor Brake LTL - 200 mm 1 Q-004-1359
Rotation Lock Direction Plate 1 Q-005-0051
Wheel Attachment Box 6 Q-005-1079
Triangle Corner Plate 4 Q-005-1145
RTE Plug 12 Q-005-1289
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 44 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Rotation Lock 1 Q-005-2020
Allen Head - M6 x 30 mm 4 Q-006-1012
Fully Threaded - M10 x 120 mm 12 Q-006-1037
Hex Head - M10 x 25 mm 48 Q-006-1041
Locking Nut M10 166 Q-006-1042
Washer M10 5 Q-006-1043
Hex Head - M8 x 16 mm 68 Q-006-1120
Hex Head - M10 x 90 mm 21 Q-006-1132
Locking Nut M8 60 Q-006-1181
Hex Head - M10 x 100 mm 2 Q-006-1302
Extra Low Head - M10 x 90 mm 51 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 224 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 72 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 21 Q-006-1410
69 - 18 mm Spring for 25 mm tube 1 Q-012-1050
M8 Handlebar US - 350 mm 4 Q-015-1089
Rotating Top plate platform - 50 x 50 inch 1 Q-016-0174
Top Plate with edge - 560 x 1260 mm 6 Q-016-0175
Angled Plate - 1248 mm 6 Q-016-1238
