Shadow Board Cart - 64 x 48

Custom designed shadow board cart placed directly at the point of use to reduce waste and motion.

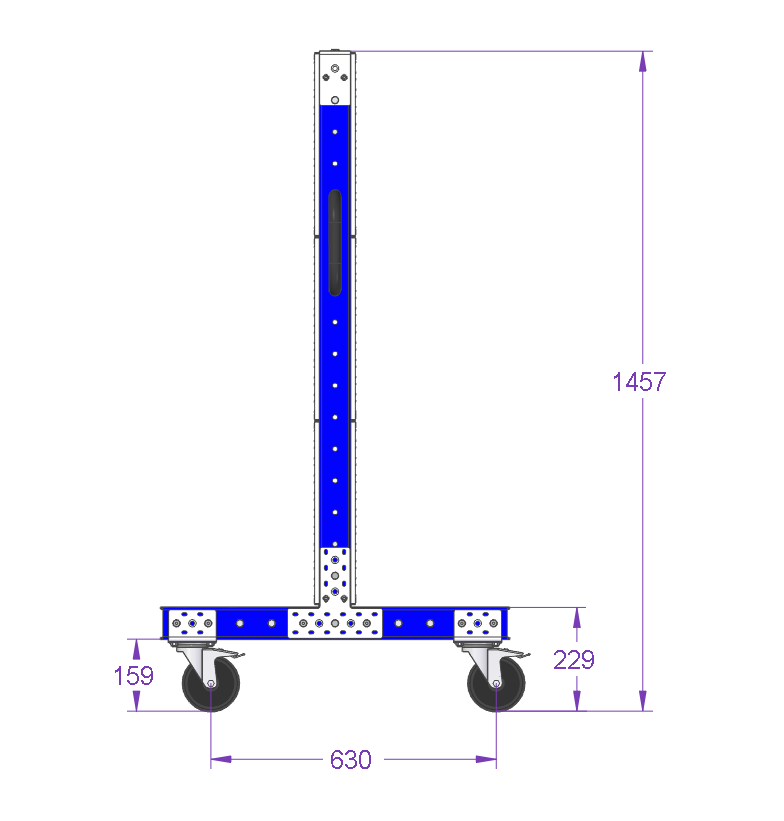

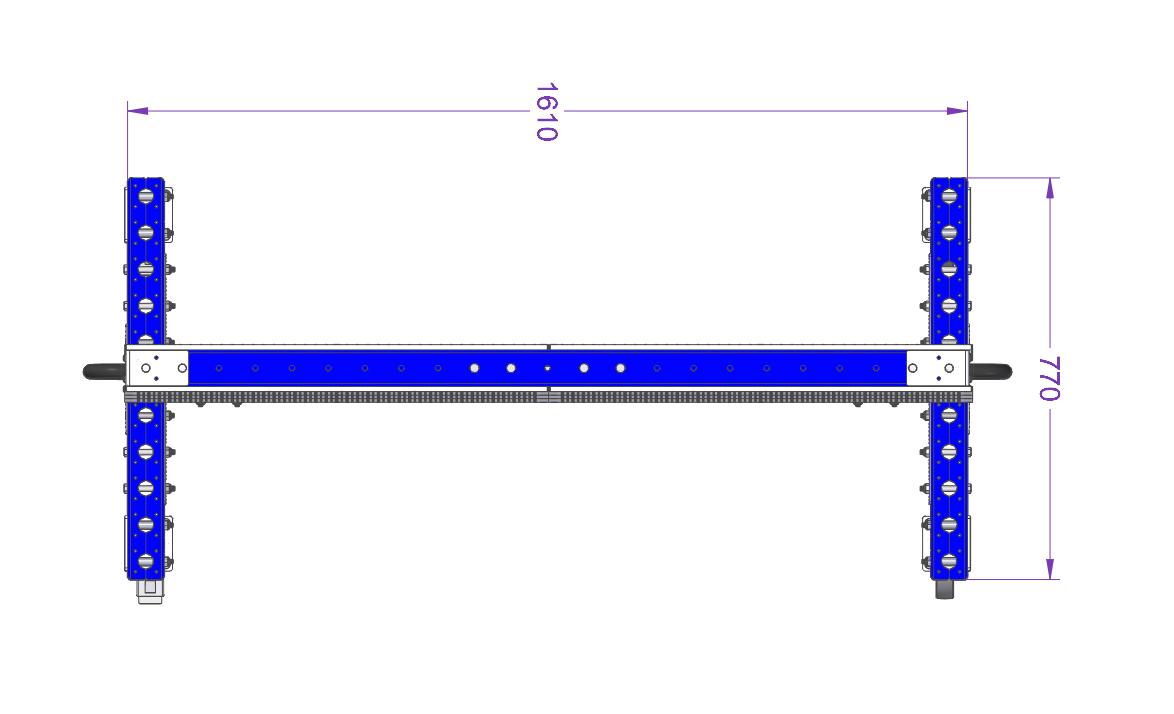

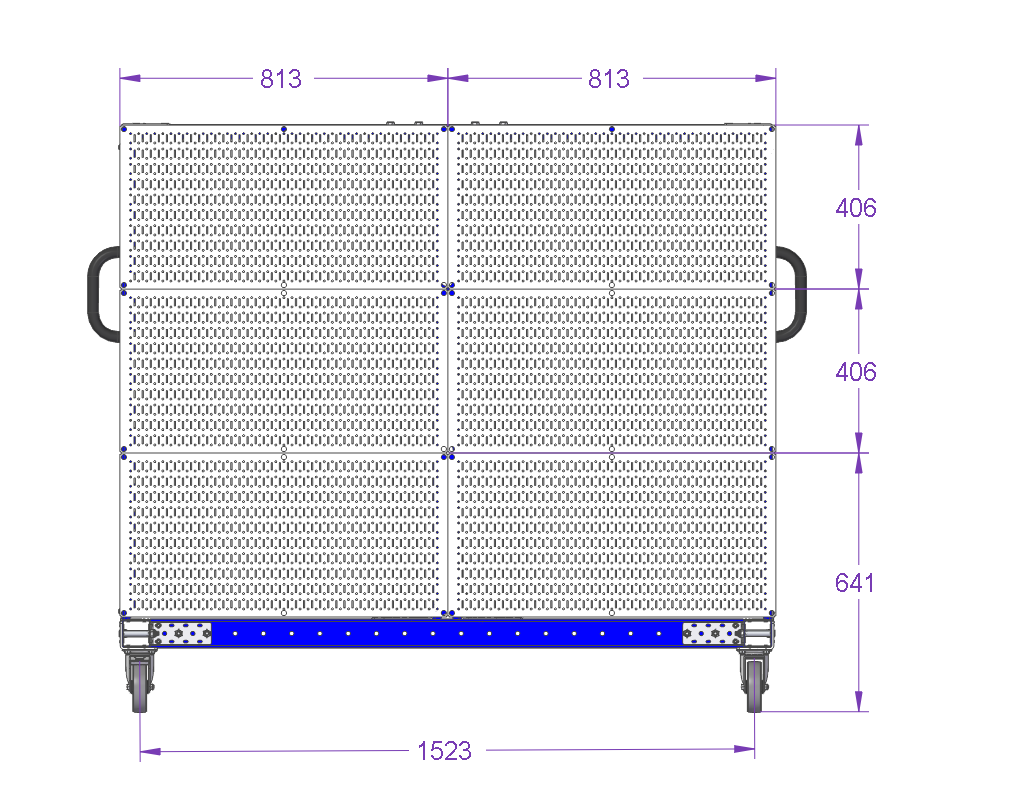

Technical specifications

Category: Hanging Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 30 inch

Length: 63 inch

Load capacity: 300 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Misc parts

More info

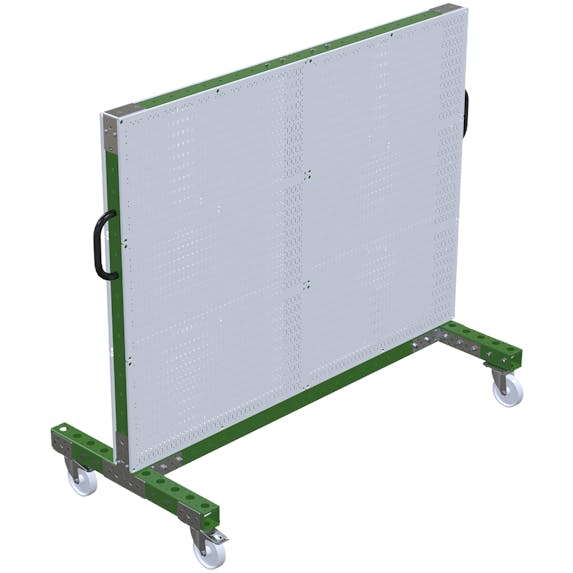

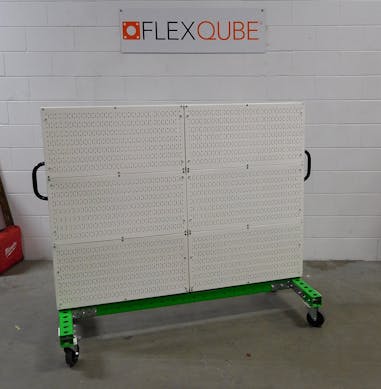

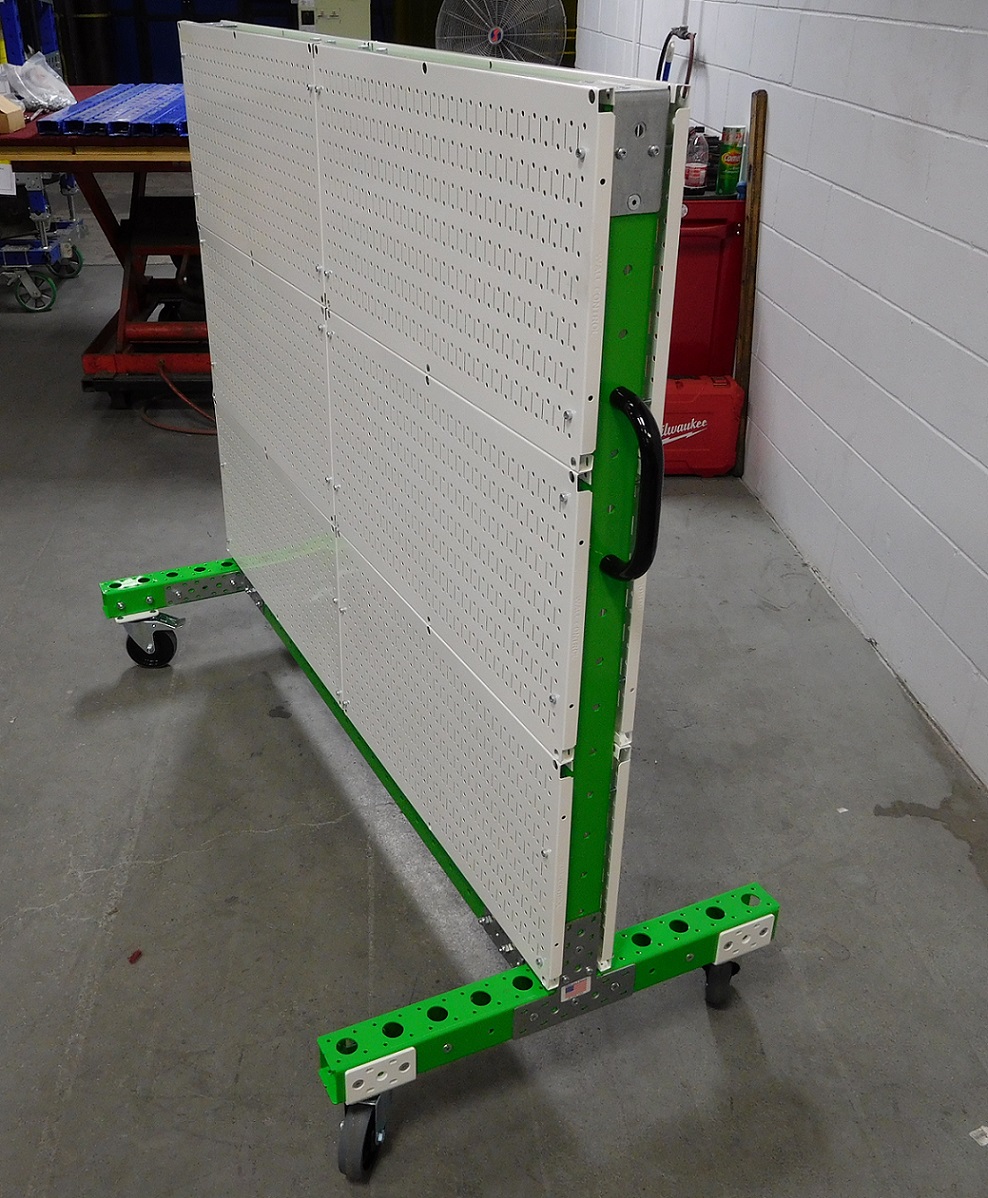

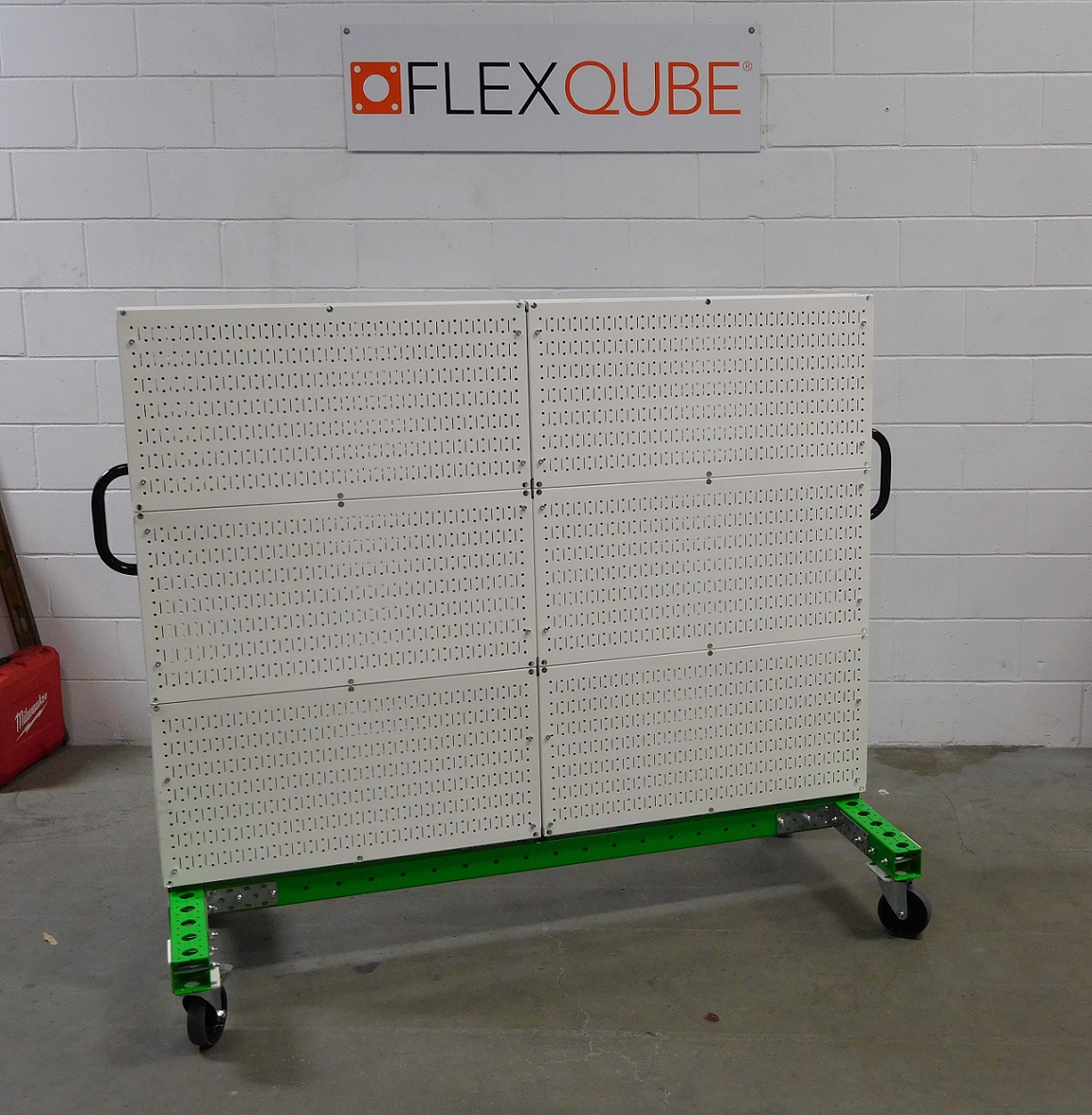

This large shadow board cart is designed for tools to be hung up on each side of the board. This is so the operators can access the tools at a more ergonomic height and is used along the assembly line. It comes with five swivel casters for easier handling.

Parts included
FlexBeam™ - 1470 mm 2 Q-001-1296
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 770 mm FE 4 Q-001-1406
FlexBeam™ - 1610 mm FE 1 Q-001-1505
Stiffener - Outside 2 Q-002-1050
Swivel Caster - 125 mm 2 Q-004-1363
125 mm Swivel Caster with Brake 2 Q-004-1364
L Bracket Joint 8 Q-005-0031
T-Joint 2 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
64 mm FlexBeam™ Collet 13 Q-005-1426
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 42 Q-006-1042
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 10 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Pegboard 32 x 16 inch 12 Q-016-0236
