Shadow Board Cart - 980 x 840 mm
Shadow Board Cart - 980 x 840 mm
Shadow Board Cart - 980 x 840 mm
Shadow Board Cart - 980 x 840 mm
Shadow Board Cart - 980 x 840 mm
Q-100-0486

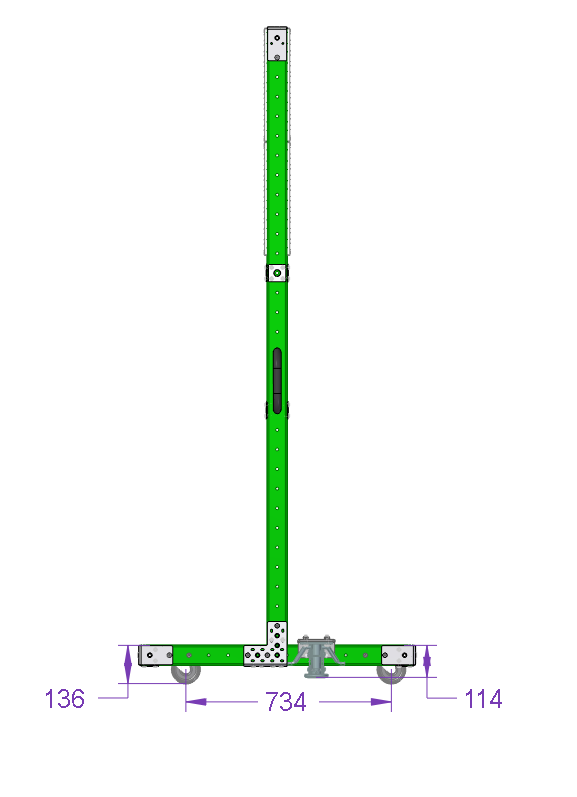

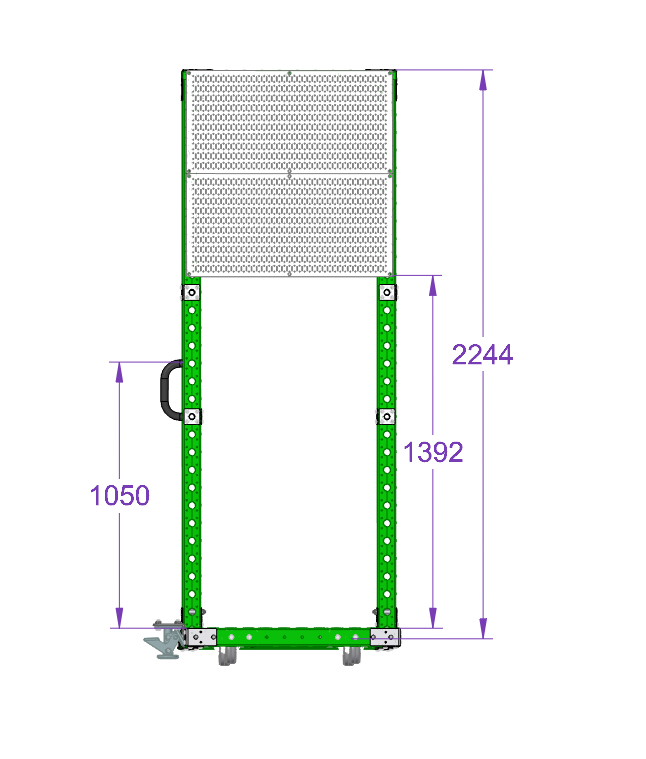

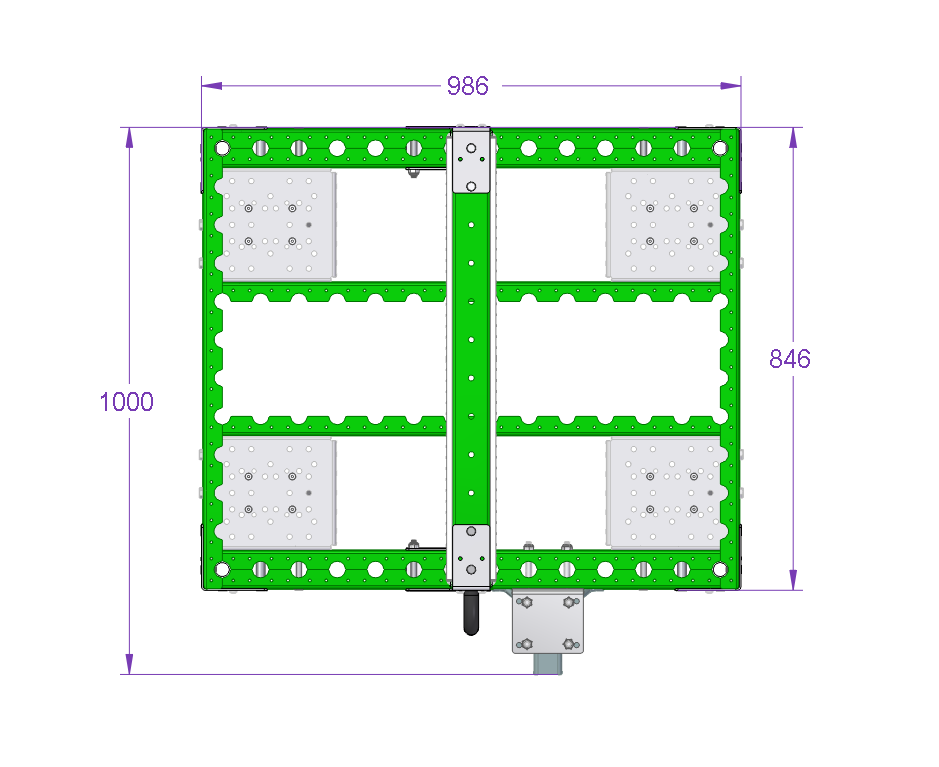

Shadow Board Cart - 980 x 840 mm

Custom designed shadow board cart.

Technical specifications

Category: Hanging Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 39 inch

Width: 33 inch

Load capacity: 99 lbs

Transportation method: Manual

Caster size: 3 inch

Caster Type: Nylon

Type of Load: Misc parts

More info

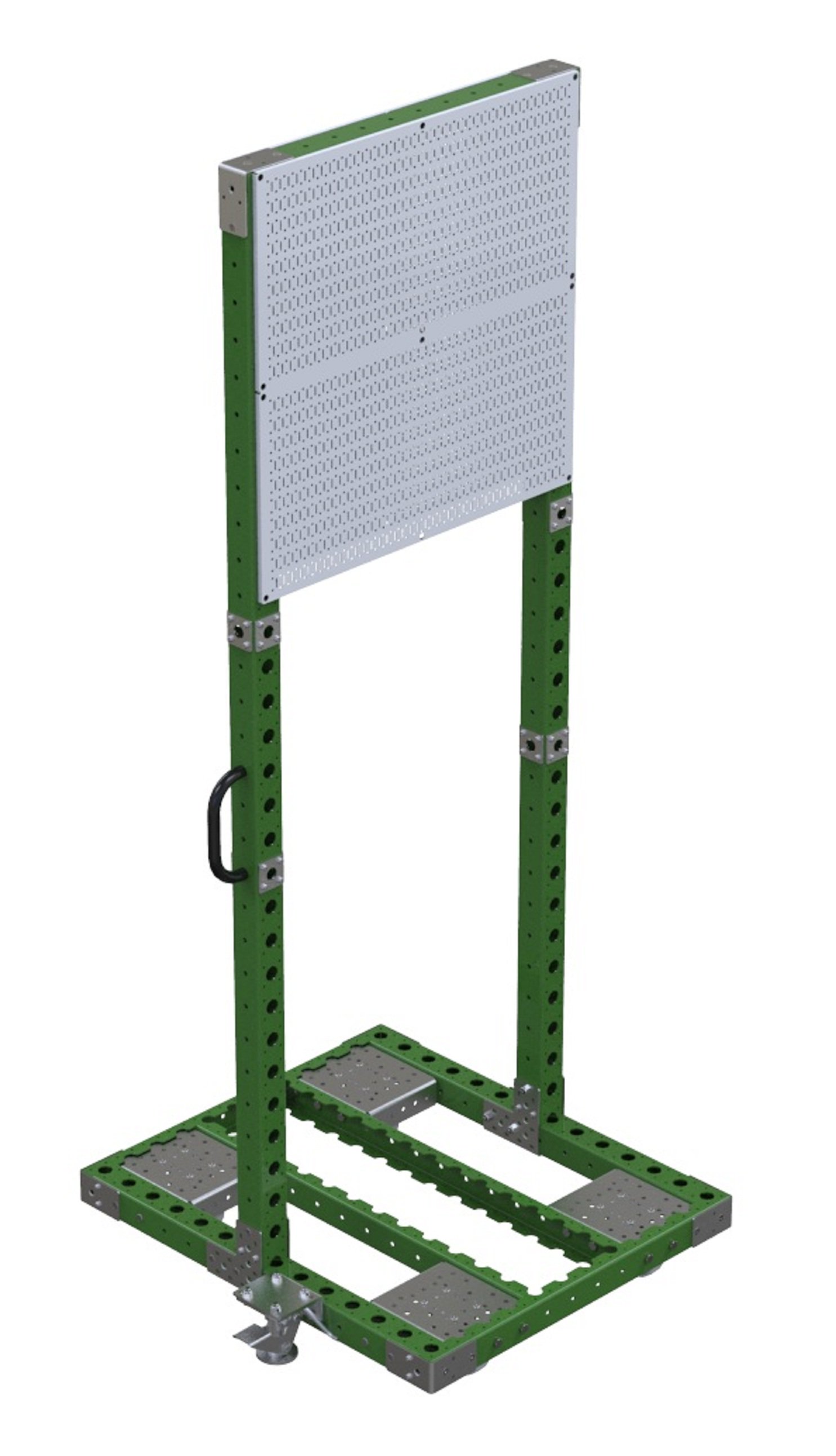

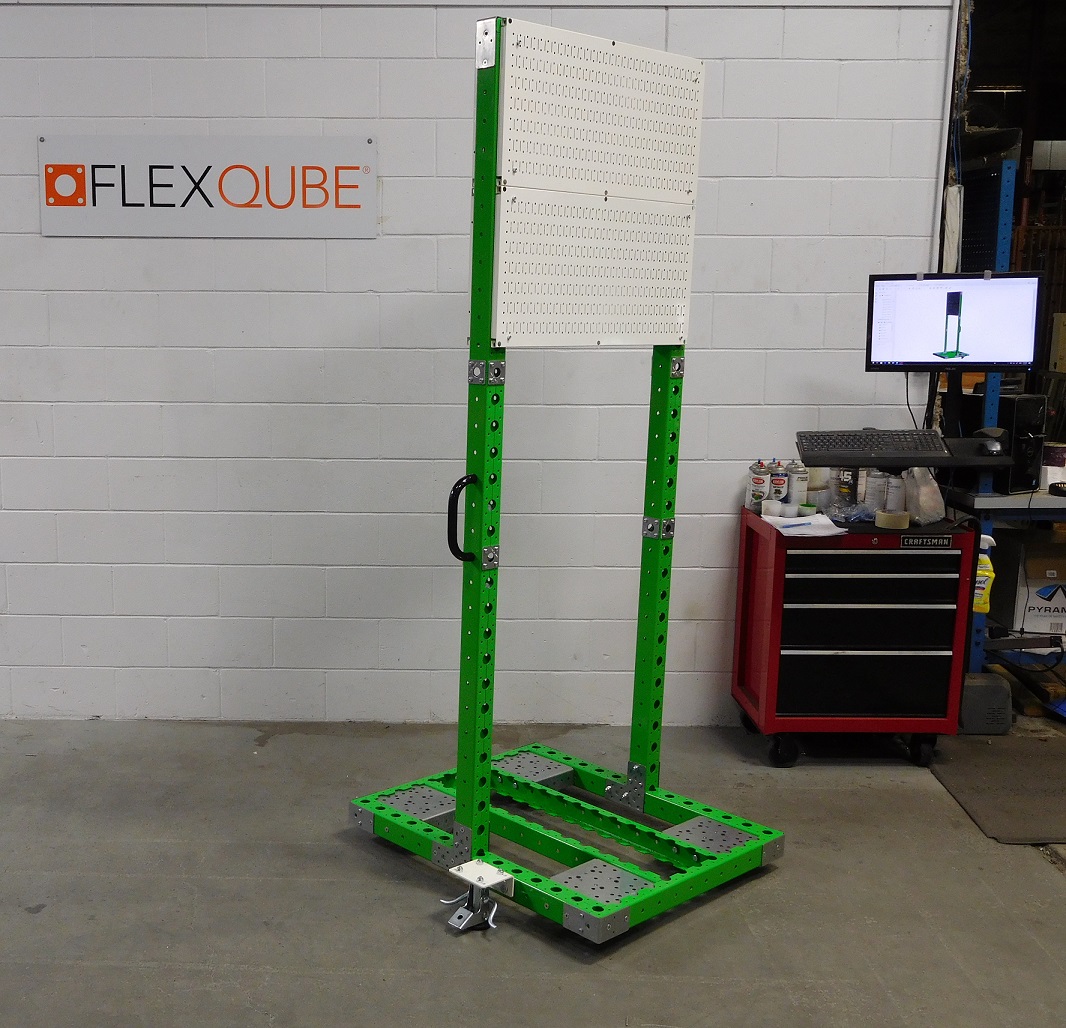

This shadow board cart is designed for tools to be hung up on each side of the board. This is so the operators can access the tools at a more ergonomic height and is used along the assembly line. It comes with five swivel casters for easier handling. This cart can be placed right at the point of use to reduce waste and motion.

Parts included
FlexBeam™ - 1330 mm 4 Q-001-1298
FlexBeam™ 910 mm 6 Q-001-1304
FlexBeam™ 840 mm 4 Q-001-1305
FlexBeam™ 840 mm FE 3 Q-001-1405
FlexPlate™ 16 Q-002-1001
Stiffener - Outside 6 Q-002-1050
Floor brake plate 1 Q-005-0275
Wheel Attachment Box 4 Q-005-1079
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 50 Q-006-1042
Washer M10 8 Q-006-1043
Hex Head - M8 x 16 mm 2 Q-006-1120
Hex Head - M10 x 90 mm 2 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 16 Q-006-1181
M8 Washer 2 Q-006-1183
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handle Bar 210 mm M8 1 Q-015-1037
Pegboard 32 x 16 inch 4 Q-016-0236
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
