Q-100-1108

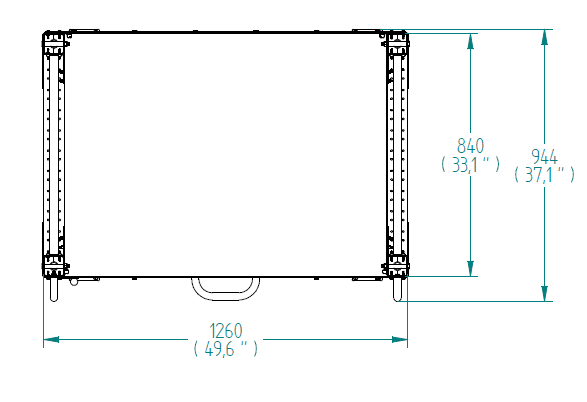

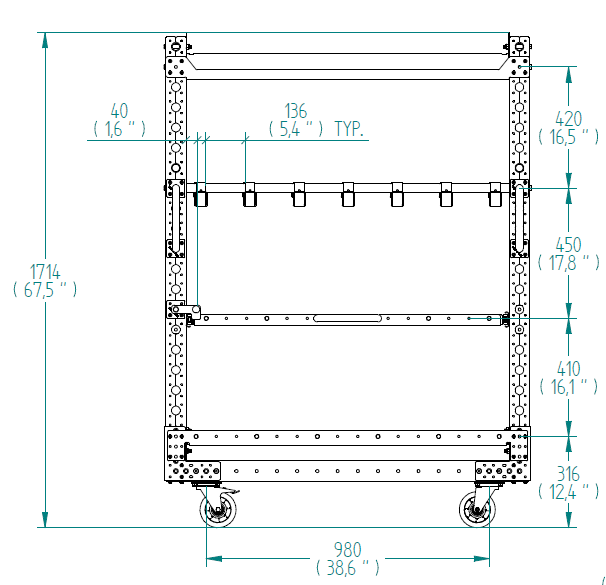

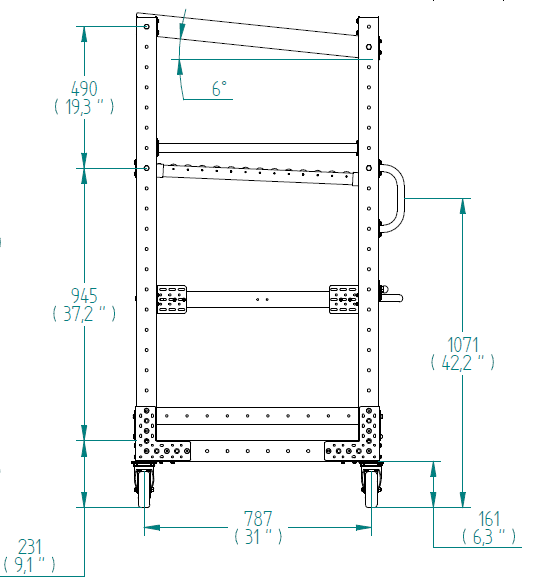

Shelf Cart - 1260 x 840 mm

This four-level shelf cart is designed with four different types of shelves and shows the flexibility of the FlexQube concept.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

More info

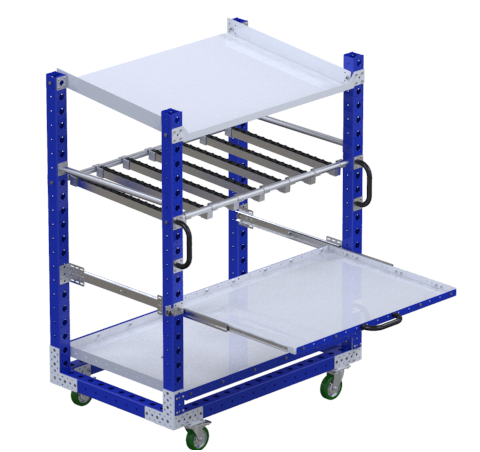

This shelf cart is a mixture of different applications. The bottom level is a flat shelf, the next level is an extendable shelf, then the next level is formed by rollers and the top level is a flow shelf cart. This is a perfect sample of the flexibility of our concept, allowing you to have different applications in the same cart according to the operations required. This cart is equipped with four polyurethane casters and two handles for easier manual operation.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ - 1470 mm FE 8 Q-001-1503
FlexPlate™ 14 Q-002-1001
Flexplate™ M10 5 Q-002-1162
Rail Support No Stop 7 Q-003-1021
Rail Support Drop 30 mm Stop 7 Q-003-1022
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Modular attachment plate for telescopic lists 4 Q-005-0149
5321-0070 Telescopic Slide 700 mm - Closed 2 Q-005-0261
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 4 Q-005-0469
Spherical Knob 1 Q-005-1146
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 32 Q-005-1426
Locking Handle Plate 1 Q-005-1880
M6 x 20 K6S 10.9 Round Head (black) 8 Q-006-1018
Hex Head - M10 x 25 mm 1 Q-006-1041
Locking Nut M10 33 Q-006-1042
Locking Nut M6 20 Q-006-1050
Round Head - M6 x 12 mm 12 Q-006-1051
Hex Head - M8 x 16 mm 28 Q-006-1120
Hex Head - M10 x 90 mm 8 Q-006-1132
Locking Nut M8 38 Q-006-1181
M8 Washer 28 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 138 Q-006-1384
Low Allen Head - M10 x 16 mm 1 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handle Bar 210 mm M8 3 Q-015-1037
Angled Plate for Telescopic Shelf - 1059 mm 2 Q-016-0121
Telescopic Shelf - 1080 x 830 mm 1 Q-016-0567
Flow Shelf - 1120 x 840 mm 1 Q-016-0575
Flat Shelf - 1119 x 840 mm 1 Q-016-1237
Angled Plate - 1248 mm 2 Q-016-1238
Outer Tube (No Plate) - 1120 mm 2 Q-025-1120
