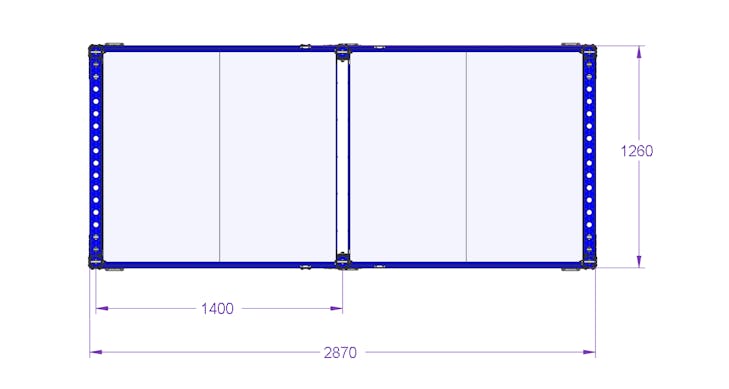

Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Shelf Cart - 2870 x 1260 mm
Q-100-0760

Shelf Cart - 2870 x 1260 mm

Large shelf cart for holding bins and boxes.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 113 inch

Levels: 4

Load capacity: 265 lbs

Load Capacity per Level: 66 lbs

Width: 50 inch

Transportation method: Manual

Caster size: 5 inch

Caster Type: Polyurethane

More info

This shelf cart is equipped with four large flat shelves. This cart is designed to hold many bins, totes and boxes. There are six high quality polyurethane casters attached to this cart.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm 16 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 28 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
T-Joint 4 Q-005-0065
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 22 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Locking Nut M10 45 Q-006-1042
Hex Head - M10 x 90 mm 20 Q-006-1132
Locking Nut M8 28 Q-006-1181
Countersunk - M8 x 20 24 Q-006-1282
Extra Low Head - M10 x 90 mm 26 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 238 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Akyboard Flat Shelf - 1225 x 660 mm 16 Q-016-0358
Attach Plate Akyboard - 1330 mm 16 Q-016-0359
Plastic Shelf Side Support - 1120 mm 14 Q-016-0372
